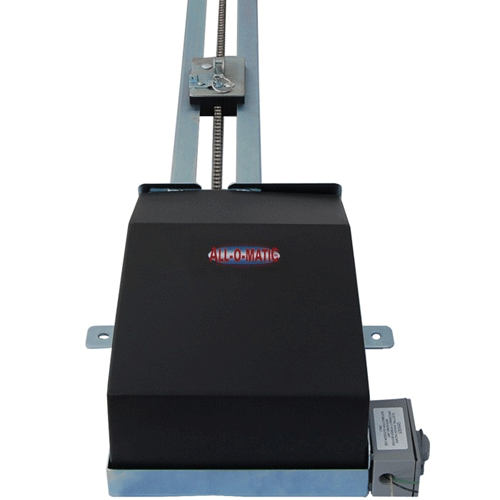

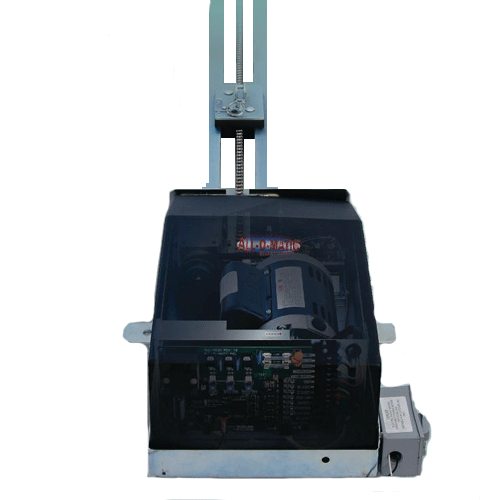

All-O-Matic OH200 AC Overhead Door Operator (10ft Rail)
The All-O-Matic OH200 AC is a commercial gate operator for overhead tilt up gates that are up to 10 ft tall. You will see this operator quietly operating gates for underground parking facilities and apartment/condo buildings. AC operators come with simple and dependable control board that's backwards compatible. All of these features along with many more help make the All-O-Matic OH200 AC one of the premier openers in the industry.
Limited Warranty 7 Year Residential, 5 Year Commercial

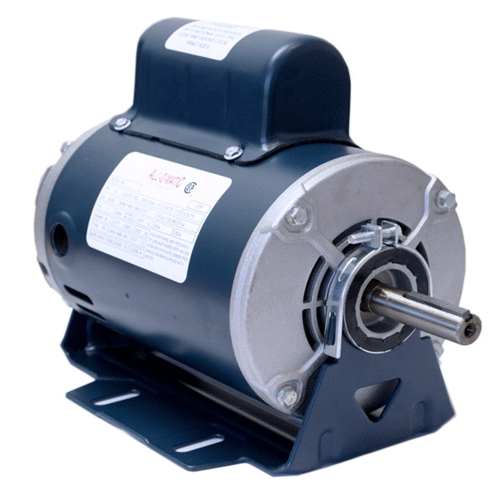

Motor ½ HP
Duty Cycle Continous
Power Options 120 V AC

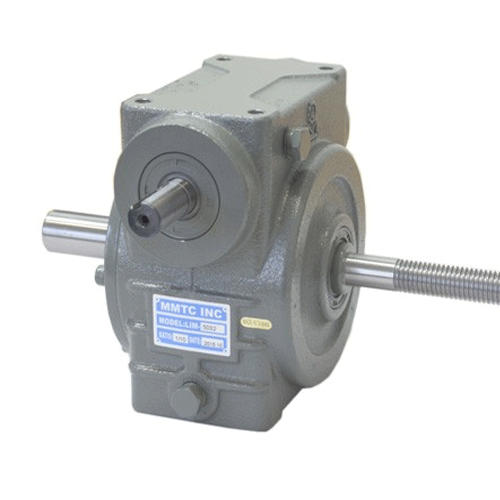

Gear Box Ratio 40:1 Ratio
Cover Rotationally Molded – Indestructible

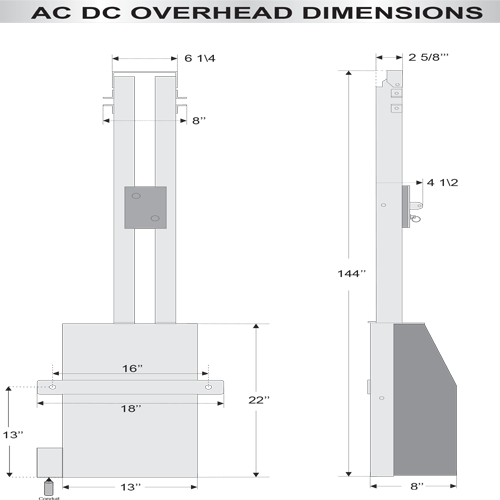

Dimensions W: 13" – L: 144" – H: 8" , Also available in custom rail lengths
Maximum Gate Length 16 Feet
Maximum Gate Weight 800 lbs
Gate Travel Speed Full Cycle in 20s (6'-6" to 8' gate)
Emergency Release Options Lockable Quick release Drive Arm and Carriage Battery Backup Compatible
The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner. Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
