All-O-Matic SL-100 DC FP Slide Gate Opener
- Max gate size: 45ft
- Max gate weight: 2,000 lbs.
- This model has a foot pedal release
The All-O-Matic Sl-100 DC Slide Gate Opener was designed to be one of the strongest and most durable slide gate openers in the industry. The SL-100 has been the first in the industry to utilize technology like a brushless motor (no maintenance, high torque, and smooth quiet operation). This SL-100 DC Slide Gate Opener has a built in loop detector rack, and can operator all of the accessories from battery power. This operator is built with a heavy duty frame and long lasting parts, and it comes with one of the best warranties in the industry. This slide gate operator is also available with a manual foot pedal release. The All-O-Matic SL-100FP DC is available as an option when you add item to your cart.
- Emergency Release: Foot pedal
- Limited Warranty: 7 year Residential/ 5 Year Commercial

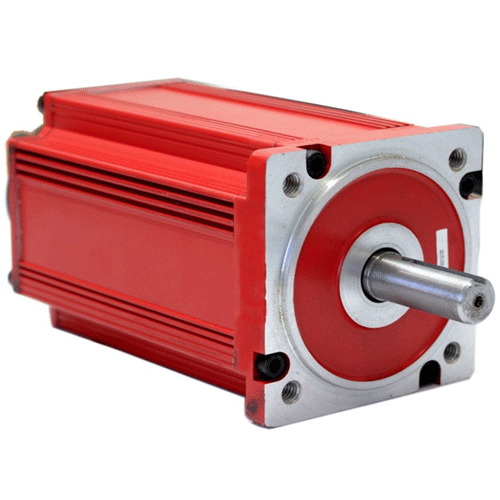

- Motor: 24 VDC Brushless 1/2 HP Motor
- Maximum Gate Weight: 2,000 lbs
- Maximum Gate Length: 45 Feet
- Power Options: 115/230 VAC Single Phase and 12/24 VDC Solar Panel
- Duty Cycle: Continous Cycle

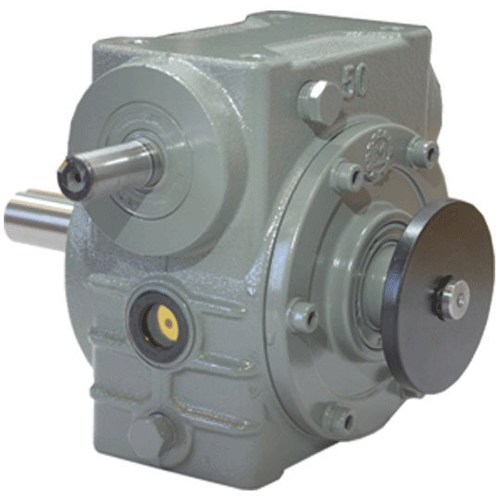

- Gear Box Ratio: 10:1

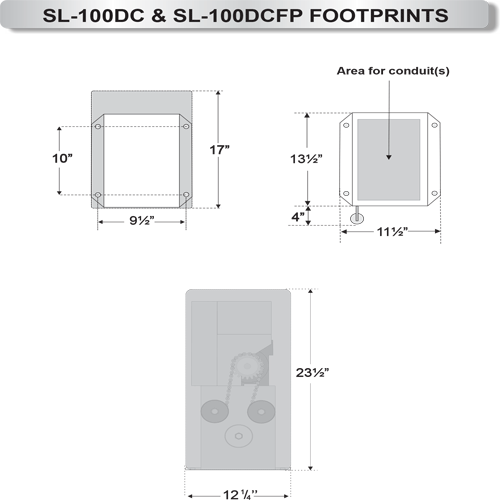

- Width: 12"
- Length: 17.5"
- Height: 23.5
- Gate Travel Speed: 12 inches per second

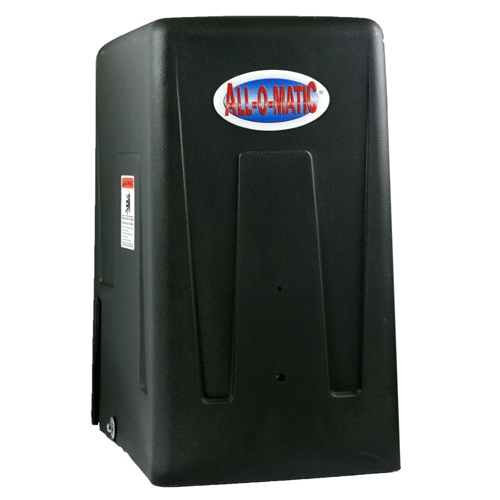

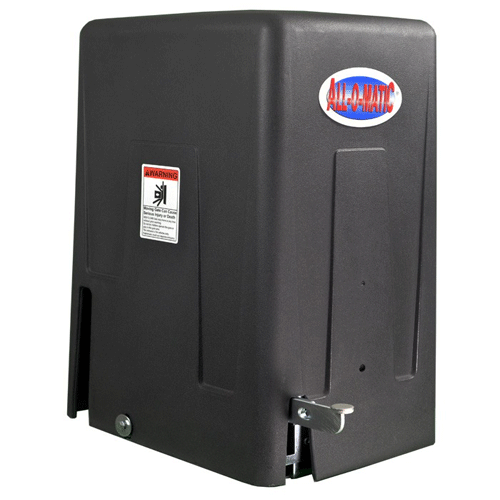

- Cover: Rotationally Molded – Indestructible
- Emergency Release Options: Optional: Mechanical Foot pedal Release
- Battery Backup: Integrated, with Two 7 Ah Batteries 12VDC
- Battery Backup Capacity: Up to 80 Cycles on a 1,000 lbs Gate
- Solar Capabilities: 12VDC or 24VDC Solar Panel Input
- Belt Size: 4L-300
- Main Sproket Size: 41B22X7/8
- Limit Shaft Sprocket :N/A
- Breaker Requirement: 20 Amp Dedicated Breaker
- Temperature Range: -40 to 160°
