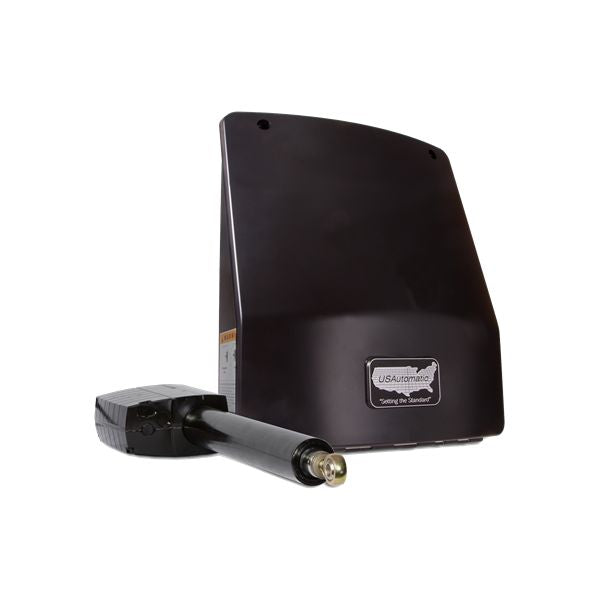

US Automatic Ranger Swing Gate Opener with A/C Charging System

US Automatic

$835.97
SKU: us-automatic-ranger-1-ac

The Ranger for swing gates up to 13 feet 400 pounds. Package includes 1- Arm, 1- Control Panel and 1- A/C Charger

• 3 Year Warranty
The Ranger series of gate operators is full of innovative design changes and is defining the next generation of low voltage DC gate operators in the industry.
Introducing Quick connect harnesses for all standard components, industry first limit switch technology (patent pending), AC charger included with all operators and external reset.

Linear actuator design allows for mounting in 2 different positions making it easy to hide behind a cross member in the gate which improves the aesthetic appeal.

Ranger solar performance is exceptional and unmatched in the industry, offering up to 65 cycles per day on the standard 6 watt solar panel with a full complement of solar friendly accessories and photo eyes for safety installed.

Made in the USA
Warranty 3 years on all components
2 - LCR 2 button transmitters Included
Pre-wired solar friendly LCR dual channel receiver
Solar or AC charged with solar friendly smart controller
Designed to operate with all types of solar friendly accessories without adding solar panels
Independent Gate 1 and Gate 2 sensitivity adjustments
Battery powered providing real battery backup. Not just 1 cycle
Built in timer to close
Photo Eye Power Management (PEPM) solar friendly software
For residential, light commercial, farm and ranch use
Danaher 16” Linear actuator delivering 400 lbs of dynamic thrust and a static hold load rating of 1000 lbs
Single or Dual gate compatible
Dual gate kit includes water tight junction box and wire nuts with 35 feet of cable.
Hinged control box cover
Bolt on kit option is available
