Securitron GL1-FL-GMC Gate Lock with 2000lbs. Gate Lock Mortise Cylinder

Securitron GL1-FL-GMC Gate Lock with 2000lbs. Gate Lock Mortise Cylinder
Securitron GL1-FL-GMC Gate Lock with 2000lbs. Gate Lock Mortise Cylinder

Securitron GL1-FL-GMC Gate Lock with 2000lbs. Gate Lock Mortise Cylinder

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $364.97
/
Shipping calculated at checkout.

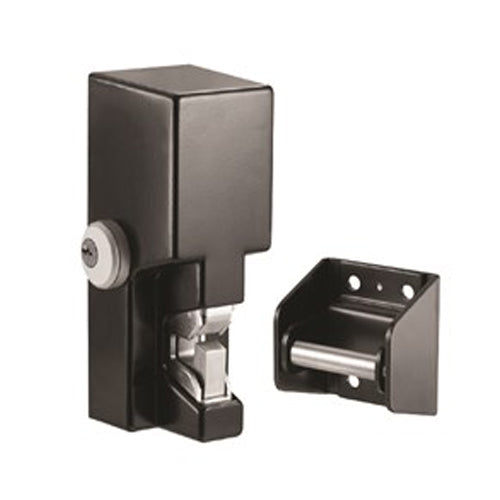

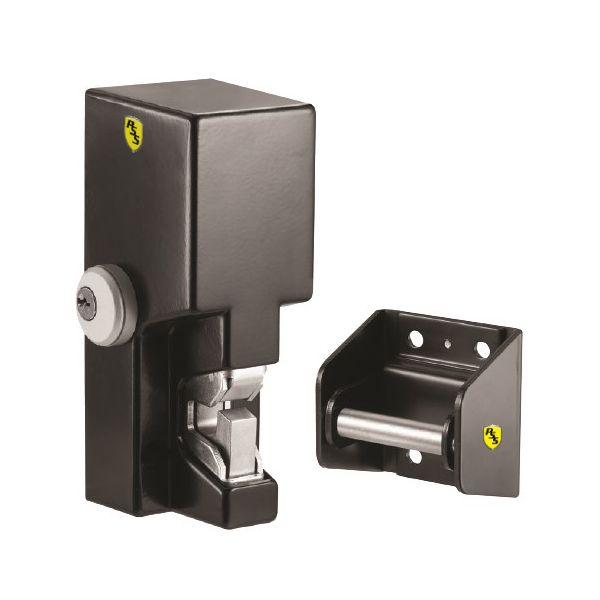

Securitron GL1-FL-GMC Gate Lock

2000lbs. Holding Force, Fail Locked Operation and Gate Lock Mortise Cylinder. An electromechanical Gate Solution Offers One Ton of Holding Power

The heavy duty GL1 electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.

Specifications

  • Holding Force: 2000lbs [907kg]
  • Dimensions: 2-3/4"L x 7-1/4"W x 3-1/4"D
  • Electrical: 12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
  • Consumption: 3.5 Watts 24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power
  • Consumption: 4.1 Watts
  • Operating temperature: -58 to +167F [-50 to +75C]
  • Indoor or outdoor use
  • Finish: Black Finish

Product Features

  • 2,000 lbs holding force
  • Operates under preload up to 100lbs
  • Automatic dual voltage - no field adjustment required
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
  • Self-aligning receiver (+/- 1/2" horizontally) helps compensate for gate misalignment and sag
  • Tamper resistant cast housing
  • Optional latch status monitor
  • Surface mount

Securitron GL1-FL-GMC Gate Lock

2000lbs. Holding Force, Fail Locked Operation and Gate Lock Mortise Cylinder. An electromechanical Gate Solution Offers One Ton of Holding Power

The heavy duty GL1 electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.

Specifications

  • Holding Force: 2000lbs [907kg]
  • Dimensions: 2-3/4"L x 7-1/4"W x 3-1/4"D
  • Electrical: 12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
  • Consumption: 3.5 Watts 24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power
  • Consumption: 4.1 Watts
  • Operating temperature: -58 to +167F [-50 to +75C]
  • Indoor or outdoor use
  • Finish: Black Finish

Product Features

  • 2,000 lbs holding force
  • Operates under preload up to 100lbs
  • Automatic dual voltage - no field adjustment required
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
  • Self-aligning receiver (+/- 1/2" horizontally) helps compensate for gate misalignment and sag
  • Tamper resistant cast housing
  • Optional latch status monitor
  • Surface mount
