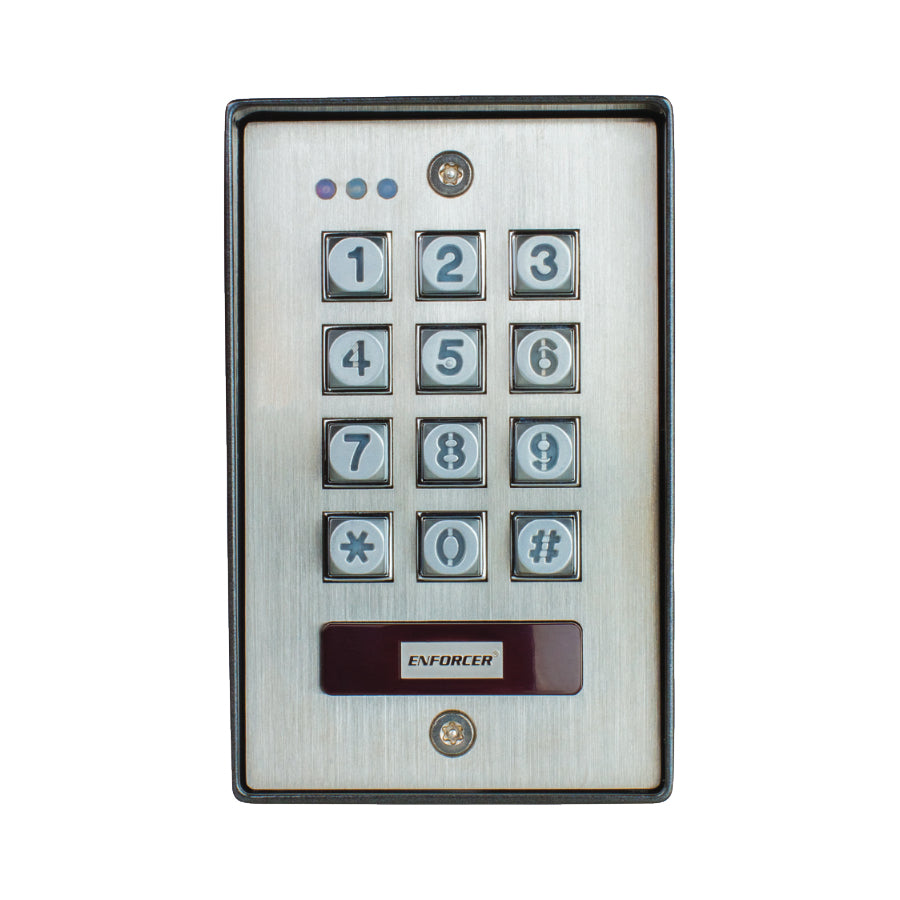

Seco Larm SK-1123-SPQ Vandal Resistant Keypad

Surface-Mount Outdoor Illuminated Stand-Alone Keypad with proximity reader. Weather resistant and vandal resistant. 1100 Users, two outputs, 12~24 VDC/VAC operation. Includes duress, quick code, wrong-code lockout, smart egress input, visitor codes, three LEDs, built-in buzzer, and back box.

Features

• Built-in proximity reader. 125kHz (EM125)
• 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code
• 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users
• Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Super user code gives admin access to keypad
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Programmable egress input with optional warning alarm and delayed egress
• Real-time clock to auto-disable access at specific times
• Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• 12~24 VDC/VAC Auto-adjusting operation
• All features are programmed directly from the keypad: No need for an external programmer
• IP66 Weatherproof rating
• Mounts to a standard single-gang back box (surface-mount back box included)
• Durable and attractive stainless steel faceplate
• Tamper output: N.C. Dry contact, 50mA@24VDC max.
• Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode
• Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time
• Door sensor input for anti-tailgating operation
• Door-propped-open warning
• Door-forced-open warning
• EEPROM Memory protects programmed information in case of power loss
