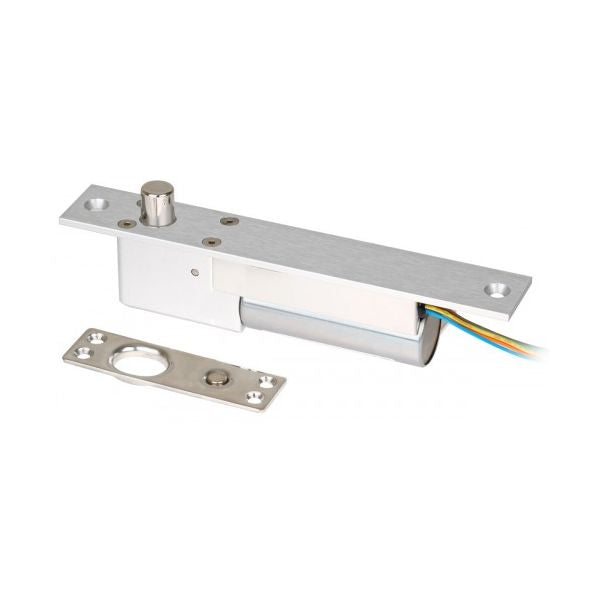

Seco Larm SD-997B-GBQ Electric Deadbolt

Fail-safe Electric Deadbolt, for concealed deadbolt security. Door unlocks when power is lost. Dual voltage: 12/24 VDC.

SECO-LARM Electric Deadbolts add concealed deadbolt security with the added convenience of electrical operation. They are suitable for most wood or hollow metal doors although not recommended for use with wooden door frames.

Features

• Stainless steel bolt, 5/8" diameter, 5/8" throw
• Fail-safe operation (unlocks if power is lost)
• Magnetic switch senses door position for positive locking
• Includes control wire which allows for releasing without cutting unit's power
• Attempts to relock multiple times and then shuts off if the door is not closed properly to prevent solenoid from burning out. Once door is closed properly, will automatically lock
• Over-current protection 1.5A
• Door open/close monitor (NO/NC/COM)
• Adjustable door lock delay timer (0, 2.5, 5, or 9 seconds)
• Use with an optional digital keypad for high security without a key. Easily connects to SECO-LARM Digital Keypads
• Suitable for office-type applications
• Shallow design for use with most metal door jambs
• Multi-directional horizontal or vertical mounting
• Powered by a solenoid
• Stainless steel for strength and long life
• Plug: Special conic cavity stainless steel
