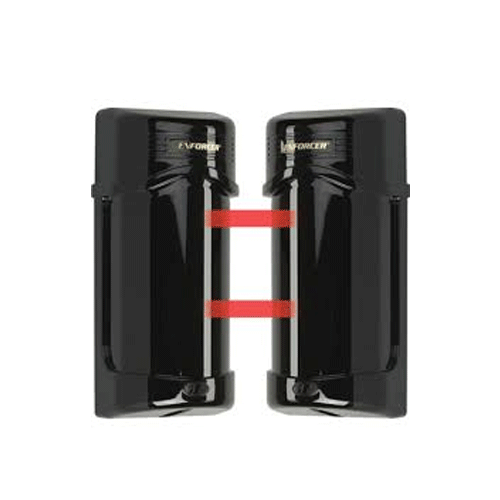

Seco-Larm Enforcer E-960-D90GQ Monitored Long Range Photo Beam Detectors

Seco Larm

SKU: seco-larm-e-960-d90gq

ModelE-960-D90GQE-960-D190GQE-960-D290GQE-964-D390GQMax. range (outdoor)90' (30m)190' (60m)290' (90m)390' (120m)Max. range (indoor)190' (60m)390' (120m)590' (180m)790' (240m)Current (max)150mAPower12-30V DC/AC 60Hz, 200mA (non-polarized)Detection methodSimultaneous break of 2 beamsInterrupt speed10msecTrigger outputSPDT NO/NC/COM relay, 1A@30 VDC/VACTamper outputN.C. switch, 1A@30 VDC/VACLEDsRedON indicates transmitter and receiver not aligned or bream is brokenYellowON indicates weak receiver signal or beam is brokenGreenON indicates unit connected to powerLaser wavelength650nm.Laser output power<5mW.Alignment angleHorizontal (+/-)90º, Vertical: (+/-)5ºOperating temperature-13º~+131º F (-25º~+55º C)Weight2.5-lb (1.1kg)CasePC Resin
