Multi-Code 302101 - 2-Channel Heavy Duty Gate Receiver

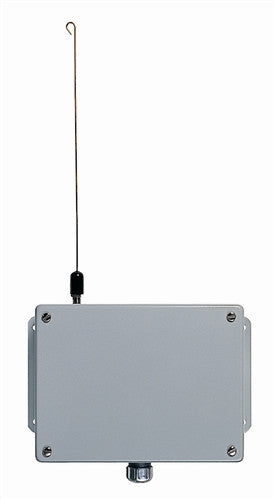

The Multi-Code 302101 2-Channel Heavy-Duty Gate Receiver is designed for use in gate operator applications. The receiver is housed in a heavy-duty metal cabinet. The cabinet meets NEMA 13 and JIC specifications and features a sealed strain relief bushing for wiring. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. An external Model 106603 Remote Whip Antenna can also be used with this receiver in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing.
The operator supplies 24 volt AC or DC power to the receiver. The two Form C relay outputs can switch up to 1 amp @ 30 VAC.
The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator. Transmitter switch #10 selects which receiver channel will activate.ters only.
- Operates on 24 volts AC or DC power
- Two channels
- Whip antenna
- Codes: 512 (set by dip switches)
- RF frequency: 300 MHz
- Dimensions: 6" W x 8" H x 4" D
