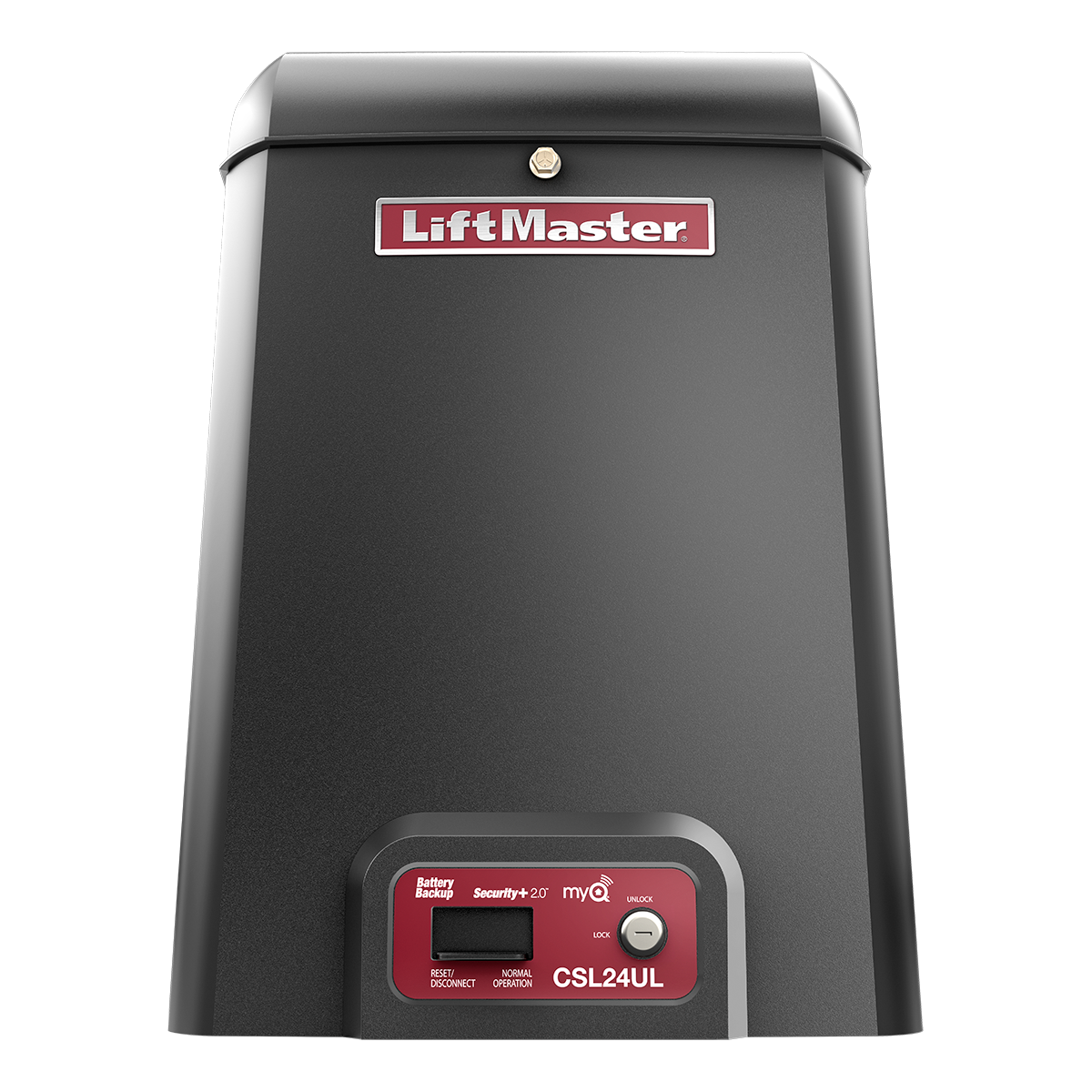

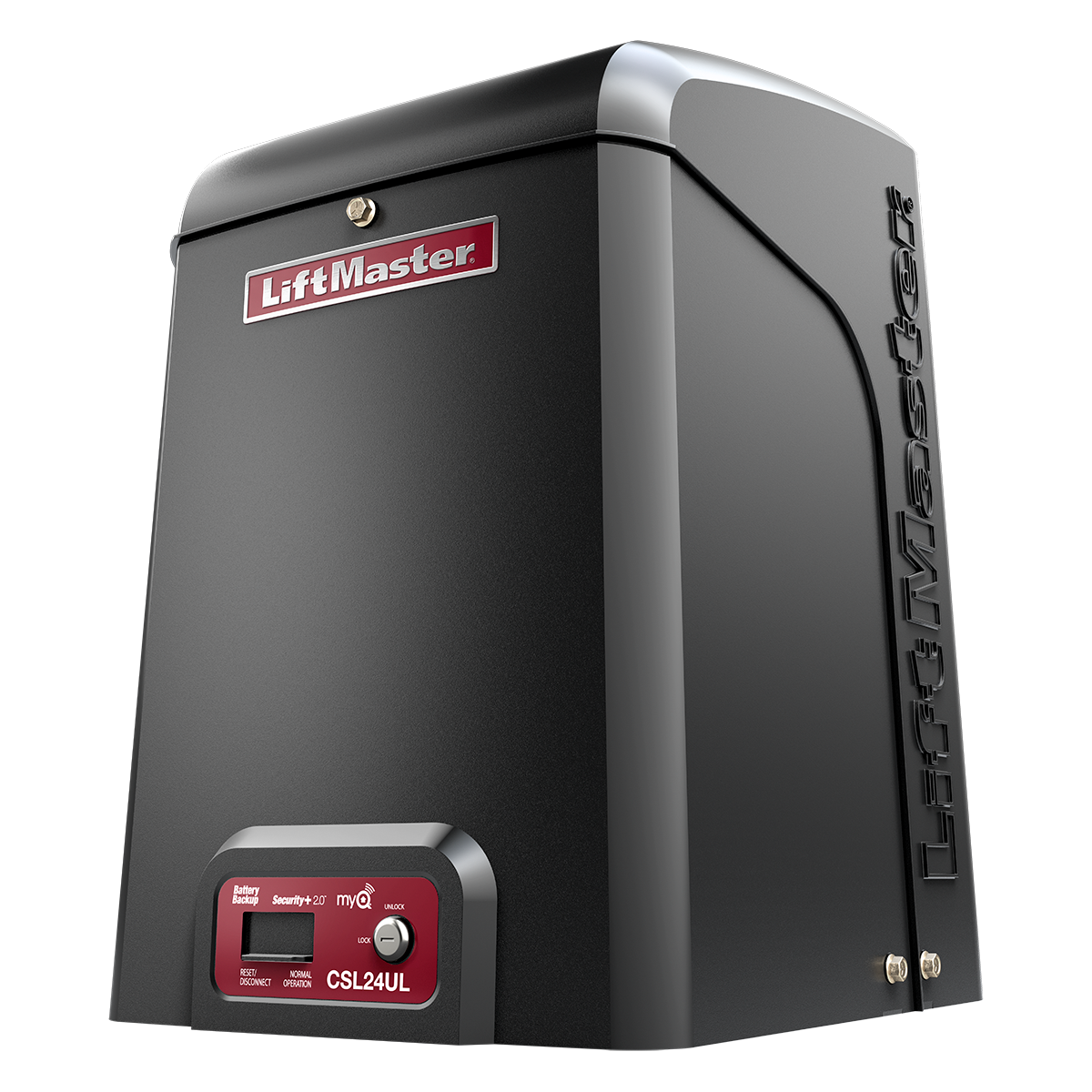

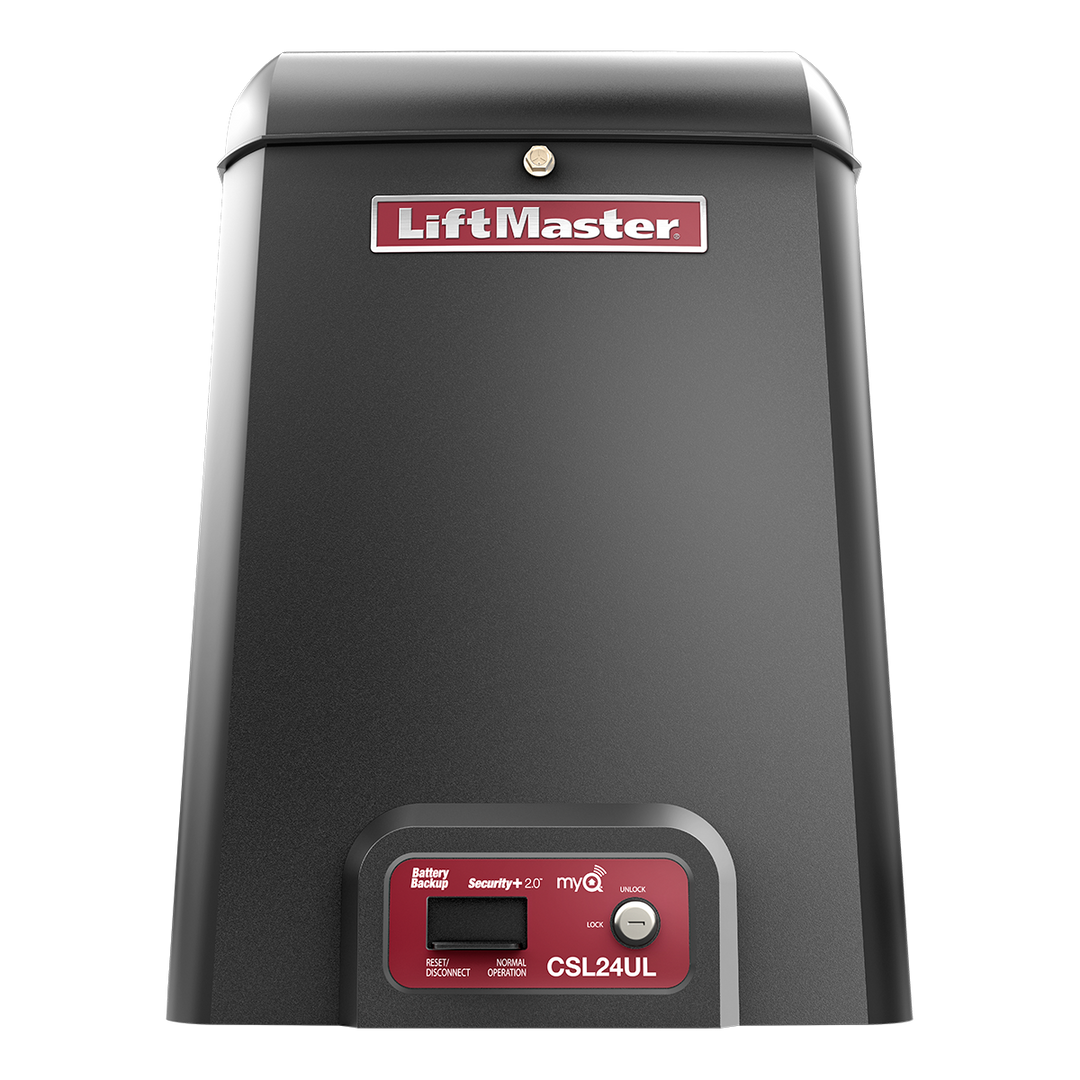

Liftmaster CSL24UL 24VDC High-Traffic Commercial DC Slide Gate Operator with FREE Remote

The New Liftmaster CSL24UL

LiftMaster

$1,668.96
SKU: csl24ul


The New Liftmaster CSL24UL

  • Max gate size: 50ft
  • Max gate weight: 1,500 lbs.
  • 1/2 horsepower motor equivalent

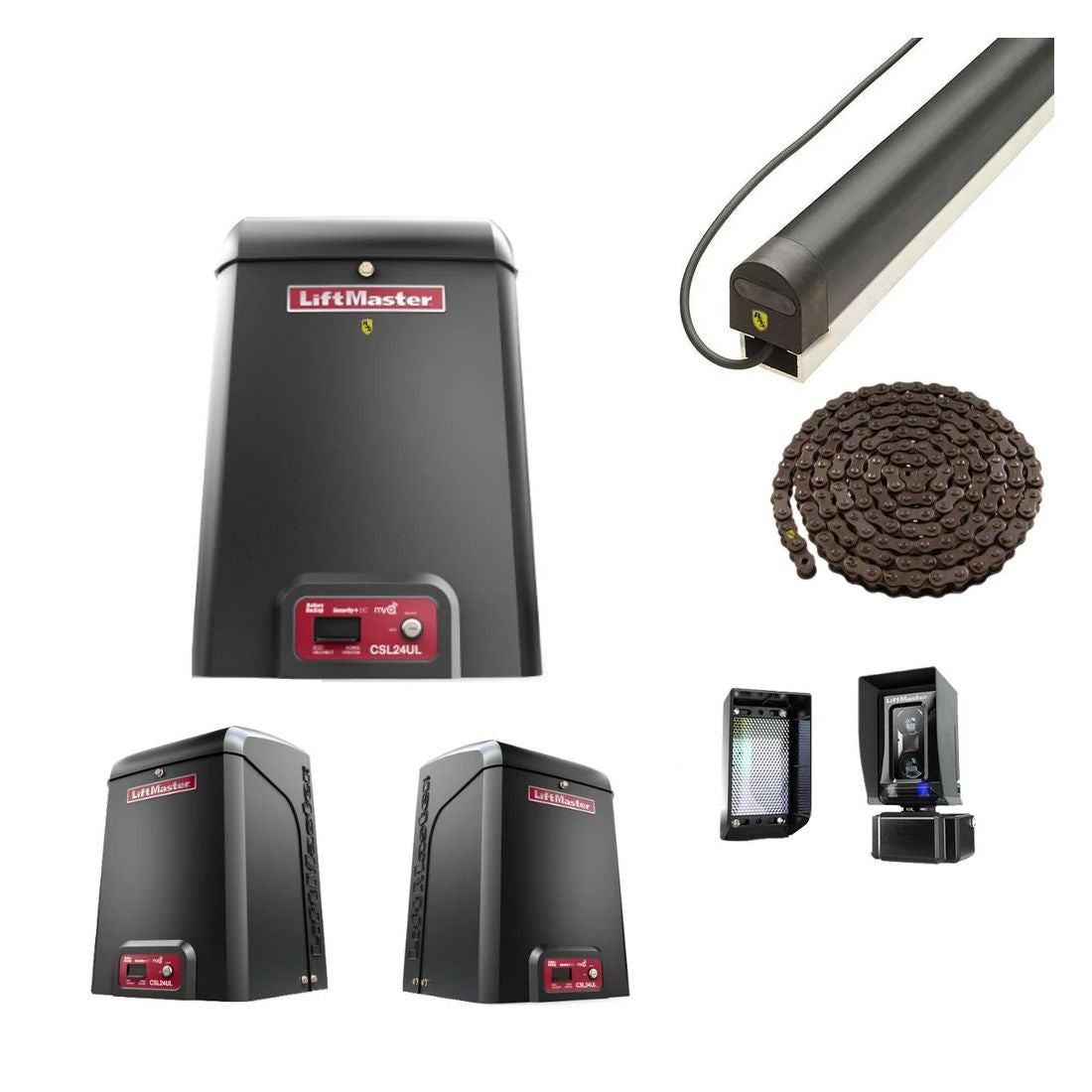

CSL24UL Package includes:

1 - CSL24UL with 24VDC motor and cover
1 - Built in radio receiver
1 - Monitored Safety Device (Liftmaster LMRRUL photo eye)
1 - Free Liftmaster 811lm remote
1- safety edge (wireless kit not included)

Liftmaster CSL24UL 24VDC High Traffic Commercial DC Slide Gate Opener

The Liftmaster CSL24U is a high traffic commercial DC slide gate opener that is designed for high volume commercial locations.  This liftmaster slide gate opener has many built in features that sets the CSL24U from other slide gate operators.  The P3 motor was engineered for more than 1 million cycles, and a  heavy-duty commercial gear-driven transmission, along with built in battery backup.  Other features include: soft start/stop operation, surge suppression, fire department compliance, wireless dual-gate communication, keyed manual disconnect, quick close, and anti-tailgate.

The Liftmaster CSL24U is ideal for "Heavy-traffic applications such as large gated communities, residential developments and commercial complexes".  The CSL24U also has a five year commercial and seven year residential waranty.

Features:

LED DIAGNOSTIC DISPLAY
SOLAR-READY
PROGRAMMABLE AUXILIARY RELAYS
POSILOCK
PRE-MOTION WARNING ALARM
ANTI-TAILGATE
QUICK CLOSE
HOMELINK® COMPATIBLE
SECURITY+ 2.0® ON-BOARD RADIO RECEIVER.

Specifications:

POWER: 120V or 230V Single Phase
ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board
TEMPERATURE SPECIFICATIONS: Without Heater:-4°F (-20°C) to 140°F (60°C)
Optional Heater(HTR)(ADD ON): -40°F (-40°C) to 140°F (60°C)
UL USAGE AND CLASSIFICATION: I, II, III, and IV
GATE TRAVEL SPEED: 12 in. per second.

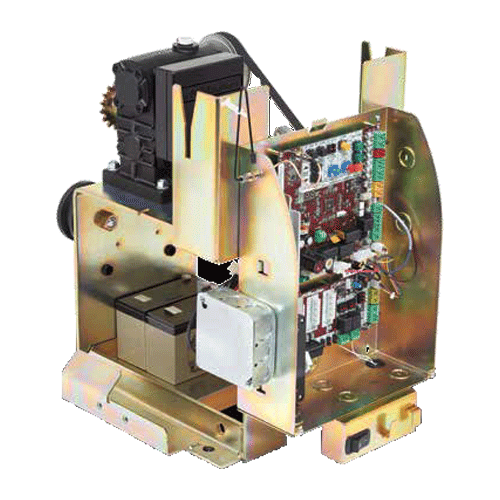

Construction:

P3 MOTOR: 24VDC continuous-duty motor
OPERATOR DUTY RATING: High-cycle high-temperature continuous duty
CHASSIS: Constructed with 1/4 in. gold zinc-plated steel for rust prevention
WORM GEAR REDUCTION: Commercial oil bath gearbox, 10:1 worm gear reduction
COVER: High-density UV-resistant poly carbonate 2-piece cover for excellent heat and corrosion resistance
OPERATOR WEIGHT: 140 lbs

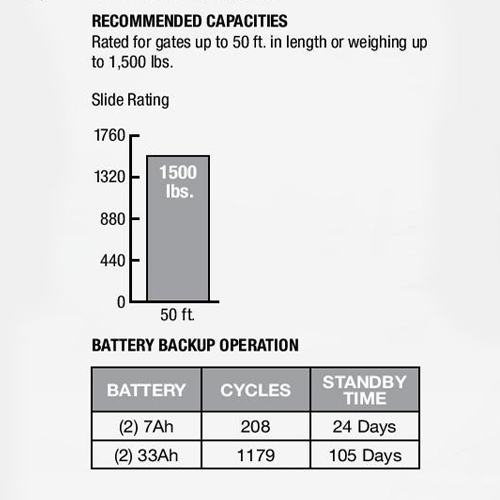

RECOMMENDED CAPACITIES: Rated for gates up to 50 ft. in length or weighing up to 1,500 lbs.

WARRANTY (by Liftmaster):

5 Year Commercial
7 Year Residential
