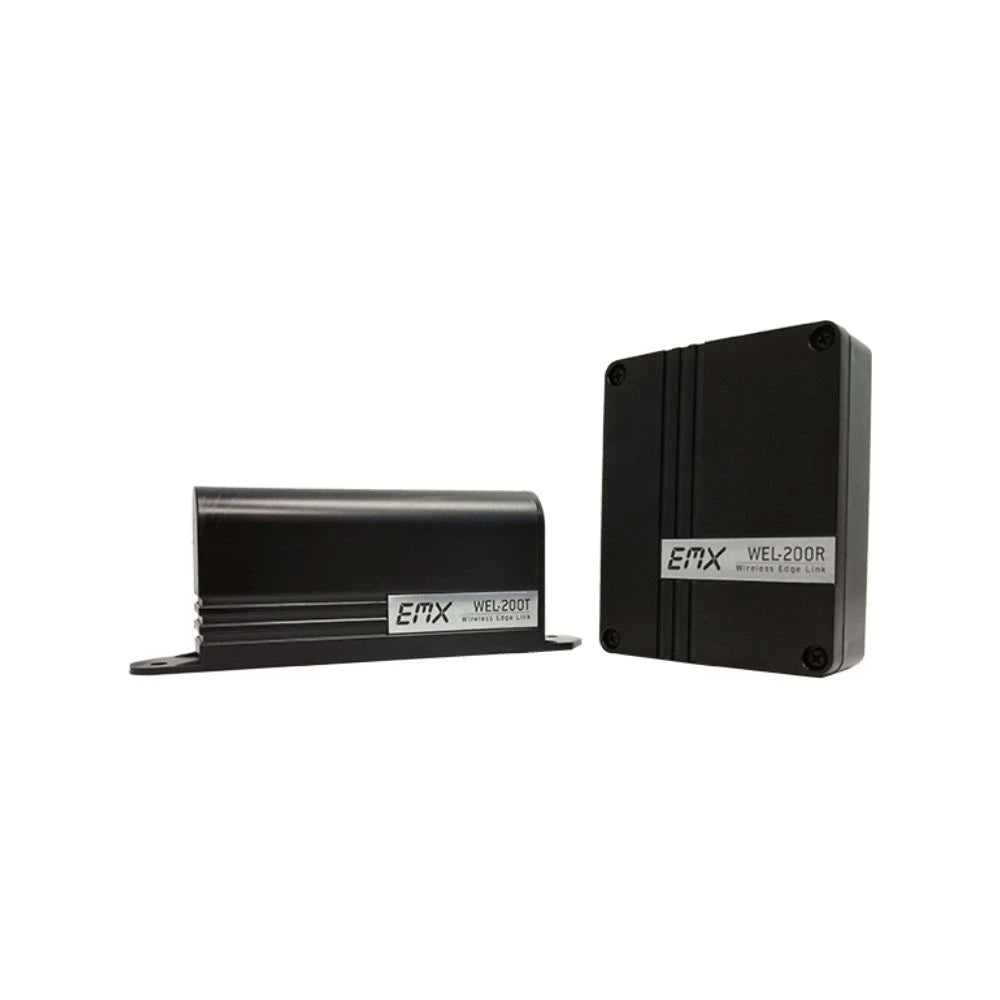

EMX Wel-200 Safety Edge Kit

The  WEL-200  provides  a  complete  wireless  solution  for  interfacing  sensing  edges with  gate  and  door  operators.  The  WEL-200  system  eliminates  the  need  to  wire between the safety edge and operator control box while ensuring compliance with 2018 UL325 monitoring standards.  The Wireless Edge Link operates at up to 200 ft. between transmitter and receiver.  The receiver connects with up to four transmitters, with  separate  relay  and  pulse  outputs  for  open  and  close  edge  functionality.

The WEL-200 is housed in rugged, watertight, NEMA 4X enclosures. The  WEL-200  transmitter  is  compatible  with  both  8.2K  and  10K  monitored  safety edges. WEL transmitters will operate for two years on two AA lithium batteries. With  enhanced  diagnostic  features,  the  WEL-200  receiver  makes  installation  and maintenance easy and reliable.  Feedback is provided for all fault modes, including edge open and short conditions, low battery and failed transmitters. The WEL receiver supports all common monitoring methods, including normally closed (NC), resistive termination (10K) and pulse output.




EMX Wel-200 Safety Edge Kit

The  WEL-200  provides  a  complete  wireless  solution  for  interfacing  sensing  edges with  gate  and  door  operators.  The  WEL-200  system  eliminates  the  need  to  wire between the safety edge and operator control box while ensuring compliance with 2018 UL325 monitoring standards.  The Wireless Edge Link operates at up to 200 ft. between transmitter and receiver.  The receiver connects with up to four transmitters, with  separate  relay  and  pulse  outputs  for  open  and  close  edge  functionality.

The WEL-200 is housed in rugged, watertight, NEMA 4X enclosures. The  WEL-200  transmitter  is  compatible  with  both  8.2K  and  10K  monitored  safety edges. WEL transmitters will operate for two years on two AA lithium batteries. With  enhanced  diagnostic  features,  the  WEL-200  receiver  makes  installation  and maintenance easy and reliable.  Feedback is provided for all fault modes, including edge open and short conditions, low battery and failed transmitters. The WEL receiver supports all common monitoring methods, including normally closed (NC), resistive termination (10K) and pulse output.
