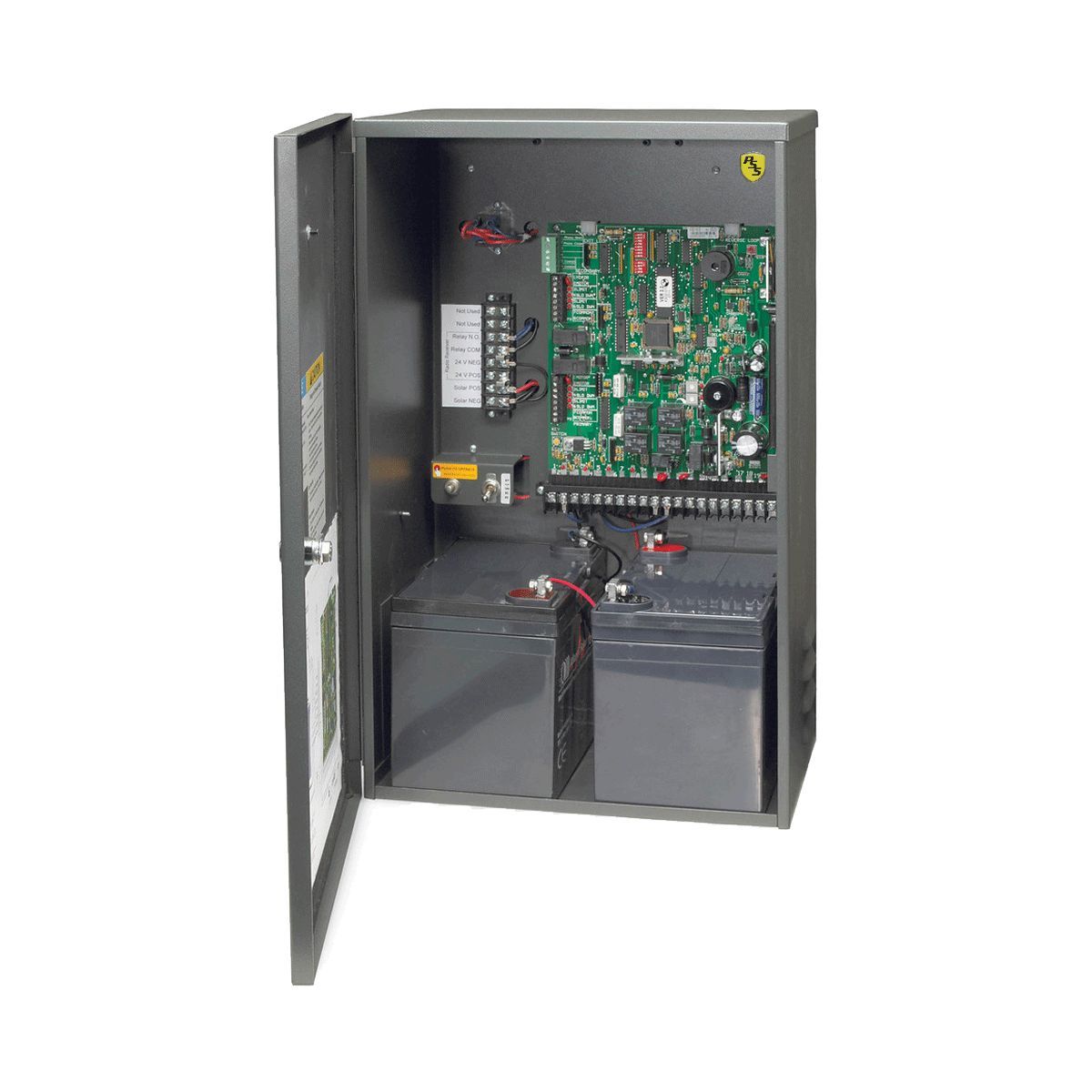

Doorking 4302-113 Basic Solar Control Panel 24VDC for 6002, 6003, 6004, & 6400 Openers (Opener Not Included)
The DKS 6002, 6003, 6004 and 6400 swing gate operators can be Solar Powered by using any of our Solar Control Box options. Our new 0.0 Amp SBPD (Pat Pend) circuit* insures that battery power is used only when the gate operator is activated. This means there is no use of battery power until the operator is engaged, which provides you with more gate operator cycles per battery charge.
This is ideal for remote locations where no power is available. DKS offers three solar power control box options allowing the system to be designed for your application requirements.
Zero draw is obtainable using keyed access control only. Keypads, Proximity readers, or RF remotes extract a low draw.
24VDC Basic Control Panel for DoorKing 6002, 6003, 6004, & 6400 Openers (Opener Not Included)
SPECIFICATIONS (Batteries Not Included)
Solar Control Box
24 VDC Input and output power
Basic control box allows you to provide your own batteries
Dimensions: 13"W x 8"D x 21"H
24 Volt, 10 Watt panel required with 18 Ah batteries
24 Volt, 20 Watt panel required with 35 Ah batteries
Maximum Cycles on Battery Power only**. Actual cycles may be less.
18 Ah batteries - 600
35 Ah batteries - 1200
