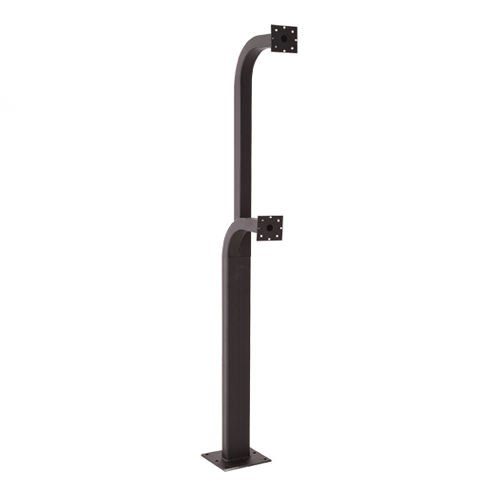

The DoorKing 1200-049 Gooseneck Pedestal with dual height 42" and 72" pad mount


SKU: doorking-1200-049

The DoorKing 1200-049 Gooseneck Pedestal with dual height 42" and 72" pad mount

Several styles of mounting posts are available from DKS. The mounting kiosks are ideal for walk-up pedestrian applications and are designed for DKS flush mount telephone entry systems only. Both the designer style post and the walk-up kiosk include an accessory compartment that can house accessory transformers, surge suppressors and a radio receiver. Additionally, the DoorKing 1200-049 is a designer style post that has an optional light tower that can be added to them. The standard posts are used with card readers, keypads and smaller access control devices.


  • Pad mount. In-ground adapter available.
  • Base post is constructed from 2 x 4 steel.
  • Upper post is constructed from 2 x 2 steel.
  • Two 12-inch sweeps.
  • 42-inches tall to center of lower mounting plate.
  • 72-inches tall to center of upper mounting plate.
  • Pad mount style includes mounting plate and mounting plate cover.


Light tower - 4 x 8 steel (45 Lbs) Adds 48 inches to top of heavy-duty designer style posts only Light sensor automatically turns light on at dusk, off at dawn RF coax antenna mounting hole
In-ground adapters All adapters are 24 inches tall sized to match their respective posts All adapters have 6 inch tall conduit access on side, 6 inches from mounting plate All adapters include 1/2 - 13 x 2 inch long mount bolts
Adapter plate 1802-111 Use with 1200-036, 1200-045, 1200-046, 1200-049 mounting posts to mount 1802, 1802-EPD, and 1819 telephone entry systems to these posts
