Diablo DSP-6LP 10-30 VAC/DC Low Power Loop Detector (Fail Secure)


SKU: diablo-dsp-6lp

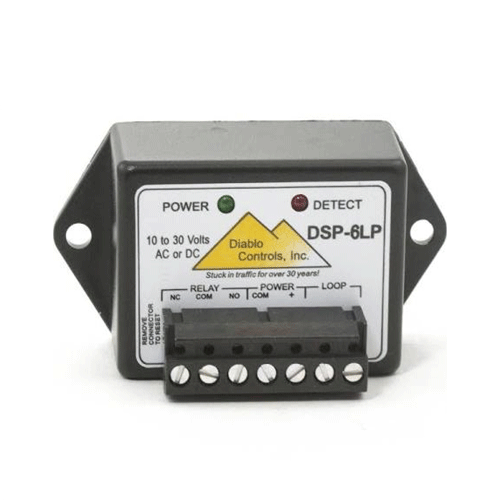

Diablo DSP-6LP 10-30 VAC/DC Low Power Loop Detector (Fail Secure)***Do not use this detector for safety loops!!! Use DSP-7LP for safety loops!!! The DSP-6LP vehicle detector is designed for solar powered gate
applications. This detector will operate on any voltage from 10 to 30
Volts AC or DC and draws approximately 1 milliampere while waiting for a
car. The power LED winks continuously once per second to indicate the
detector is operating in the low power mode. The DSP-6LP detector
beats all competition for reliability, simplicity, and “no car” current
Loop Size - Works on any in-ground inductive loop from 20 to 1200 mH.
Indicators - Separate Power and Detect LED’s. The
green Power LED will wink continuously once per second under normal
operation. The red Detect LED will turn on solid for a vehicle.
Sensitivity - Automatic - compensates for large loops and large lead-ins.
Output Ratings - Single output, 1 amp relay at 30 VDC Resistive - The relay common, NO, and NC contacts are available.
Ordering Information – DSP-6LP standard version.
Power - 10 to 30 Volts AC or DC. Approximately 1 mA (no car and all loop sizes) and less than 25 mA with a car on the loop.
Size - Height: 1.52” Width: 2.9” Depth: 1.56”
Connector - Removable 7-pin terminal block. Pin assignments are shown below - from left to right: 1 - Relay (NC) (opens for detect) Pulse2 - Relay Common Pulse3 - Relay (NO) (closes for detect) Pulse4 - Power Common 5 - Power in (10 to 30 Volts AC or +DC) 6 - Loop 7 - Loop
Operating Temperature -35°F to 165°F (-37°C to 74°C)
