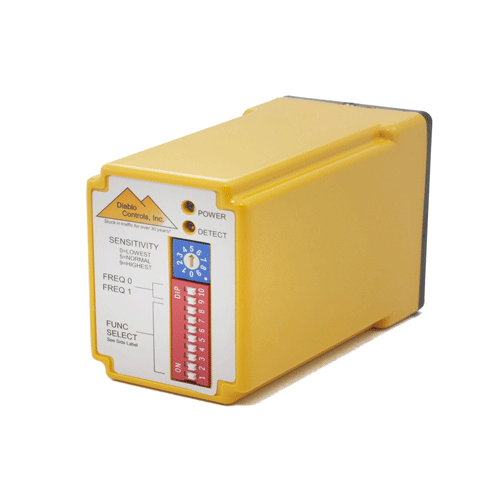

Diablo DSP-10LV Loop Detector
The DSP-10 vehicle detector has been specifically designed to handle all parking, drive-through and access control applications.Loop Size - Works on any in-ground inductive loop from 20 to 1000 uH.Power Brownout Call Memory – Power interruptions of
short duration are ignored. If power fails for approximately three
seconds or less the DSP-10 “remembers” a vehicle.
Intelligent Power Protection – The DSP-10-LV is
protected from damage if plugged into a higher voltage. No need to
change a fuse or reset a circuit breaker, simply plug the detector into
the proper voltage and it works.
Indicators - Separate Power/Fail and Detect LEDs.
Compact Size - Industry standard 11 pin connector in a small plastic case.
FRONT PANEL SELECTABLE SWITCHES
Sensitivity - Ten sensitivity settings.
Frequency – Automatically tunes within one of four operating ranges.
Outputs - Two separate relay outputs with features that are front panel programmable as follows:
Output A -
Main detection output. Can be modified by delay and extension.
Factory set to be fail safe. Fail mode operation is easily changeable
by internal jumpers.
Output B - Can be set to one of the following:
1) True presence (no extension or delay)
2) Pulse on vehicle entering loop
3) Pulse on vehicle exiting loop
4) Loop Fail output
Sensitivity Boost - Can be used in special applications to insure complete detection of high-bed vehicles.
Hold time - Normal or extended hold time is selectable.
Loop failure - If the loop fails (opens or shorts)
the power indicator flashes. Output B can also indicate this condition
if desired (see above). The option to "remember" an intermittent loop
failure is also provided.
Delay - Can be selected to ignore fast moving vehicles over the loop.
Extension - Extends a call for slow moving vehicles.
