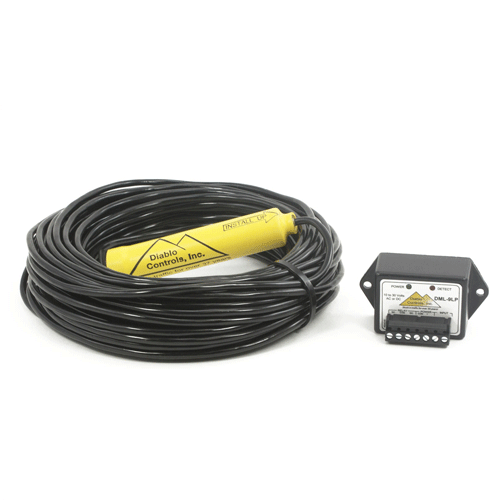

Diablo DML-9LP-75 Probe Kit including 75 foot probe and detector

Diablo DML-9LP-75 Probe Kit including 75 foot probe and detector

Diablo DML-9LP-75 Probe Kit including 75 foot probe and detector

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $189.97
/
Shipping calculated at checkout.

CLICK HERE FOR BROCHURECLICK HERE FOR MANUAL

Diablo DML-9LP-75 Probe Kit including 75 foot probe and detector

Features

  • Indicators - Separate Power and Detect LED’s. The
  • green Power LED will wink continuously once per second under normal
  • operation. The red Detect LED will turn on solid for a vehicle.
  • Sensitivity - Automatic - compensates for extra long lead-ins.
  • Output Ratings - Single output, 1 amp relay at 30 VDC Resistive - The relay common, NO, and NC contacts are available.
  • Ordering Information – DSP-9LP standard version.
  • Power - 10 to 30 Volts AC/DC. Approximately 3 mA (no car and all loop sizes) and less than 25 mA with a car on the loop.
  • Size - Height: 1.52” Width: 2.9” Depth: 1.56”
  • Connector - Removable 7-pin terminal block. Pin assignments are shown below - from left to right: 1 - Relay (NC) (opens for detect) Pulse2 - Relay Common Pulse3 - Relay (NO) (closes for detect) Pulse4 - Power Common 5 - Power in (10 to 30 Volts AC or +DC) 6 - Loop 7 - Loop
  • Operating Temperature -35°F to 165°F (-37°C to 74°C)

CLICK HERE FOR BROCHURECLICK HERE FOR MANUAL

Diablo DML-9LP-75 Probe Kit including 75 foot probe and detector

Features

  • Indicators - Separate Power and Detect LED’s. The
  • green Power LED will wink continuously once per second under normal
  • operation. The red Detect LED will turn on solid for a vehicle.
  • Sensitivity - Automatic - compensates for extra long lead-ins.
  • Output Ratings - Single output, 1 amp relay at 30 VDC Resistive - The relay common, NO, and NC contacts are available.
  • Ordering Information – DSP-9LP standard version.
  • Power - 10 to 30 Volts AC/DC. Approximately 3 mA (no car and all loop sizes) and less than 25 mA with a car on the loop.
  • Size - Height: 1.52” Width: 2.9” Depth: 1.56”
  • Connector - Removable 7-pin terminal block. Pin assignments are shown below - from left to right: 1 - Relay (NC) (opens for detect) Pulse2 - Relay Common Pulse3 - Relay (NO) (closes for detect) Pulse4 - Power Common 5 - Power in (10 to 30 Volts AC or +DC) 6 - Loop 7 - Loop
  • Operating Temperature -35°F to 165°F (-37°C to 74°C)
