Awid LR-TEK Installation Kit

AWID’s LR-TEK Installation Kit is the tool that helps sell a new UHF (865~928 MHz) long-range reader, gives you answers about performance of the products during installation, and identifies the source of problem during a service call. The LR-TEK is provided in a small, sturdy carton with fitted padding. It works also with the UA-612 UHF switchplate-type reader, and even with HF and LF (proximity) readers. The LR-TEK is a low-cost way to observe the performance of a reader without interface to the controller of an access control system, and to change the LR reader repetition rate and RF power level.

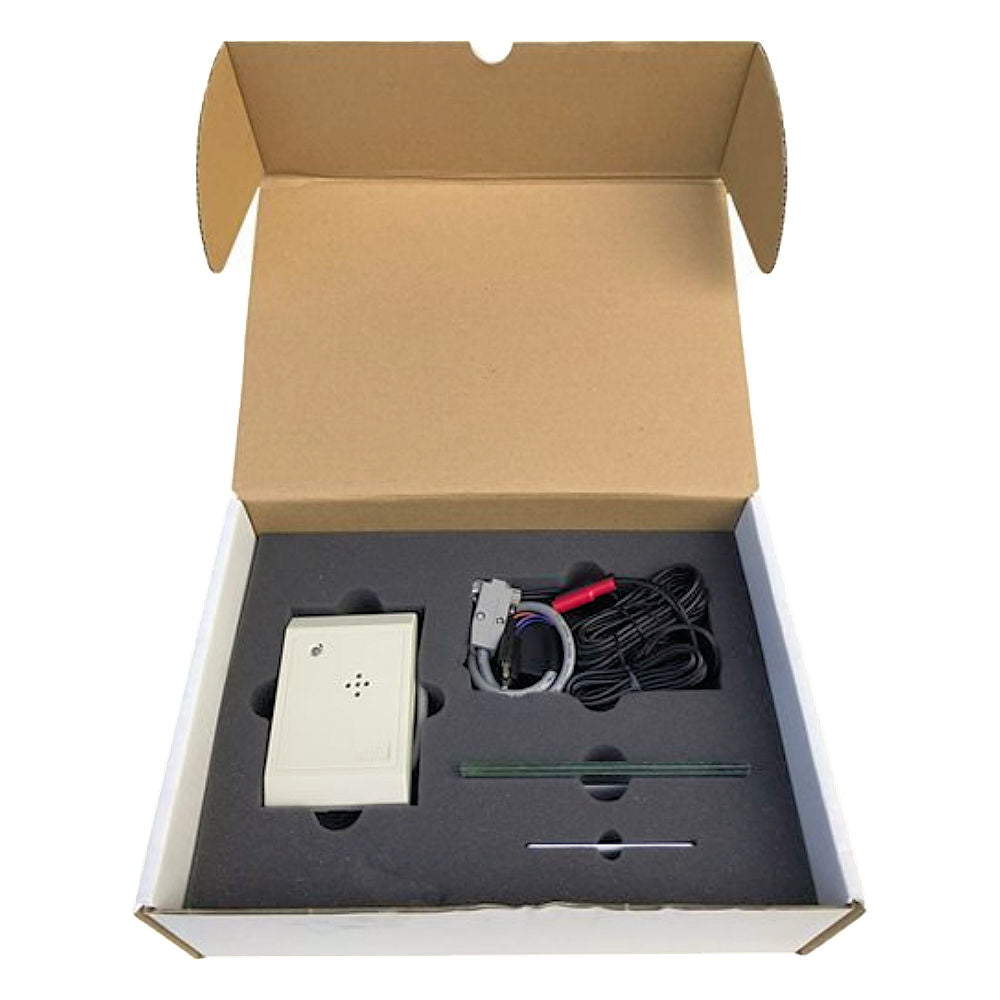

Kit includes:

• Test Unit - Contains a sounder and an LED to indicate every tag read, and a cable with clip leads for DC power and RS-232 Transmit Data. Clips to the power supply and to the reader being tested.
• DC Power Module - AWID’s PS-123.3A plug-in “brick” with nominal 12 volts output up to 3.3 amperes.
• RS-232 Cable Adapter - Short cable with female DB9 connector, and 3 clip leads for RS-232 interface.
• Test Tags - AWID’s WS-UHF windshield tag (on windshield glass) and CS-UHF clamshell card, for hand tests.
• Carton - A sturdy container with fitted foam padding to support and protect the components between uses.
