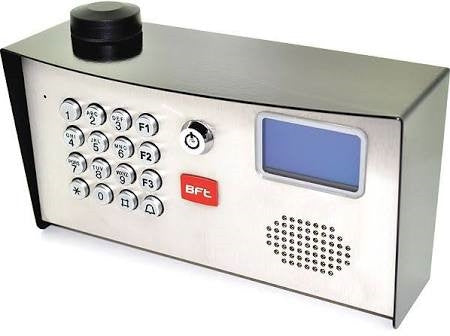

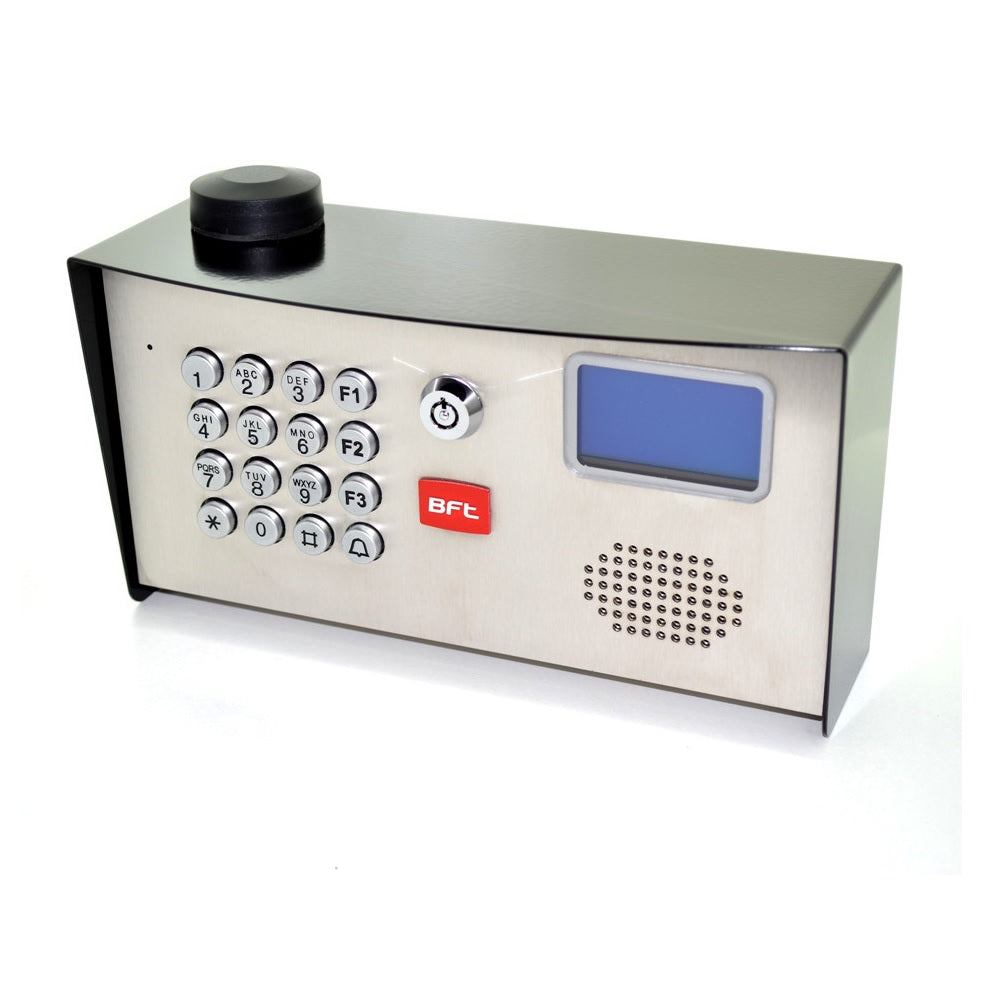

BFT model BFT-CELL-MULTI Cellular Access Control Intercom for Multiple Residences

FEATURES:

• CELLULAR INTERCOM FOR UP TO 500 APARTMENTS.
• LCD DISPLAY WITH DIRECTORY SCROLL AND DIRECT DIALING OF APARTMENT.
• CAN CALL UP TO 3 NUMBERS IN SEQUENCE.
• QUAD BAND MODEM PLUS 3G CAPABILITY.
• STORE UP TO 1500 KEYPAD CODES.
• FREE APP AVAILABLE FOR ANDROID AND IPHONE.
• PROGRAMMABLE BY SMS, WITH PC VIA USB LINK, OR WITH BUILT IN KEYPAD AND LCD DISPLAY.

PHYSICAL SPECIFICATIONS

• Stainless steel back box and re-enforced face plate.
• Black powder coated hood.
• Dimensions 10 ¼ inches wide x 5 ½ inches tall x 4 inches deep.
• Mounting holes M8 diameter, 3 inch x 3 inch array for standard 4 x 4 gooseneck bracket.

TECHNICAL DETAILS

• 1 relay output (normally open or normally closed).
• Dual 3G and quad band 2G modem. (US and EU version).
• Power supply 12v d.c, 2A included.
• Power consumption 100mA standby, 500mA when dialing with up to 2 amp spikes
• Compatible with At&T and T-Mobile networks.
