Liftmaster LA500XL20W 24VDC with XL Control Panel, and Solar Panel (On Sale)

Liftmaster LA500XL20W 24VDC with XL Control Panel, and Solar Panel (On Sale)
Liftmaster Swing Gate Opener - Liftmaster LA500XL20W XL Solar Gate Opener - Liftmaster Swing Gate Opener Capacities

Liftmaster LA500XL20W 24VDC with XL Control Panel, and Solar Panel (On Sale)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,689.99
/
Shipping calculated at checkout.

Liftmaster LA500XL20W 24VDC (On Sale)

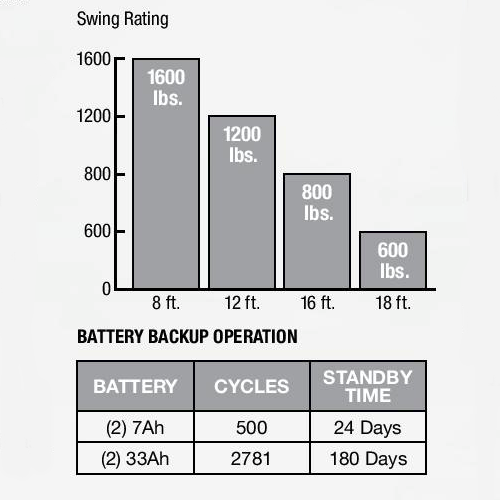

  • Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

The Liftmaster LA500XL20W 24VDC Swing Gate Opener is a Residential/Light Commercial Linear Actuator with Monitored Photo Eye

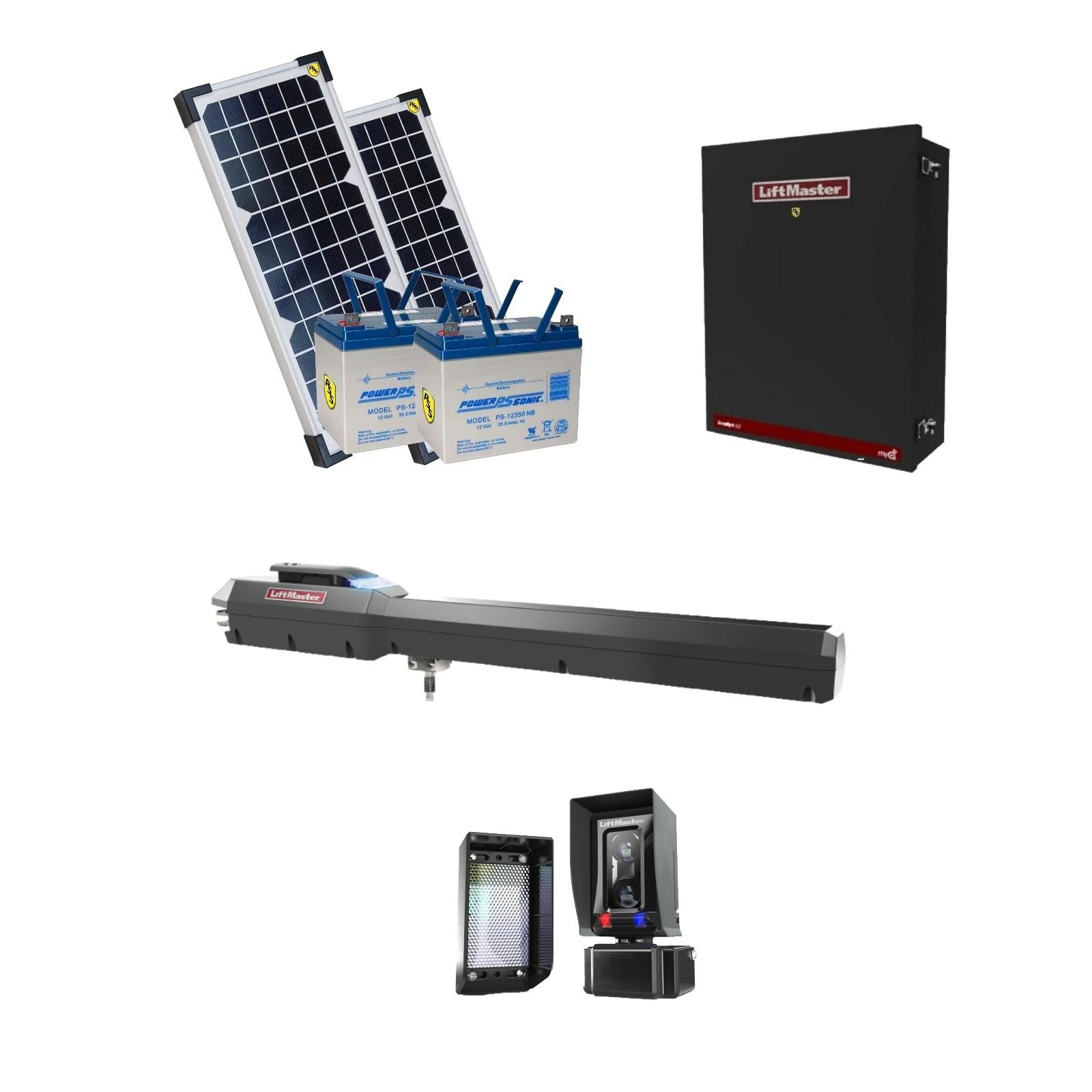

LA500XL20W Package Includes:

1 - LA500DC linear actuator arm with brackets
1 - XL control panel with circuit board
2 - 33 amp hour batteries
2 - 10 watt 12V solar panel (together will make a 20 Watt 24 Volt)
1 - Set of Liftmaster LMRRU Monitored Safety Photo Eyes

Liftmaster LA500XL20W Dual Residential/Commercial Swing Gate Opener

The Liftmaster LA500XL20W  is designed to be used in a residential location, but it is not uncommon to be used in small commercial locations.  The LA500XL20W is a solar powered swing gate opener with solar panel, XL Control Box and 33 amp hour batteries. The LA500XL20W includes settings such as Soft Start/Stop and Mid-Travel Reversal, Commercial-Duty Cast Aluminum Housing with Heavy-Duty DC Motor, Inherent Reversing Sensor, Fire Department Compliance, Keyed Manual Disconnect, Surge Suppression, Quick Close/Anti-Tailgate, and  Molecularly Bonded Coating.  The LA500 Swing Gate Opener is one of our best selling products, and are one of the most reliable operators on the market.

Features:

  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • LED DIAGNOSTIC DISPLAY
  • WIRELESS DUAL-GATE COMMUNICATION
  • BI-PART DELAY
  • PROGRAMMABLE AUXILIARY RELAYS
  • ANTI-TAILGATE
  • PRE-MOTION WARNING ALARM
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • POWER: Full-time AC-run operation 120V/230V Single Phase
  • ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board
  • TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C)
  • UL USAGE CLASSIFICATION: I, II, III, and IV
  • GATE TRAVEL SPEED: 90-degree opening in 15-17 seconds.

Construction:

  • P3 MOTOR: 24VDC continuous-duty motor
  • OPERATOR DUTY RATING: Continuous duty, 300 cycles per day
  • CHASSIS: Commercial-duty aluminum die-cast housing
  • WORM GEAR REDUCTION: Precision-machined all-metal gear in contained lubrication housing
  • OPERATOR WEIGHT: Actuator arm 35 lbs. Standard control box 13 lbs. • Includes (2) 7Ah batteries
  • RECOMMENDED CAPACITIES: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

Liftmaster LA500XL20W 24VDC (On Sale)

  • Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

The Liftmaster LA500XL20W 24VDC Swing Gate Opener is a Residential/Light Commercial Linear Actuator with Monitored Photo Eye

LA500XL20W Package Includes:

1 - LA500DC linear actuator arm with brackets
1 - XL control panel with circuit board
2 - 33 amp hour batteries
2 - 10 watt 12V solar panel (together will make a 20 Watt 24 Volt)
1 - Set of Liftmaster LMRRU Monitored Safety Photo Eyes

Liftmaster LA500XL20W Dual Residential/Commercial Swing Gate Opener

The Liftmaster LA500XL20W  is designed to be used in a residential location, but it is not uncommon to be used in small commercial locations.  The LA500XL20W is a solar powered swing gate opener with solar panel, XL Control Box and 33 amp hour batteries. The LA500XL20W includes settings such as Soft Start/Stop and Mid-Travel Reversal, Commercial-Duty Cast Aluminum Housing with Heavy-Duty DC Motor, Inherent Reversing Sensor, Fire Department Compliance, Keyed Manual Disconnect, Surge Suppression, Quick Close/Anti-Tailgate, and  Molecularly Bonded Coating.  The LA500 Swing Gate Opener is one of our best selling products, and are one of the most reliable operators on the market.

Features:

  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • LED DIAGNOSTIC DISPLAY
  • WIRELESS DUAL-GATE COMMUNICATION
  • BI-PART DELAY
  • PROGRAMMABLE AUXILIARY RELAYS
  • ANTI-TAILGATE
  • PRE-MOTION WARNING ALARM
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • POWER: Full-time AC-run operation 120V/230V Single Phase
  • ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board
  • TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C)
  • UL USAGE CLASSIFICATION: I, II, III, and IV
  • GATE TRAVEL SPEED: 90-degree opening in 15-17 seconds.

Construction:

  • P3 MOTOR: 24VDC continuous-duty motor
  • OPERATOR DUTY RATING: Continuous duty, 300 cycles per day
  • CHASSIS: Commercial-duty aluminum die-cast housing
  • WORM GEAR REDUCTION: Precision-machined all-metal gear in contained lubrication housing
  • OPERATOR WEIGHT: Actuator arm 35 lbs. Standard control box 13 lbs. • Includes (2) 7Ah batteries
  • RECOMMENDED CAPACITIES: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs
