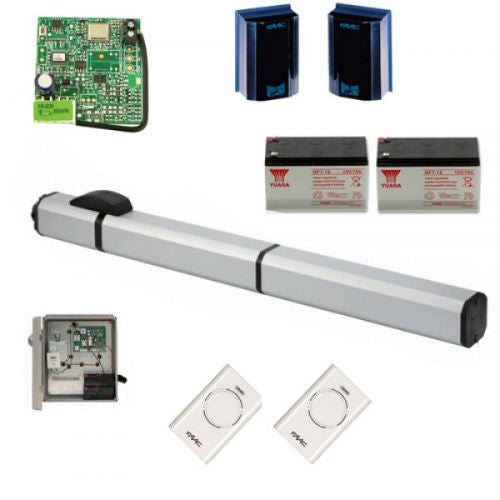

FAAC S450 H 24VDC Swing Arm Opener Kit

The FAAC S450 H 24VDC Hydraulic Operator works for residential/condominium and commercial swing-leaf gates with single-leaf max. length of 14 ft and single-leaf weight of 1,100 lbs with opening/closing stops included.

Features

  • Condominium/residential and light commercial application, suitable for leafs up to 14 ft.
  • High closing/opening speed (1 in./s)
  • Very accurate anti-crushing and inversion on obstacles functions thanks to the integrated encoder
  • Flexible and easy to install thanks to the multi-position adjustable brackets and the long stroke (12 1/4 in.)
  • Gate speed and force can be adjusted through the electronic control board
  • New SB system (no hydraulic locking version) with tri-drive valves (FAAC patented): easier manual leaf movement
  • Integrated opening/closing mechanical stops included in the operator

Specifications

  • Power Supply (VDC): 24-36
  • Power Consumption (W): 70 (nominal) - 288 (maximum)
  • Protection class: IP55
  • Operating ATemperature: -4°F - 113°F
  • Hydraulic Lock: Installed
  • Max. Traction/Thrust Force (lbf): 1124
  • Maximum leaf length (feet): 14
  • Duty cycle at 68 °F: Continuous
  • Class of Operation: Residential, Commercial
  • Linear Rod Speed: Adjustable up to 1"/sec
  • Effective Rod Stroke (inches): 12 1/4
  • aka 104101.5

FAAC S450 H 24VDC Swing Arm Opener Kit

The FAAC S450 H 24VDC Hydraulic Operator works for residential/condominium and commercial swing-leaf gates with single-leaf max. length of 14 ft and single-leaf weight of 1,100 lbs with opening/closing stops included.

Features

  • Condominium/residential and light commercial application, suitable for leafs up to 14 ft.
  • High closing/opening speed (1 in./s)
  • Very accurate anti-crushing and inversion on obstacles functions thanks to the integrated encoder
  • Flexible and easy to install thanks to the multi-position adjustable brackets and the long stroke (12 1/4 in.)
  • Gate speed and force can be adjusted through the electronic control board
  • New SB system (no hydraulic locking version) with tri-drive valves (FAAC patented): easier manual leaf movement
  • Integrated opening/closing mechanical stops included in the operator

Specifications

  • Power Supply (VDC): 24-36
  • Power Consumption (W): 70 (nominal) - 288 (maximum)
  • Protection class: IP55
  • Operating ATemperature: -4°F - 113°F
  • Hydraulic Lock: Installed
  • Max. Traction/Thrust Force (lbf): 1124
  • Maximum leaf length (feet): 14
  • Duty cycle at 68 °F: Continuous
  • Class of Operation: Residential, Commercial
  • Linear Rod Speed: Adjustable up to 1"/sec
  • Effective Rod Stroke (inches): 12 1/4
  • aka 104101.5
