Allomatic Toro24 Swing Actuator (Arm Only)


SKU: allomatic-toro24-arm

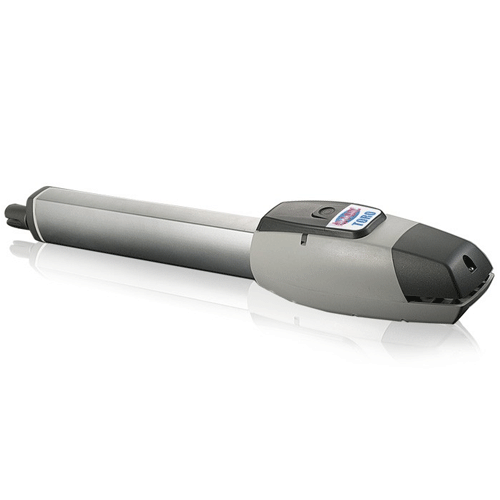

Allomatic Toro 24 Swing Gate Opener

The Allomatic Toro 24 Swing Gate Operator is a swing actuator that attaches to your gate and swings it open.  The Toro 24 is made for residential and light commercial locations.  This Allomatic swing gate opener has many features that make Allomatic one of the most trusted brands in the industry.  These features include manual key release for easy access, a modern design with uninterrupted power supply, programmable logic and an advanced charge controller enhanced for solar application, and a control board with even more features.  The Allomatic Toro 24 Swing Gate Opener has a 4 residential and 3 year commercial warranty.


Warranty: 4 year residential, 3 year commercial
Motor: 24VDC
Duty Cycle: Continuous
Power Options: 120/220 VAC Single Phase
Control Box: Plated and powder coated steel for extra rust protection with room for accessories
Dimensions: W:15  L:9.5  H:25
Max Gate Weight and Length:
               8ft - 1600lbs
              12ft - 1200lbs
              16ft - 800lbs
              18ft - 600lbs
Gate Travel Speed: Opens and closes 90 degrees in 15-20 seconds
Operator Weight: 23lbs arm,
Emergency Relase: Keyed manual release knob
Batteries: Two 7 Ah Batteries
Battery Backup: Integrated capable up to 450 cycles
Solar Capabilities: 12VDC or 24VDC Solar Panel Input up to 80watt
Solar Charge Controller Technology: Maximum power point tracking for maximum efficiency
Limit Switch: Magnetic switches easy accessible and easy slide adjustment.

Manufacturers Warranty:

 The Warrantor warrants the TORO24 Swing Gate Operators. ALL-O-MATIC INC warrants its TORO24 for a period of three (3) years in commercial installations, and for a period of four (4) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner. Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
