Viking VA-X390SLK Wall Mount Swing Gate Opener

Max gate size: 14ft
Max gate weight: 600 lbs.

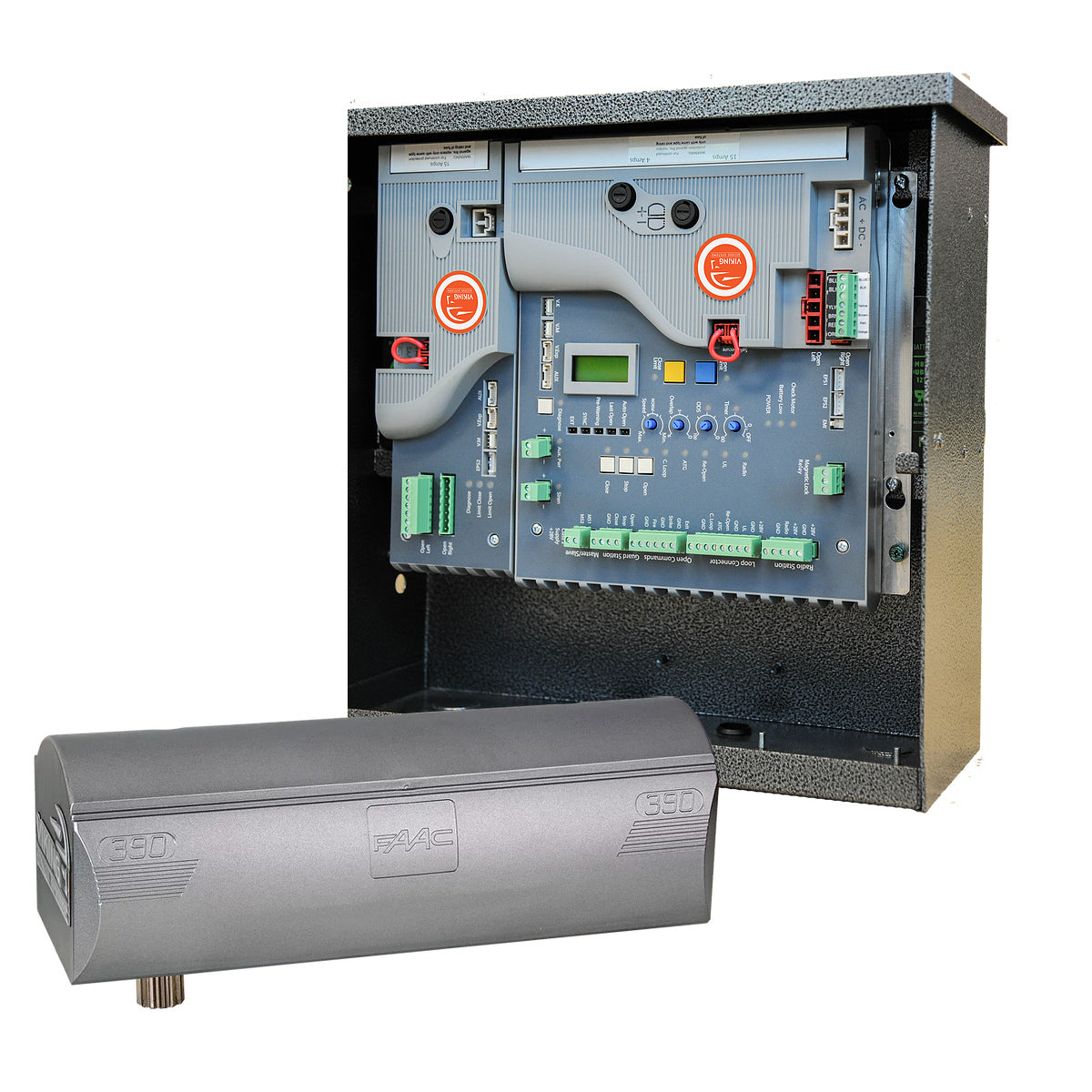

The X-390™ Swing Gate Operator features adjustable timer for automatic closure, high efficiency power supply, a built-in three push button station, built-in battery backup capable of 800 cycles in case of power failure, and on-board lightning protection. The X-390™ is powered by the V-Flex control board, including speed control and diagnostic LCD display. This aesthetic operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. This operator can be mounted directly to a column, making it a very popular option for homeowners that do not have the space for a pad mounted gate opener. The X-390 has UL 325 and 991 safety listings

Features

Easy Accessible Limit Switches: The Viking X-390 limit switches are located at the top of the opener. If one needs to be replaced only two screws need to be removed.
Positive Stop System: The X-390 Positive Stop system can be finely adjusted and is designed to precisely align by-parting gate systems
Solar Efficient: The Viking X-390 Swing Gate Operator is ready to be powered by solar. Add a 24 volt panel and two 12 volt batteries to enjoy a cleaner energy source. Consult with an installer or with Viking Access Systems for solar panel and battery size recommendations.
High Efficiency Motor: The X-390 is a unique high efficiency motor featuring high torque, low current and 100% continuous duty. While meeting the exact requirements needed to open and close your gate, Viking surpasses in engineering.

Specs

MAX GATE CAPACITY: 600 lbs/14'
OPERATING TEMP: -20°F up to 131°F
MAX OPERATING SPEED: 10 - 13 Seconds per 90°
MAX DUTY CYCLE: 100% Continuous Cycle. This means that you can run your operator 24/7 with absolute confidence.

CLICK HERE FOR BROCHURE CLICK HERE FOR MANUAL
