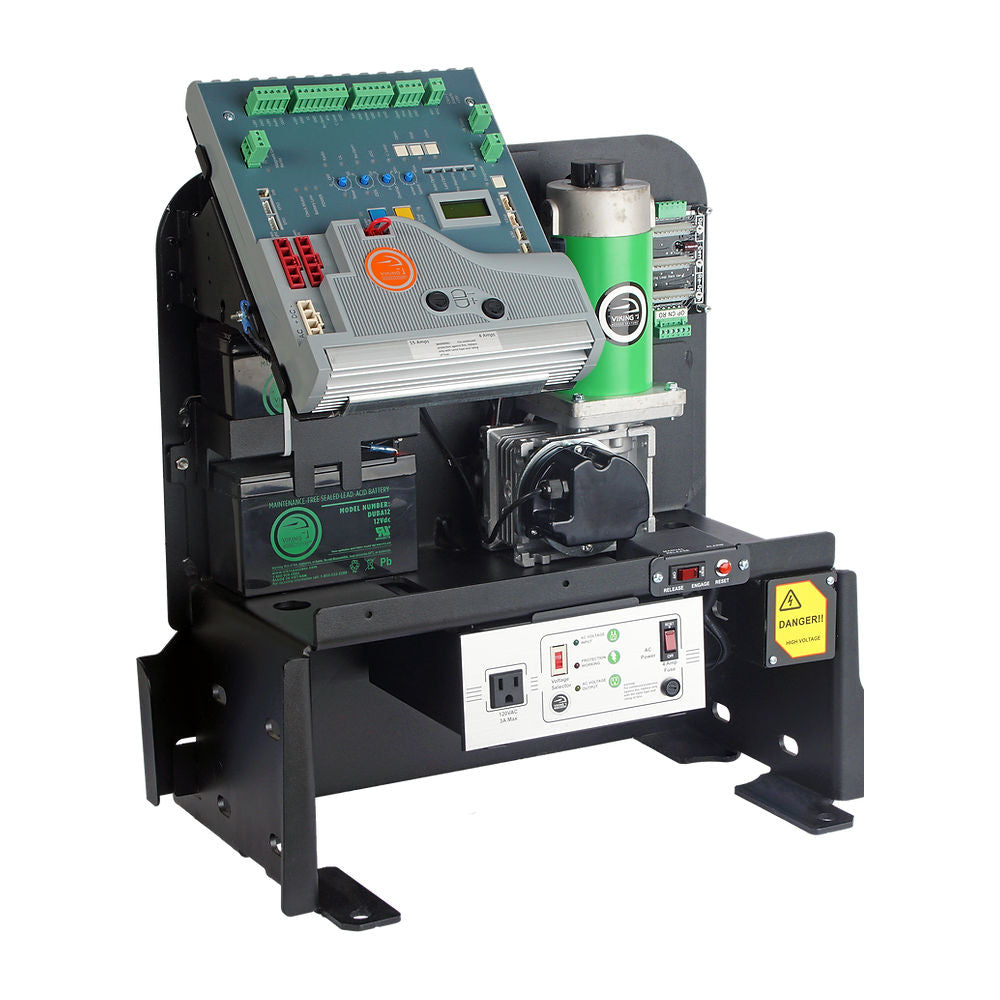

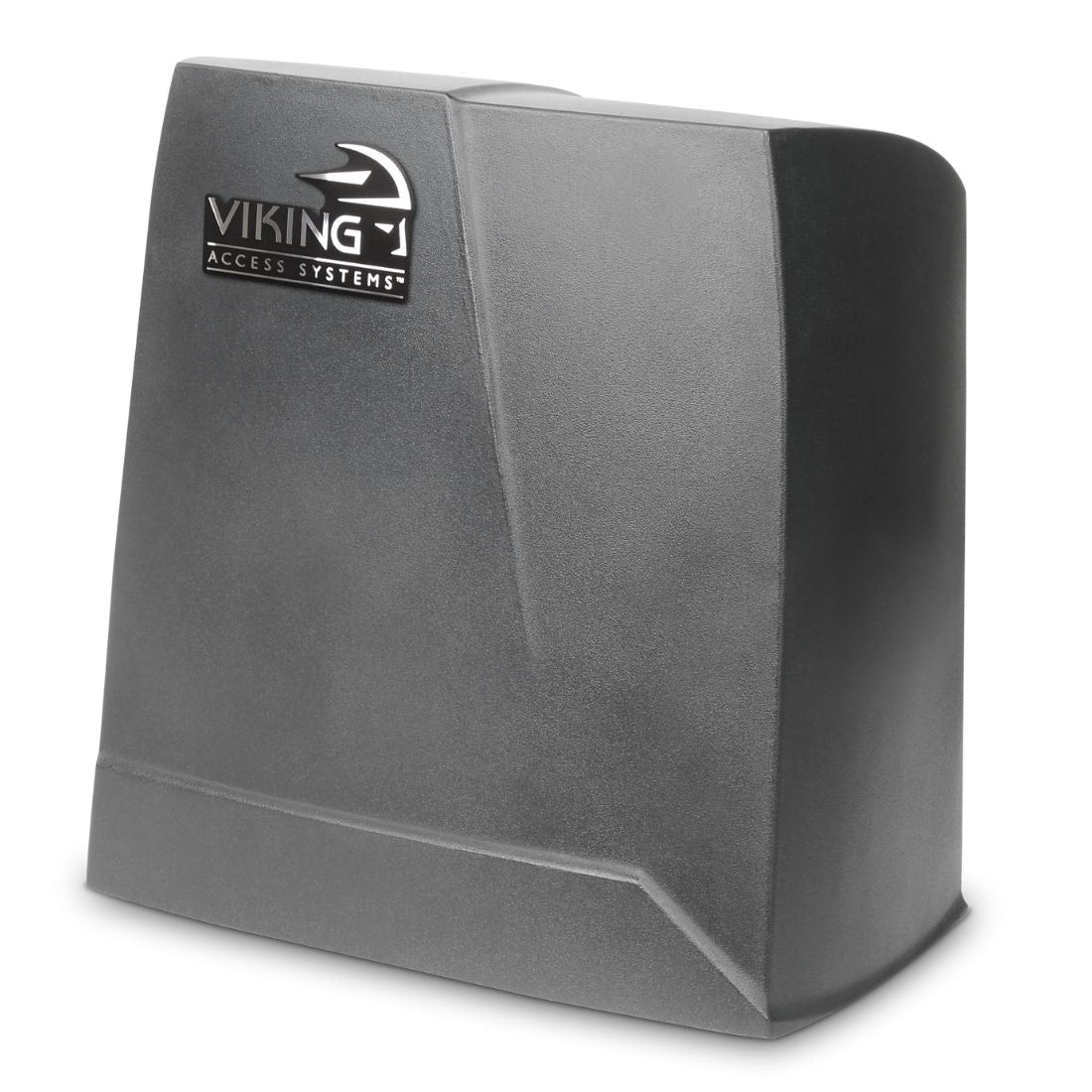

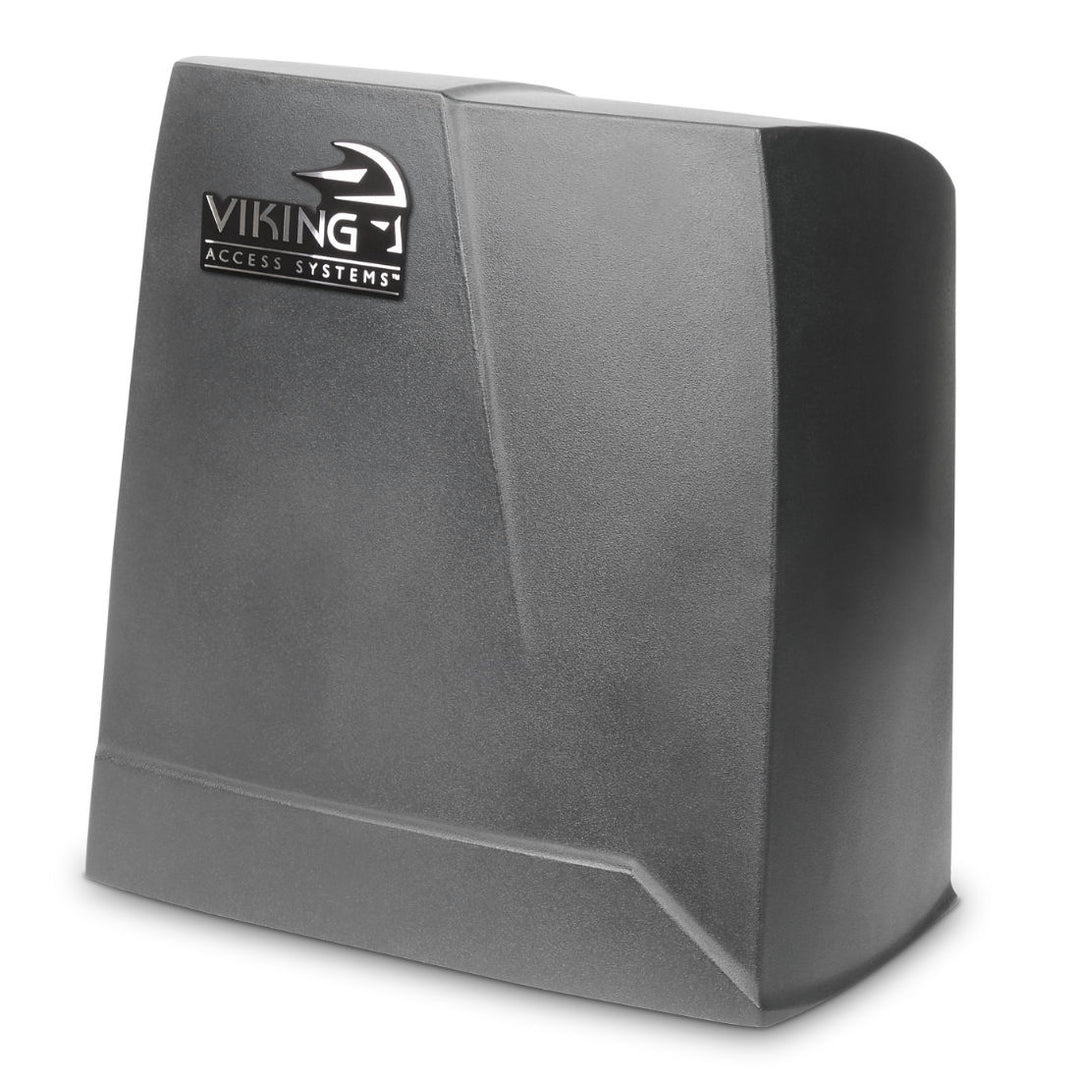

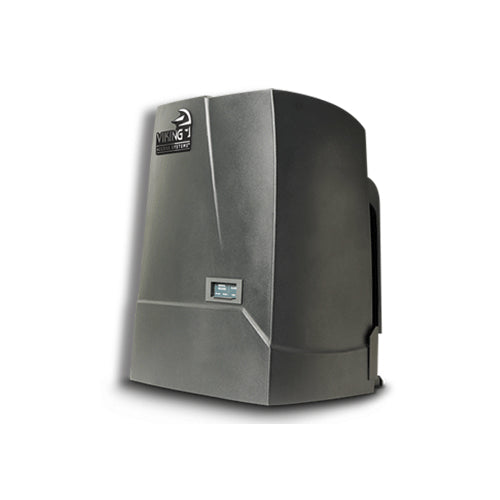

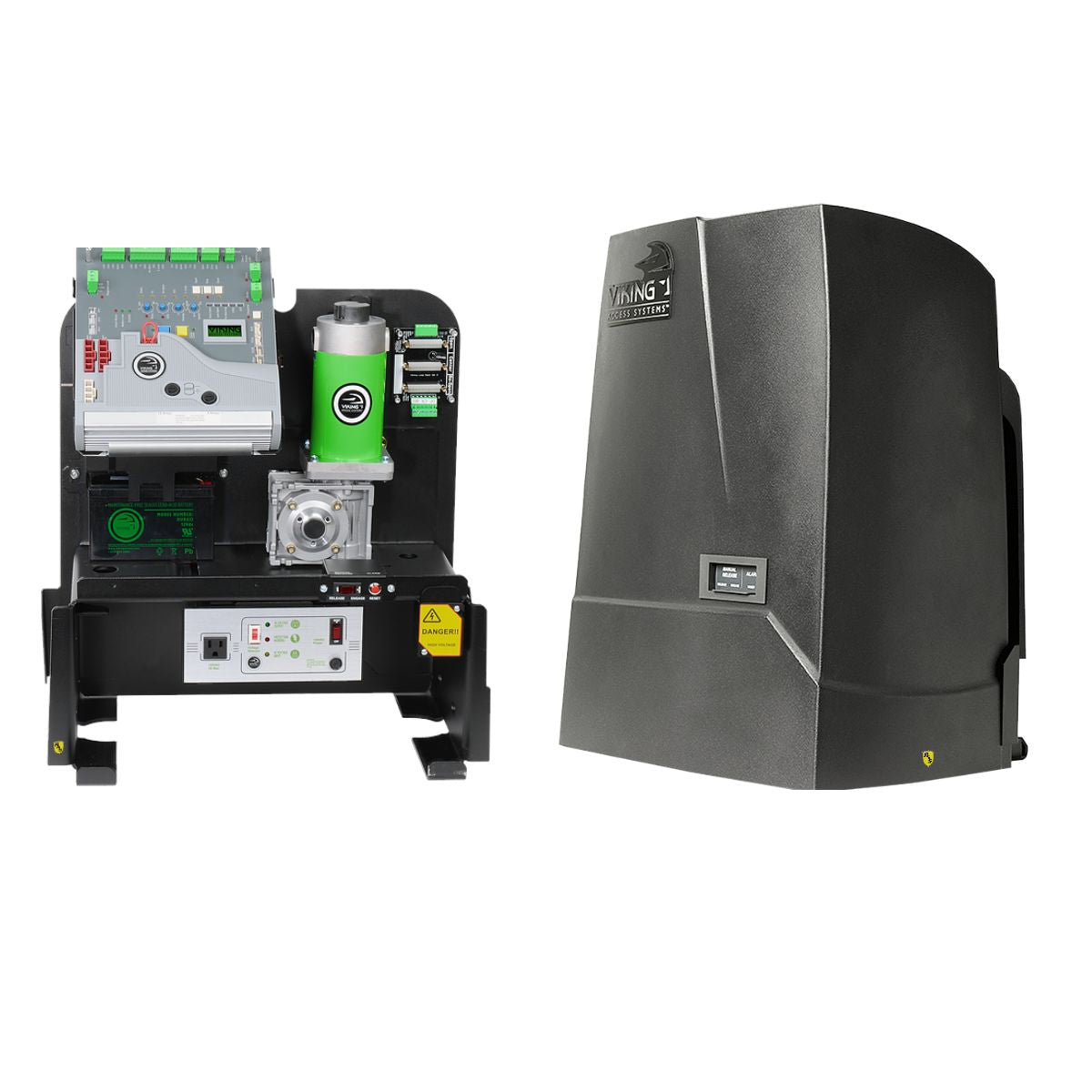

Viking VA-L3SPS NX UL Next Generation Slide Gate Opener
- SPS model
- Safety photoeye required
- Max gate size: 40ft
- Max gate weight: 1,200 lbs.
The Viking L3 NX UL Slide Gate Opener is one the most advanced slide gate openers in the industry. The Viking L3 Slide Gate Operator have many features that include a 7 year residential and 5 year commercial warranty along with built in battery back up, and lightning protection. The Viking L3 Slide Gate Opener can move a gate that is 1200 lbs and 40 feet long.
- 7 year residential and 5 year commercial warranty
- UL 325
- Innovative fine tune adjustment
- Back drivable unit
- Soft-start and soft-stop
- Easy accessed switch for manual operation
- 120/220 VAC single phase power source
- Built in three push button station
- Built in battery backup capable
- On-board lightning protection
- Easy access to limit switches.
- Operational Voltage … 24 VDC with 1/2 H.P. Motor
- Main Power Source … 120 / 220 VAC Single Phase
- Battery … 7 AmpHr 12 VDC x 2
- Max Gate Capacity … 1200 lbs /40'
- Max Operating Speed … 12" per second
- Battery Backup … 100 Full Cycles (1000 lbs. / 20’ gate)
- Maximum Duty Cycle … 100% Continuous Cycle
- Operating Temperature … - 4° F to + 158° F
