Viking G5 NX Next Generation Dual Swing Gate Openers with Dual Control Panel

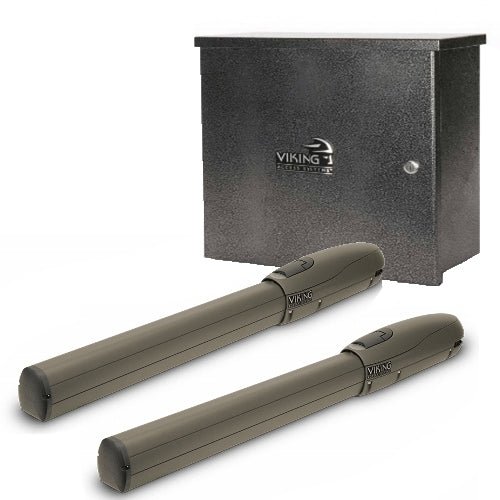

Viking g5nx dual gate opener with 2 arms and 1 control unit


SKU: g-5nx-dual


Viking G5 NX Next Generation DUAL Swing Gate Openers

  • Max gate size: 18ft*
  • Max gate weight: 2,000 lbs.*

Package includes a control panel that handles 2 arms as well as the dual arms themselves. All you need to add is a photoeye

The newly redesigned G-5™ leads the industry in linear actuator swing gate operators. This new design allows for a maximum gate capacity of 2000 lbs., 135 degrees of travel and 100% duty cycle operation. Featuring a convenient electronic manual release and pre-wired for easy and quick installation. The G-5™ is now powered by the VFlex control board, including speed control and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ offers an increased 3 year commercial or 4 year residential warranty and ETL and UL compliance.


  • Operational Voltage ....... 24 DC with 1/2HP Motor
  • Main Power Source ...... 115 / 230 AC Single Phase
  • 24 AC/DC Solar Compatible Battery ........................... 12 DC x 2
  • Max Gate Capacity ........ 2000 lbs. / 10' or 800 lbs. / 18'
  • Max Operating Speed .... 14-16 Seconds per 90°
  • Battery Backup ............... 400 Full Continuous Duty Cycle
  • (600 lbs)Maximum Duty Cycle ..... 100% Continuous Cycle
  • Operating Temperature ... -4° F to 160° F
