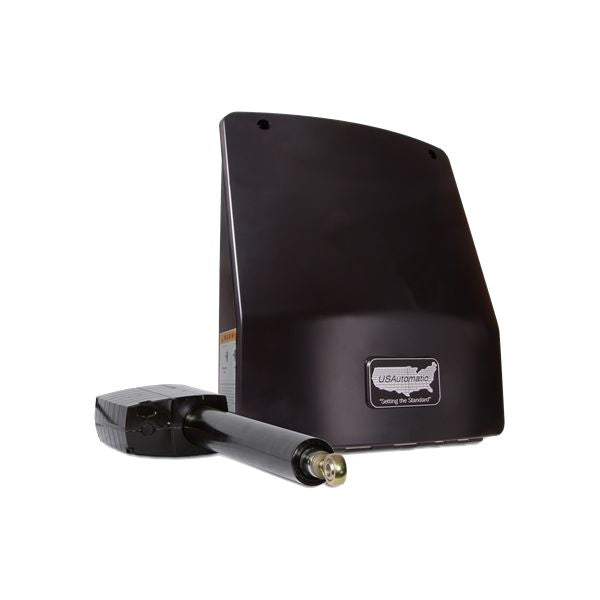

US Automatic Ranger 500 UL Dual w/LCR and 6 Watt Solar Panel

US Automatic Ranger Dual Swing Gate Opener with 6 Watt Solar Panel

US Automatic

SKU: 020513

US Automatic Ranger 500 UL Dual w/LCR and 6 Watt Solar Panel

  • Max Gate Length: 16 Feet
  • Max Gate Weight: 400 Pounds

The US Automatic Ranger 500 UL swings gates up to 13 ft and 400lbs.

Linear actuator design allows for mounting in 2 different positions making it easy to hide behind a cross member in the gate which improves the aesthetic appeal.

The US Automatic Ranger 500 UL solar performance is exceptional and unmatched in the industry, offering up to 65 cycles per day on the standard 6 watt solar panel with a full complement of solar friendly accessories and photo eyes for safety installed


  • Proudly Made in the USA!
  • 3 year warranty on all components
  • Two 2 button remotes included
  • Pre-wired solar friendly LCR dual channel receiver
  • Solar or AC charged with solar friendly smart controller
  • Designed to operate with all types of solar friendly accessories without adding solar panels
  • Independent Gate 1 and Gate 2 sensitivity adjustments
  • Battery powered providing real battery battery backup and not just 1 cycle
  • Built in timer to close
  • Photo Eye Power Management (PEPM) solar friendly software
  • For residential, light commercial, farm and ranch use
  • Single or Dual gate compatible
  • Dual gate kit includes water tight junction box and wirenuts with 35 feet of cable
  • Hinged control box cover
  • Bolt on hardware kit available


  • Power Input: AC or Solar Charged
  • Maximum Gate Length: 16 Feet
  • Maximum Gate Weight: 400 Pounds
