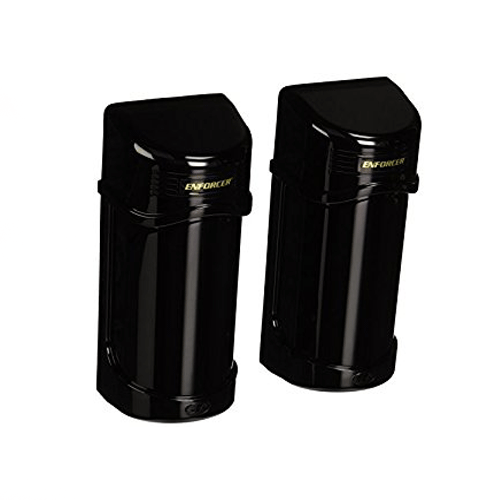

Seco-Larm Enforcer E-960-D90Q Long Range Photo Beam Detectors
ENFORCER Twin Photobeam Detectors with Laser Beam Alignment
E-960-D90Q - 90ft (30m) outdoors, 190ft (60m) indoors
Built-in laser beam alignment system speeds accurate, reliable positioning.
Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use.
Anti-frost system so that beam functions even in extreme conditions.
Automatic input power filtering with special noise rejection circuitry.
NC/NO alarm output.
N.C. tamper circuit included.
Non-polarized power inputs.
Quick, easy installation with built-in laser beam alignment system.
Interruption time adjustable for nearly all situations.
Detection method Simultaneous break of 2 beams
Interrupt speed* 50msec~700msec (variable)
Alarm output NO./NC. relay, 1A@120VAC
Tamper output NC. switch, 1A@120VAC
Alarm LED Red LED (Receiver) ON: When an alarm is initiated
Tuning LED Yellow LED (Receiver) ON: When alignment is successful
Operation LED Green LED (transmitter and receiver) ON: When power is applied.
Laser wavelength 650nm.
Laser output power 5mW.
Alignment angle Horizontal (+/-)90º, Vertical: (+/-)5º
Operating temperature -13º~+131º F (-25º~+55º C)
Weight 2.47-lb (1.12kg)
Case PC Resin
