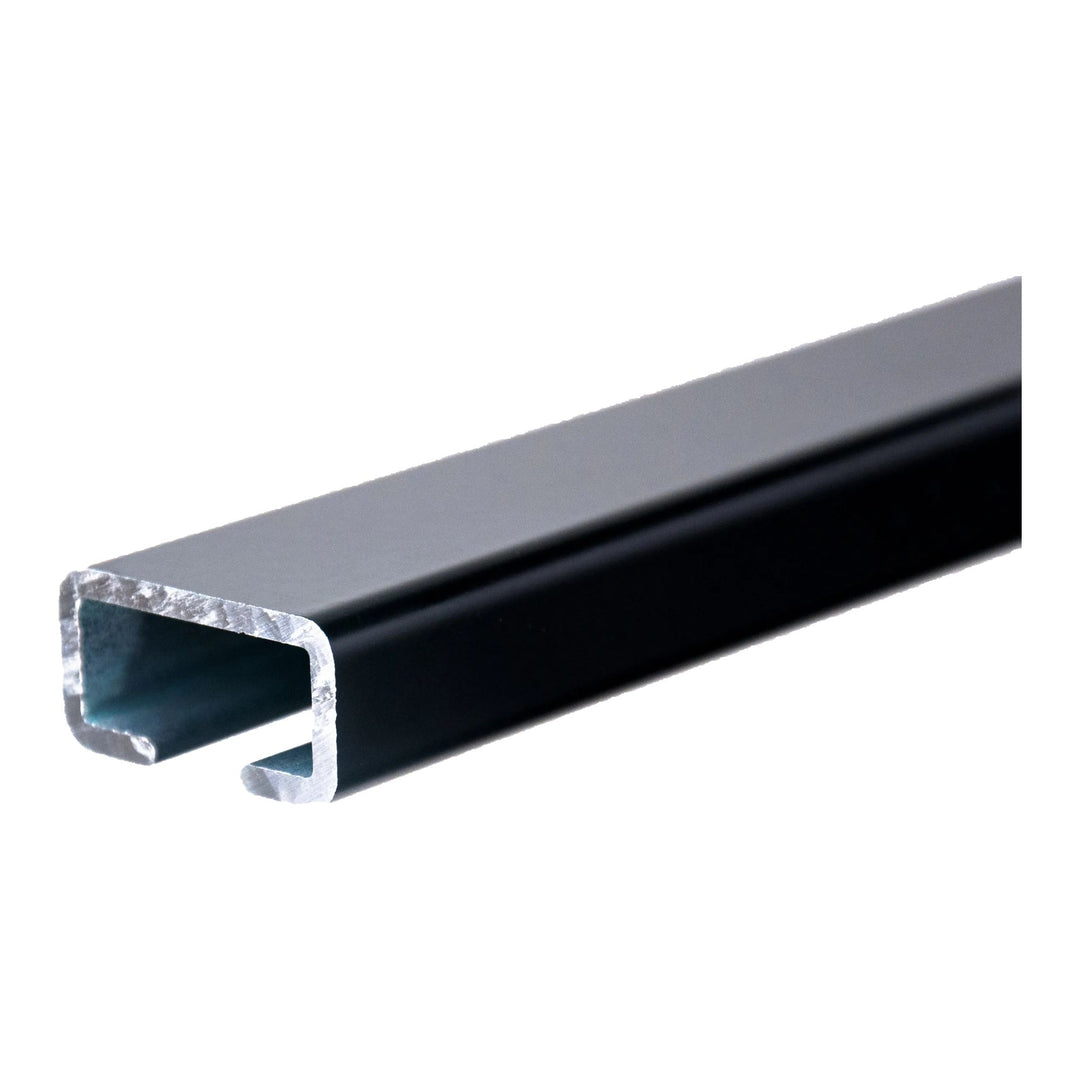

MillerEdge ME120-C Mounting Channel

Aluminum mounting channel for Miller Edge slide-in style Sensing Edges.

Features

Flat profile
0.5”H x 1”W
Aluminum

Instructions

Place the ME120-C aluminum channel in desired location on leading edge of gate, or fixture. Make sure the mounting surface is clean and flat.
Drill a 1/8” diameter hole, starting 3” from the end of the mounting channel every 24” through the bottom of the channel into the mounting surface. The holes should be drilled 1” deep or through the gate tubing.
Attach mounting channel to surface with screws. If mounting surface is metal, use #8 x 1” long flat head screws.
Alternate mounting methods may be used as seen fit by the door, gate or fixture manufacturer.
Slide the sensing edge into the ME120-C channel.
For vertical mounting: Drill a 1/8” diameter hole through the side of mounting channel, 2” from the top. Screw in #10 x 1/4” pan head tapping screws.
For horizontal mounting: Drill 1/8” diameter hole in the side of the ME-120-C Aluminum Channel, 2” from the top. Screw in #10 x 1/4” pan head tapping screws. This will hold the sensing edge in place and prevent it from sliding out of the ME-120-C channel.
