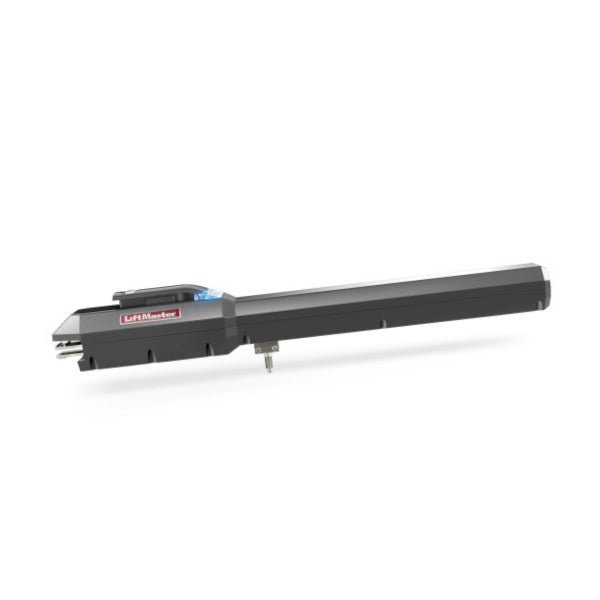

Liftmaster LA500DCS Swing Gate Opener Secondary Arm with Cable

LiftMaster

$779.97 $799.97
SKU: liftmaster-la500dcs

LA500DCS Secondary Arm with Hardware and Cable

The Liftmaster LA500DCS Secondary Arm is a replacement arm for the  Liftmaster LA500 system. It will move a gate that is either 18ft or weighing up to 1200 pounds. It will open up to 90 degrees in 15-17 seconds.  Before you purchase make sure that you need to the secondary arm and not the primary arm. The secondary arm will not work as a primary arm.

Package Includes:

1 - Liftmaster LA500 Secondary Arm
1 - Harness for secondary arm

Features:

SOLAR-READY ULTRA-RELIABLE SYSTEM
WIRELESS DUAL-GATE COMMUNICATION
BI-PART DELAY
ANTI-TAILGATE
PRE-MOTION WARNING ALARM
SYNCHRONIZED CLOSE

Specifications:

POWER: Full-time AC-run operation 120V/230V Single Phase
ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C)
UL USAGE CLASSIFICATION: I, II, III, and IV
GATE TRAVEL SPEED: 90-degree opening in 15-17 seconds.

Construction:

P3 MOTOR: 24VDC continuous-duty motor
OPERATOR DUTY RATING: Continuous duty, 300 cycles per day
CHASSIS: Commercial-duty aluminum die-cast housing
WORM GEAR REDUCTION: Precision-machined all-metal gear in contained lubrication housing
OPERATOR WEIGHT: Actuator arm 35 lbs.

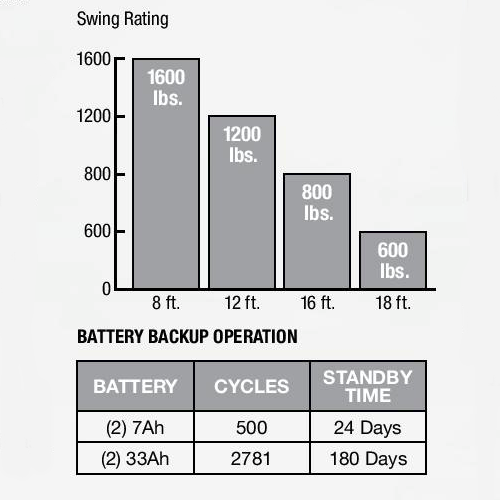

RECOMMENDED CAPACITIES: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs
