Liftmaster LA412PKGU Dual 12VDC Solar
Liftmaster LA412PKGU Dual
The Liftmaster LA412PKGU Dual linear actuator swing gate opener

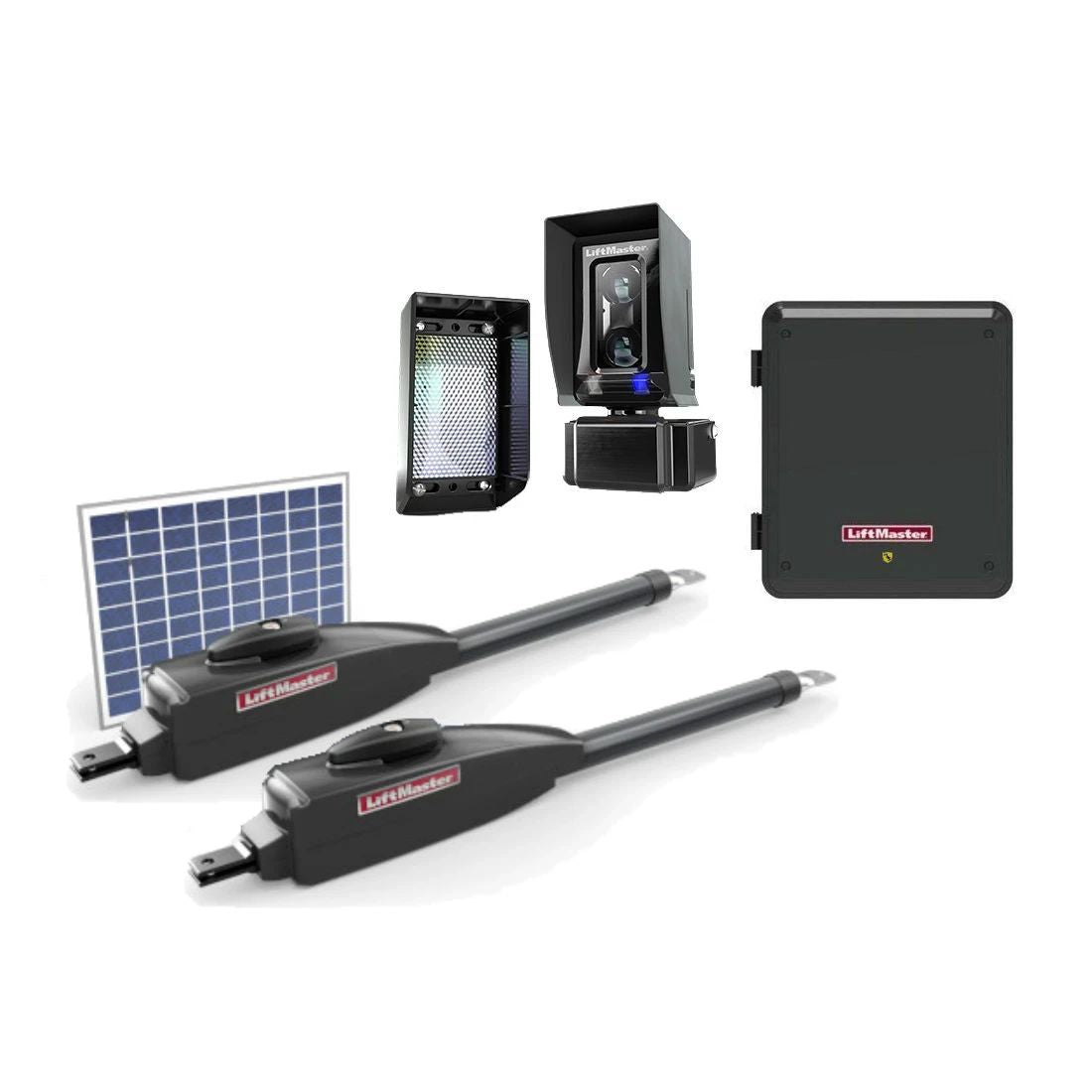

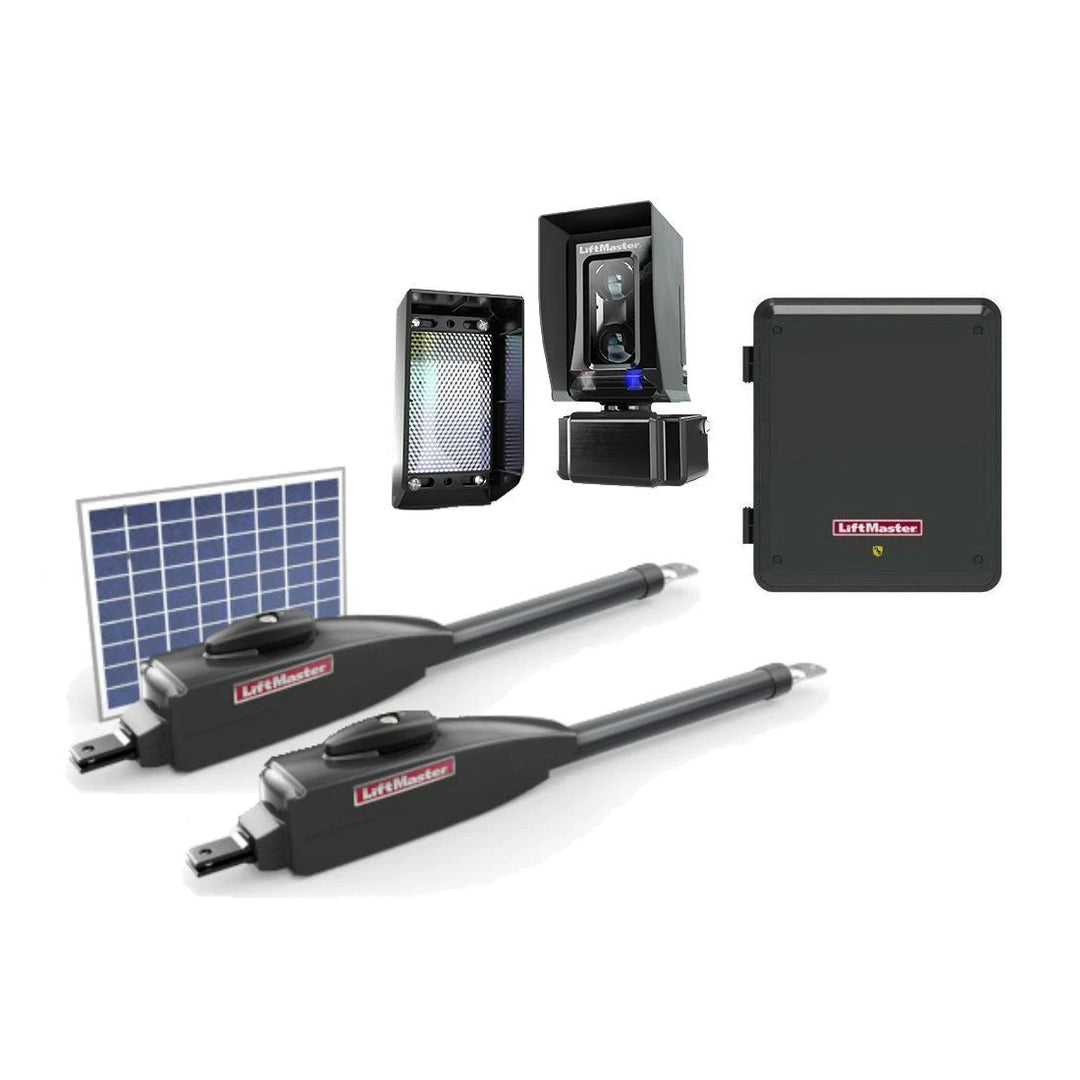

LA412PKGU Dual Package comes with:
2 - LA412DC Linear Actuator Arm with Brackets
1 - Control Box with Circuit Board
1 - Monitored Safety Device (Liftmaster LMRRU Photo Eye)
2 - Liftmaster 811lm remotes
Liftmaster LA412PKGU Dual Residential Swing Gate Opener
The Liftmaster LA412PKGU Dual is designed to be used in residential locations that does not have easy access to 120V power, or just because you want to go solar and help the environment. The Liftmaster LA412 has many features like a super efficient solar power system. other features include: soft start/stop and mid-travel reversal, keyed manual disconnect, inherent reversing sensor, fire department compliance, commercial-duty cast aluminum housing with heavy-duty DC motor, and surge suppression. The LA412 is also ideal for ornamental or large swing gates and rural gate applications. The LA412 Swing Gate Opener has a 2 year warranty.
LED diagnostic display
Solar optimized ultra-reliable system
Wireless dual gate communication
With optional expansion board
Programmable auxiliary relays
Security + 2.0 on board radio receiver
POWER: Solar-powered system accepts up to 30W 12V solar panels
ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
MONITORED SAFETY INPUTS: 3 Main Board, 3 Optional Expansion Board.
TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C).
UL USAGE CLASSIFICATION: I, II, III, and IV
GATE TRAVEL SPEED: 90-degree opening in 23-24 seconds.
P3 MOTOR: 12VDC continuous-duty motor
WORM GEAR REDUCTION: Precision machined all-metal gear drive
OPERATOR WEIGHT: Actuator arm 19 lbs. Standard control box 13 lbs. • Includes (2) 7Ah batteries

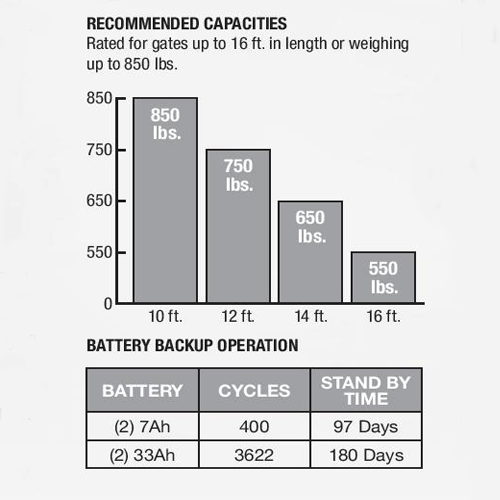

RECOMMENDED CAPACITIES: Rated for gates up to 16 ft. in length or weighing up to 850 lbs.
