Liftmaster LA400PKGU Dual 24VDC

Liftmaster Gate Opener - Liftmaster LA400PKGU Dual Swing Gate Opener with monitored safety device and a FREE remote

LiftMaster

$1,296.96
SKU: la400pkgu-dual


Liftmaster LA400PKGU Dual 24VDC

  • Max gate size: 16ft
  • Max gate weight: 850 lbs.

The Liftmaster LA400PKGU Dual is a residential linear actuator with control panel

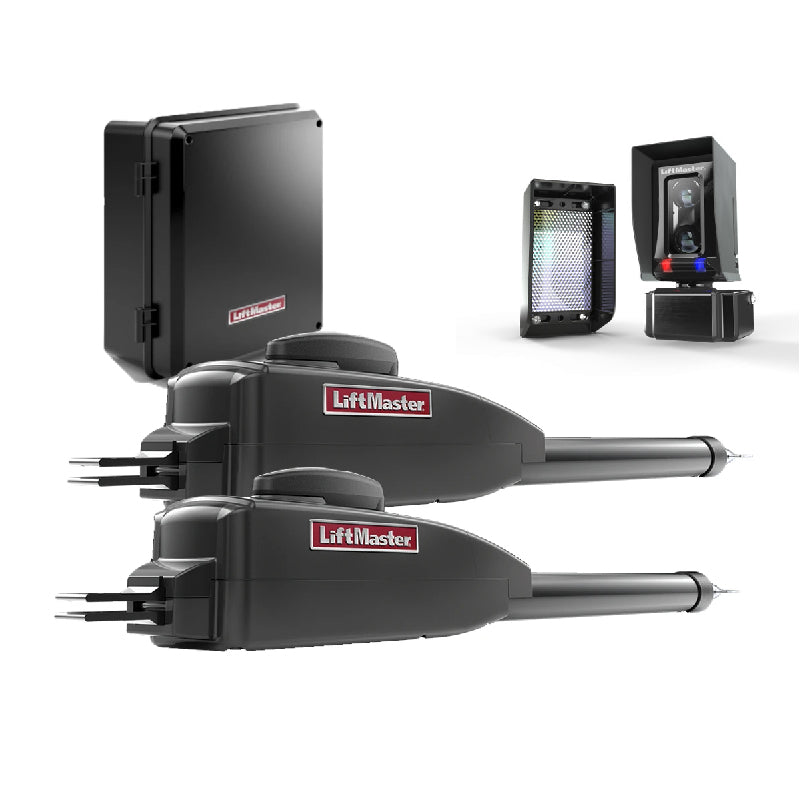

LA400PKGU Dual package includes:

     2 - LA400 arms with mounting brackets
     1 - Control panel with circuit board
     1 - Built-in radio receiver
     1 - monitored safety device (photo eye)
     1 - FREE Liftmaster 811lm remote control

Liftmaster LA400PKGU Dual 24VDC Residential Swing Gate Opener

The Liftmaster LA400 Dual is designed for dual swing gates in residential areas. The LA400 Dual are also commonly used for gates on ranches, farms, and driveways.  The Liftmaster LA400 Dual has a commercial-duty cast aluminum housing with heavy-duty DC motor powerful enough to perform in the most demanding applications.  The LA400 Dual has applications that include; Keyed manual disconnect, Fire department compliance, Inherent reversing sensor, Soft start/stop and mid-travel reversal, Surge suppression, and Party Pass that allows for the gates to be held open for an extended period of time, ideal for parties. That LA400 Dual is one of our most popular swing gate operators that we offer.

Features:

  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • BI-PART DELAY
  • WIRELESS DUAL-GATE COMMUNICATION (need extra controller)
  • LED DIAGNOSTIC DISPLAY
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER
  • HOMELINK® COMPATIBLE
  • SYNCHRONIZED CLOSE

Expansion Board Features: (not included in package)

  •  PROGRAMMABLE AUXILIARY RELAYS
  •  ANTI-TAILGATE
  •  QUICK CLOSE

Specifications:

  • POWER:  24VDC or solar power. 120/230V Single Phase (Standard control box).
  • ACCESSORY POWER:  24VDC 500mA output. Switched and un-switched power.
  • MONITORED SAFETY INPUTS:  3 Main Board, 3 Optional Expansion Board.
  • TEMPERATURE SPECIFICATIONS:  -4°F (-20°C) to 140°F (60°C).
  • UL USAGE CLASSIFICATIONS:   I, II, III, and IV.
  • GATE TRAVEL SPEED:  90-degree opening in 15-17 seconds.

Construction:

  • P3 Motor:  24VDC continuous-duty motor.
  • Operator Duty Rating:  100 cycles per day.
  • Worm Gear Reduction:  Precision machined all-metal gear drive.
  • Operator Weight:  Actuator arm 19 lbs, Standard control box 13 lbs. • Includes (2) 7Ah batteries.

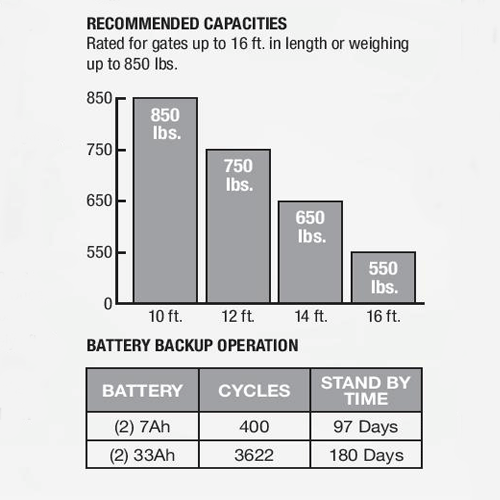

  • Recommended Capacities:  Rated for gates up to 16 ft in length or weighing up to 850 lbs per arm.
  • Dual gate openers can open dual gates with the same specs
