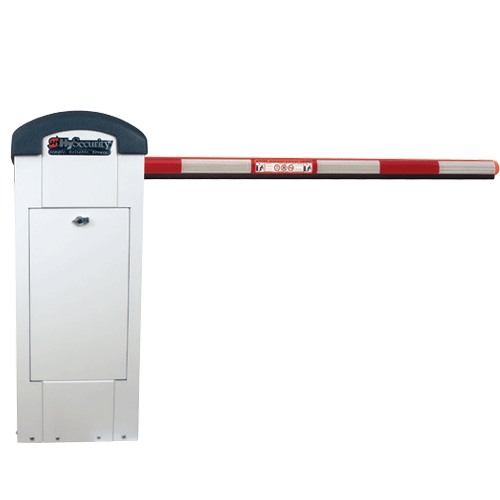

HySecurity StrongArmPark DC 10 Parking Barrier Arm Operator

HySecurity Barrier Gate Opener - HySecurity  StrongArmPark DC 10 Parking Barrier Arm Operator

HySecurity

$1,844.97
SKU: hysecurity-strongarmpark-dc10

HySecurity StrongArmPark DC 10 Parking Barrier Arm Operator

The HySecurity STRONGARMPARK DC 10 is an extremely reliable, continuous duty, electromechanical, UPS battery backed-up parking barrier arm operator designed for millions of maintenance-free cycles in access and revenue control applications. Every StrongArmPark DC™ operator includes an advanced HyProtect™ breakaway arm mount and kill switch, which may reduce the cost of arm or operator damage due to vehicle strike. Safety features include resilient bumper along base of arm and dynamic reversing feature in operator to reduce possibility of injury or vehicle damage.  Cycle up to 10 ft arms, starting and stopping gracefully with three field-adjustable Open/Close speeds: 1.5/2/2.5 seconds.

Note: Attachment plates for 1 x 4 inch wood and 2.5 inch square PVC aftermarket arms are available. Standard aluminum arm bracket ships with operator. See "StrongArmPark DC Options & Accessories" for available arm configurations. Arm not included!!!!

Specs:

Duty Cycle Continuous*
Open/Close Time 3 speeds: 1.5/2/2.5 seconds. Field adjustable
Arm Length Max Up to 10 ft (3 m) standard length

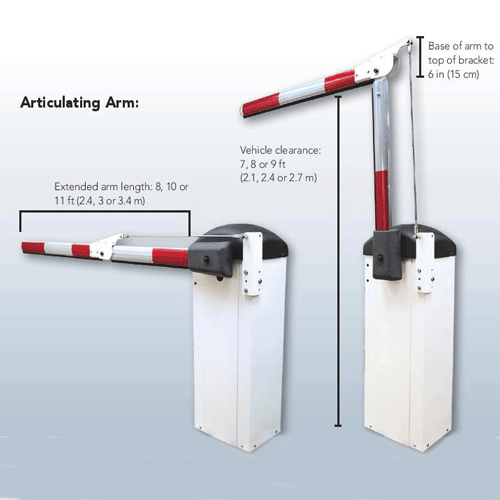

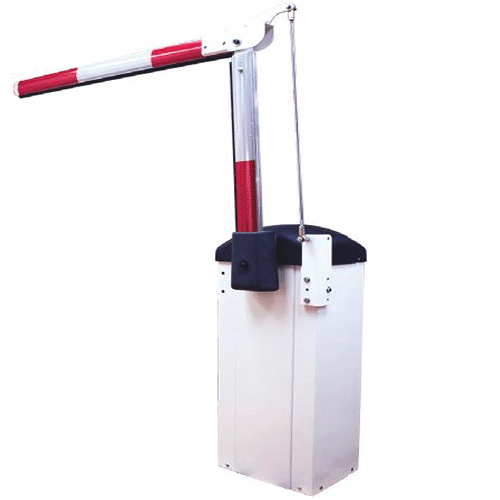

Arm Design Aluminum oval arm with bumper, lights, HyProtect™ breakaway arm mount & kill switch (standard). Optional articulating aluminum arm with HyProtect™ breakaway arm mount & kill switch; 7 ft clear/8 ft extended (2.1 m/2.4 m); 8 ft clear/10 ft extended (2.4 m/3 m); 9 ft clear/11 ft extended (2.7 m/3.4 m). Lights optional.
Full Open Angle Arm full open angle: Adjustable 90º ± 10º
Handing Left handing standard. Easy to convert to right handing in field.
Horsepower 1/2 hp
Drive Electromechanical
Uninterruptible Power Supply Two 8 Ah batteries. Operates for thousand plus cycles after AC power loss.* Field configurable to fail open or secure when batteries deplete.
Voltage Input 115VAC, 3A, 60/50Hz or 208-230VAC, 1.5A, 60/50Hz
Accessory Power 12VDC and 24VDC 1A each
Temperature Rating -13º to 158º F (-25º to 70º C) No heater necessary
Communication USB, RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory
User Controls Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
Relays One configurable user relay: 250VAC, 10A electromechanical. Optional Hy8Relay™ for 8 additional relay outputs
ETL Listed (UL325) Usage Class I, II, III, IV
Finish Zinc plated with powder coating
Cycle Tested 2 million cycles
Warranty 2 year
* *The operator’s normal duty cycle and the actual number of arm cycles available from battery depends upon arm length/weight, battery size, state of charge and health, ambient temperature, accessory power draw and frequency of arm cycles during power outage.

Operator Components

Model
StrongArmPark DC 10
Part Number
StrongArmPark DC 10
Est. Ship Weight
170 lb
Shipping Dimensions
47"w x 26"d x 20"h
Shipping Class
70
