HySecurity SlideDriver 80
HySecurity SlideDriver 80
- Nationwide shipping
- Freight | UPS | USpS
- Secure payments
Regular price$29,99997
$29,999.97
/
***Custom Made; Call For Price and Availability***

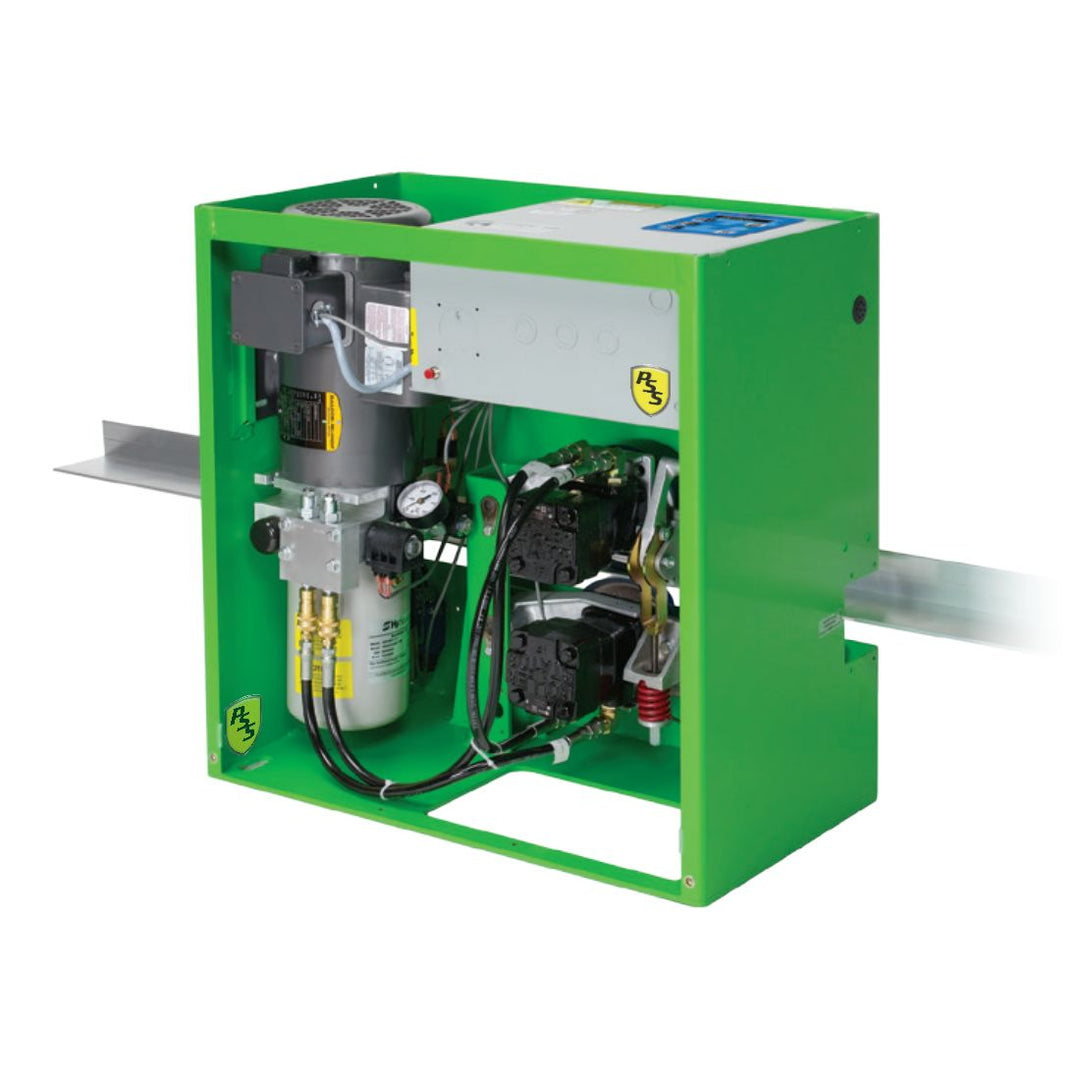

HySecurity SlideDriver 80
- Max gate weight: 8,000 lbs.
- Max gate size: any length
Cycle up to 8,000 lb gates of any length at 1 ft per second
Operator Specifications
| Duty Cycle | Continuous |
| Travel Speed | 1 ft/s (30 cm/s) |
| Gate Length | Limited only by weight |
| Gate Capacity | up to 8,000 lb (3,629 kg) |
| Operator HP | 2 hp |
| Drive Type | Hydraulic |
| Pull Force | 600 lb (272 kg) |
| UPS | See SlideDriver 80 UPS |
| Default Single Phase Voltages | 208/230V 60Hz; 220V 50Hz* |
| Optional Three Phase Voltages | 208/230/460V or 575V* 60Hz; 220/380/440V 50Hz* |
| Temperature Rating | -40° to 158° F (-40° to 70° C) No heater necessary |
| Communication | RS-232, RS-485, Ethernet/fiber using optional HyNet™ Gateway accessory |
| User Controls | Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character, OLED display or a PC using S.T.A.R.T. software. |
| Relays | Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs |
| App Class | Usage Class III, IV |
| Enclosure | n/a |
| Finish Type | Zinc plated with powder coating |
| Warranty | 5 year |
