HySecurity Slide-Driver 15 222-SS-ST Hydraulic Slide Gate Opener

HySecurity

$6,699.97
SKU: hysecurity-15-222-ss-st

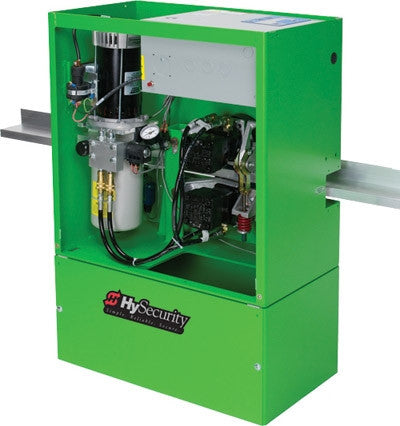

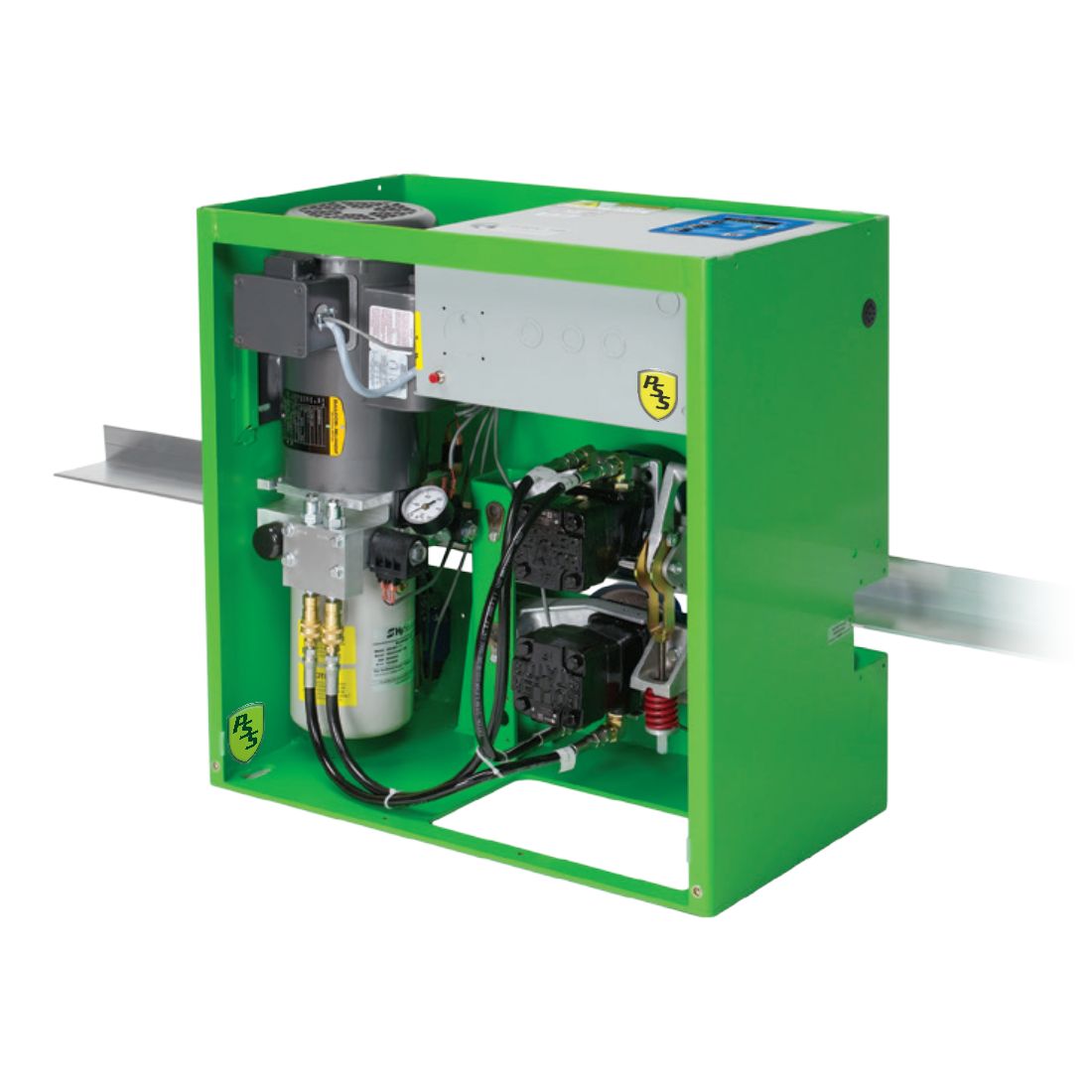

HySecurity Slide-Driver 15 (222-SS-ST) Hydraulic Slide Gate Opener

The HySecurity SlideDriver 15 is a Hydraulic Operator that can open a gate that weighs up to 1500 lbs at any length.   It will open and close a gate at a speed of 1 ft per second. The SlideDriver is built with a 12 gauge steel chassis that protects the motor from vandalism and tampering. This is a heavy duty operator that is built for commercial use, but it is not uncommon to put this on a residential gate.  This is a top of the line operator that is commonly used on heightened security locations.  Comes with a 5 year manufacturer warranty.

Please call for voltage and phases.

Specs:

Duty Cycle Continuous
Rate of Travel 1 ft/s (30 cm/s)
Gate Length Max Limited only by weight
Gate Weight Max Up to 1,500 lb (680 kg)
Horsepower 1 hp
Drive Wheels Two 6" (15 cm) AdvanceDrive wheels
Drawbar Pull 300 lb (136 kg)
Uninterruptible Power Supply See SlideDriver 15 UPS or optional 230V AC Power Supply w/HyInverter AC™
1 Phase Power 115/208/230V 60Hz; 110/220V 50Hz*
3 Phase Power 208/230/460V or 575V* 60Hz; 220/380/440V 50Hz*
Temperature Rating -40º to 158º F (-40º to 70º C) No heater necessary
Communication RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory
User Controls Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character, OLED display or a PC using S.T.A.R.T. software.
Relays Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
ETL Listed (UL325) Usage Class I, II, III, IV
Enclosure n/a
Finish Zinc plated with powder coating
Warranty 5 year
* *Refer to Installed Options on pricing for all 50Hz voltages and 575V 3Ø, which are special order.
** **The operator’s normal duty cycle and the actual number of gate cycles available from battery depends upon gate resistance to travel, cycle length, battery size, state of charge and health, ambient temperature, accessory power draw and frequency of gate cycles during power outage.
