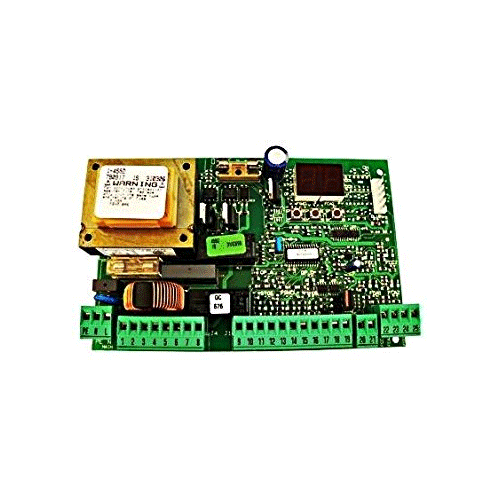

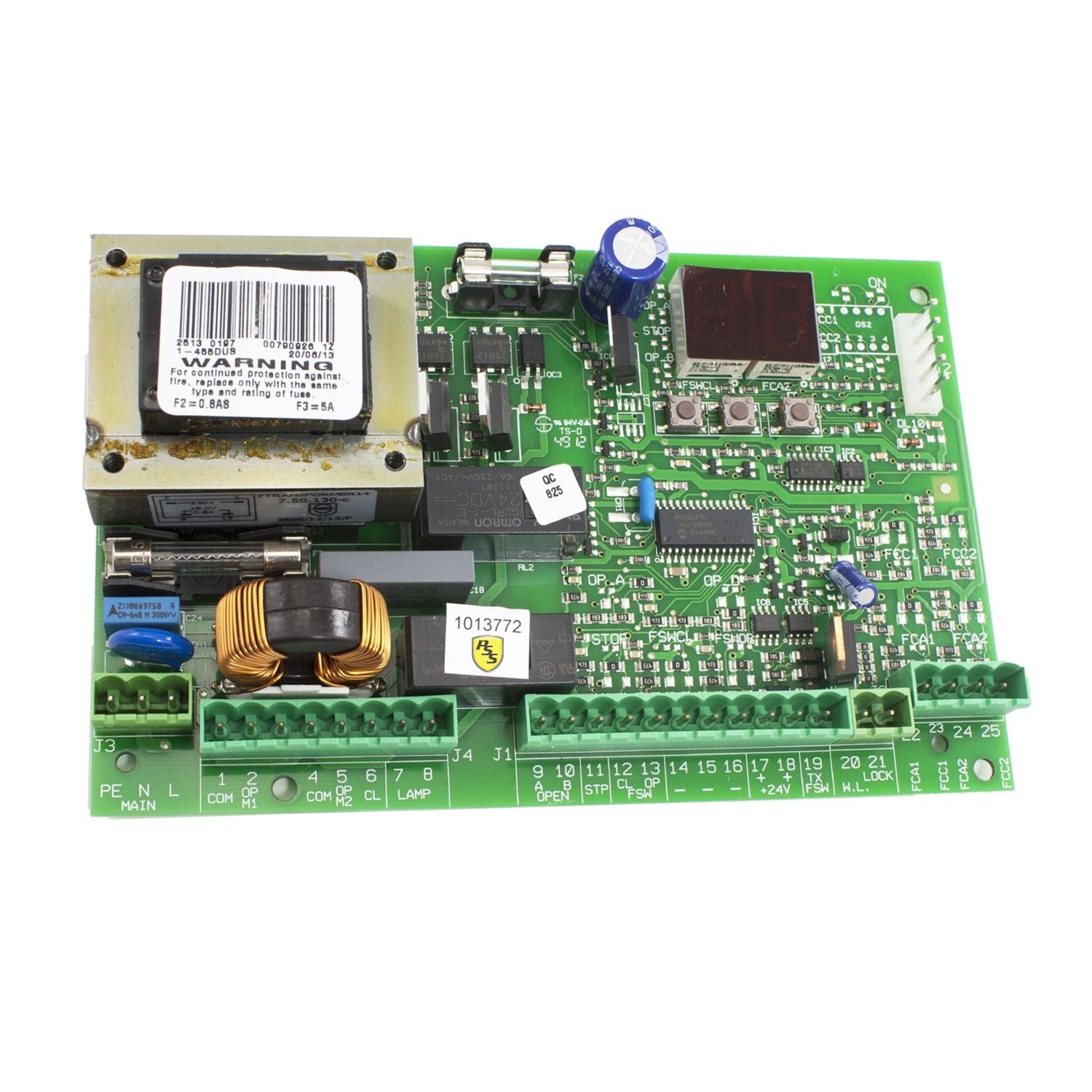

FAAC 455D Circuit Board 120V


SKU: faac-455d-790919

FAAC 455D Circuit Board 120V

The FAAC 455D control panel can operate a single leaf or master/slave gate system. Control Panel Replacement only, does not include enclosure.


  • Operates a single leaf or a bi-parting gate
  • Provides opening and closing "slow down, soft stop" convenience
  • Absorbed power: 10W
  • Motor max load: 800W
  • Accessories max load: .5 amp
  • Electric lock max load: 15 Va
  • Opening/closing time: 0 to 120 seconds (programmable)
  • Pause time: 0 to 4 minutes (programmable)
  • Closing leaf delay: 0 to 4 minutes (programmable)
  • Opening leaf display: 2 seconds (can be disabled)
  • Torque: adjustable from 0 to 50 levels
  • On board programming via push button
  • Easy interconnection of actuating and reversing devices
  • Open/Hold open function
