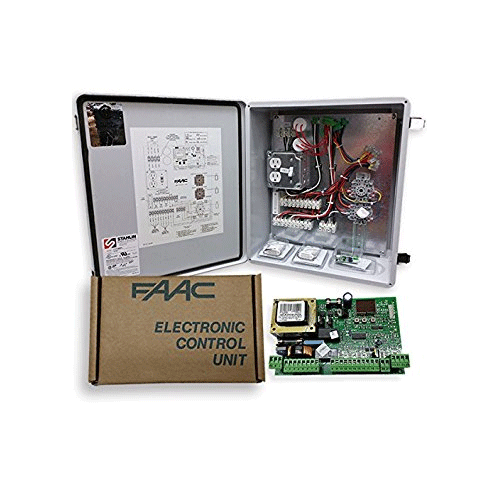

FAAC 455D-115F+ Control Panel 115VAC


SKU: faac-455d-115f

FAAC 455D-115F+ Control Panel 115VAC

The FAAC 455D control panel can operate a single leaf or master/slave gate system.

FAAC 455D features:
Operates a single leaf or a bi-parting gate
Provides opening and closing "slow down, soft stop" convenience
Power supply: 115 VAC (+/- 10%)
Absorbed power: 10W
Motor max load: 800W
Accessories max load: .5 amp
Electric lock max load: 15 Va
Operating temperature: -78F to +131F
Protection fuses: .800 mA (accessories) 5 amp (motors)
Operating logics:
A (automatic): signal to open, gate closes automatically after selected timed pause
S (security): similar to A logic, useful in reducing tailgating
E (semi-automatic): garage door-like operation; signal to open, signal to close
EP (semi-automatic): similar to E logic, but second signal stops gate, third signal reverses gate
B (manned, pulsed): designed for guard station use, requires 3-button switch (pulsed) to open, close and stop gate
C (manned, constant): similar to B logic, but 3-button switch requires constant pressure on each button
Opening/closing time: 0 to 120 seconds (programmable)
Pause time: 0 to 4 minutes (programmable)
Closing leaf delay: 0 to 4 minutes (programmable)
Opening leaf display: 2 seconds (can be disabled)
Torque: adjustable from 0 to 50 levels
On board programming via push button
Easy interconnection of actuating and reversing devices
Open/Hold open function
