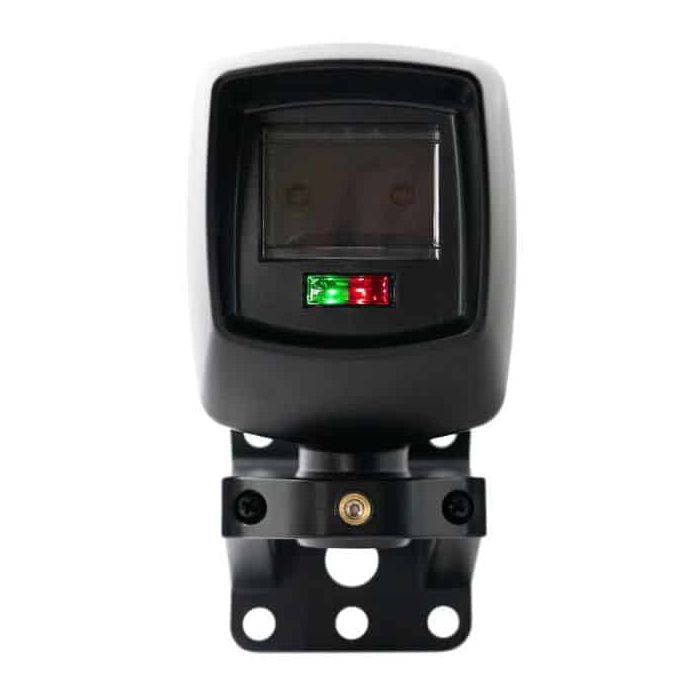

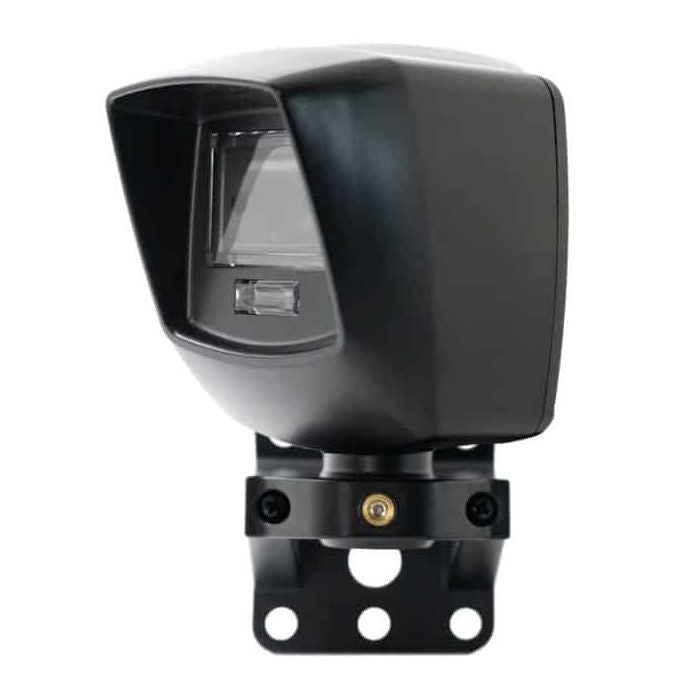

EMX IRB-RET2 Retro Reflective Photoeye
The IRB-RET2 offers exceptional compatibility with all gate operators, thanks to its support for 6 UL325 monitoring methods and compatibility with non-monitored methods.The IRB-RET2 stands out from its competitors with a remarkable operating range of 60 feet, nearly double the 32.5-foot range offered by other retro reflective photoeyes. This extended range allows for enhanced flexibility in installation and positioning, providing superior performance and reliability in securing your property.
The IRB-RET2 is a retro reflective, infrared photoeye type B1 non-contact sensor for use with automatic gates and doors.The IRB-RET2 has detachable screw terminals for easier wiring. You can remove them while connecting wires, then plug them back in properly and secure them.
"Stealth Mode" is a feature that turns off the LEDs after 30 seconds when the sensor is aligned and unblocked but turns them on when obstructed. This mode helps hide the sensor from passers-by and vandals, especially at night, without affecting other functions.
This versatile device seamlessly integrates with systems using:
- UL (monitored) and non-UL (non-monitored) capability
- Operating range: 60ft
- Normally closed
- 10k resistive termination
- Two-wire pulsed (2 freq)
- Two-wire pulsed (3 freq)
- Four-wire pulsed (2 freq)
- Four-wire pulsed (3 freq) configurations
- The IRB-RET2 ensures ultimate adaptability for installers.
- Aka EMX-1122-1
