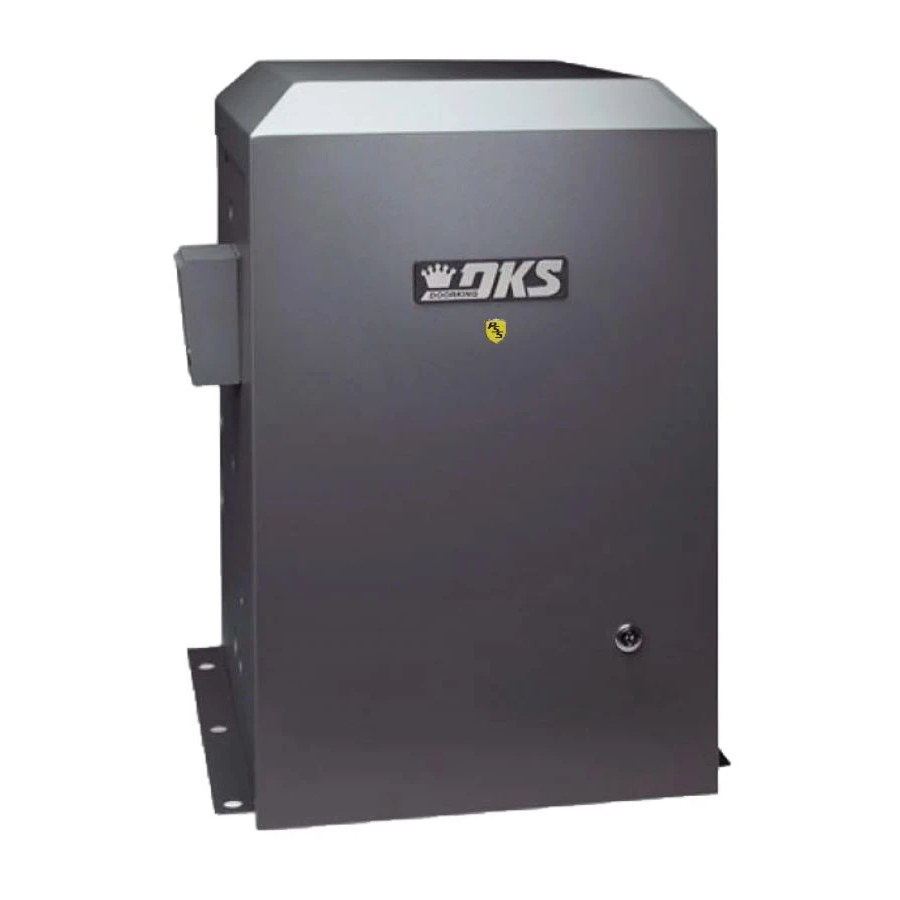

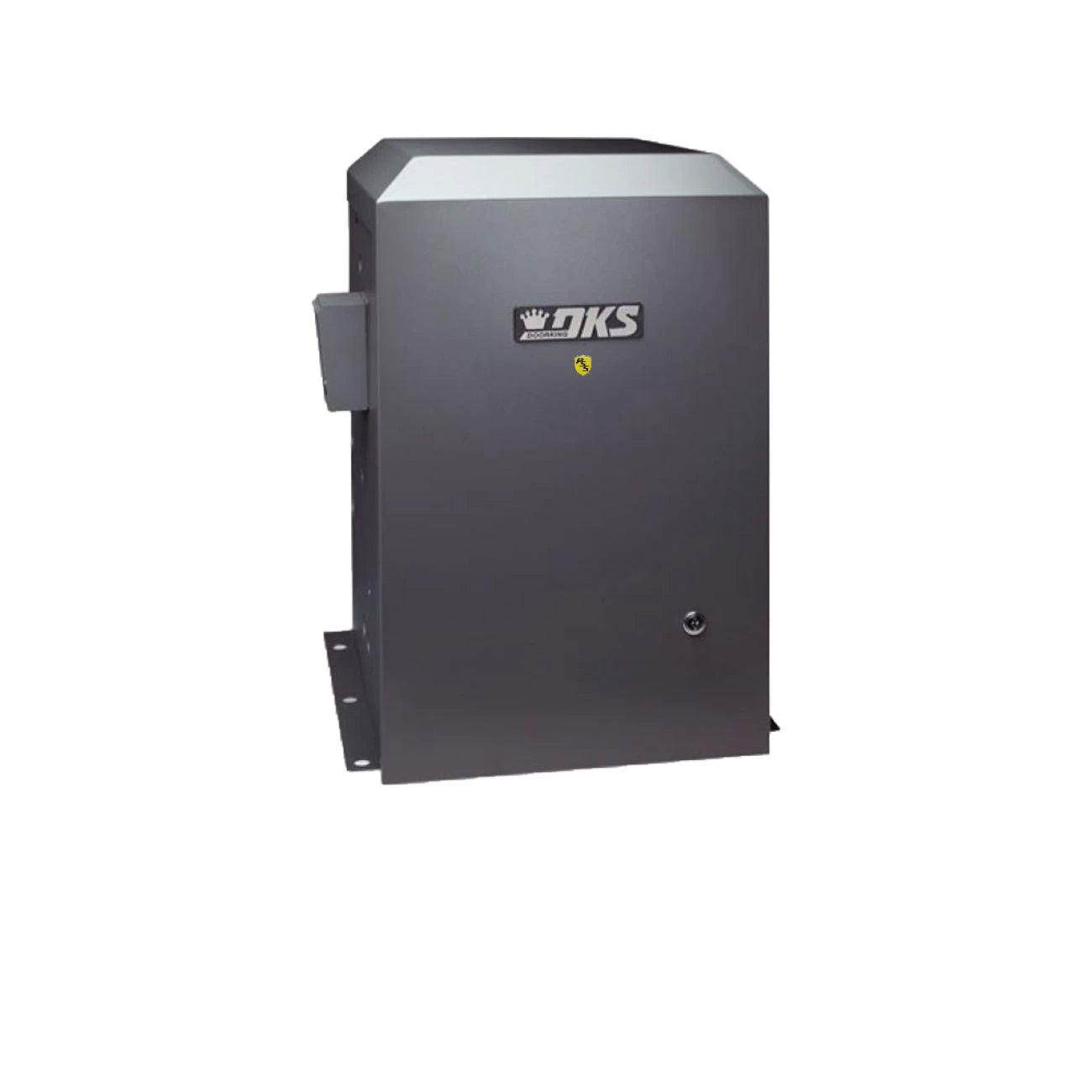

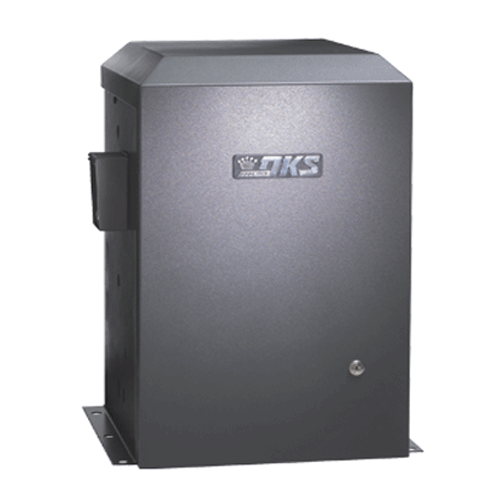

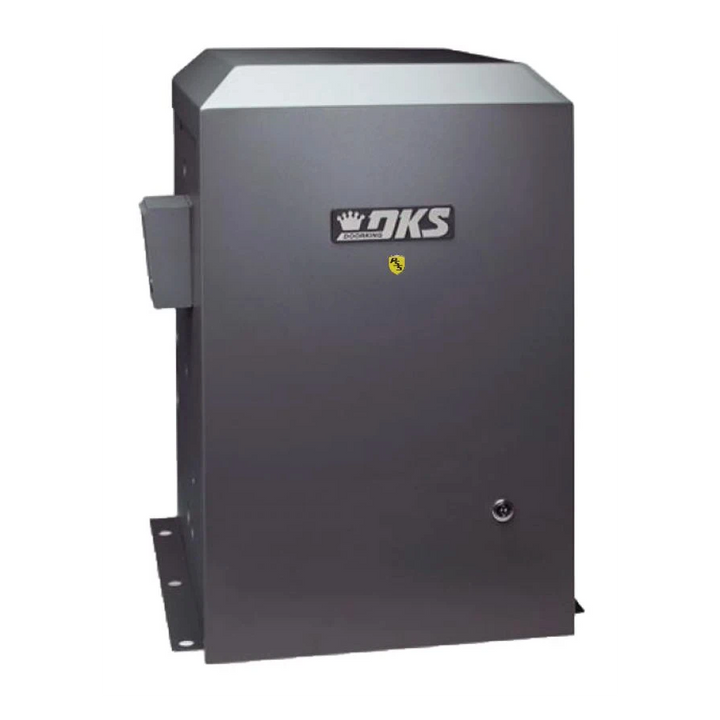

DoorKing 9150-080 Slide Gate Opener with 1hp Motor
Model 9150-080 with 1 HP Motor
Maximum gate length 45-feet. Maximum gate weight 1500 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator. If DC Convenience Open option is installed, maximum gate weight is 1300 pounds. Other external factors may affect the performance of the gate operator.)
1 HP continuous-duty motor.
115, 208*, 230*, 460* VAC (*208, 230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)

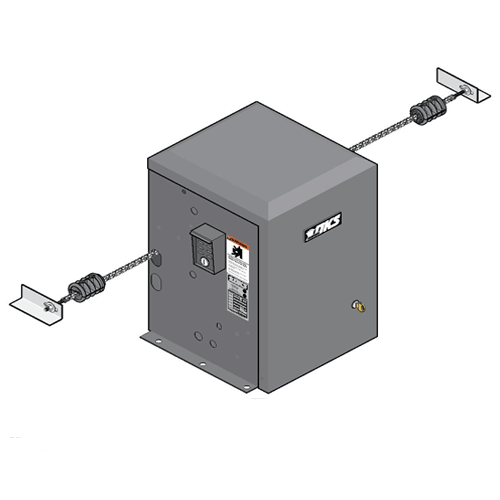

Operator is shipped with chain brackets and 20-feet of #40 chain.
Class I, II, III and IV applications.
Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, a secondary entrapment prevention device(s) is required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 15"W x 24"H x 16.5"D
