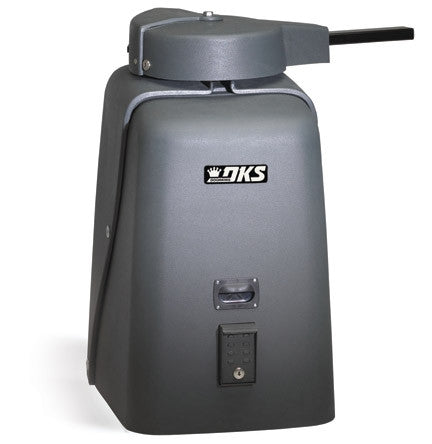

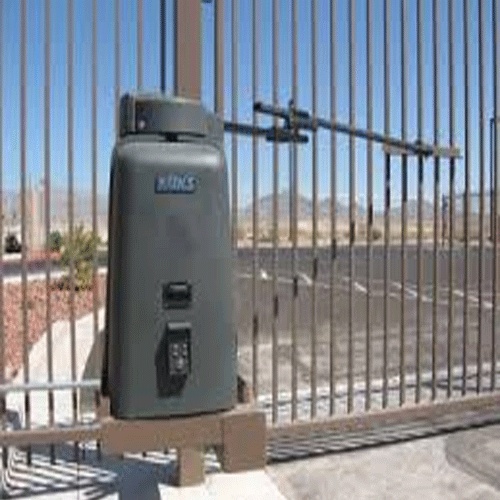

DoorKing 6500-380 Swing Gate Opener
New Model 6500-380 Vehicular Swing Gate Operator

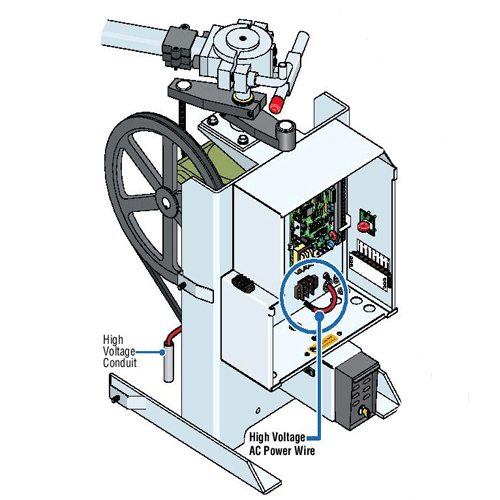

The new DoorKing 6500-380 swing gate operators are designed to operate vehicular swing gates in residential, commercial and industrial applications for both single and bi-parting gates. The unique design of the DKS 6500-080 swing gate opener allows for easy access to the electronics and mechanical areas of the operator without ever having to remove the gate arm. This simplifies installation and maintenance. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt driven gear box make this operator one of the quietest on the market today.
Adjustable, no maintenance magnetic limits
Overlap feature for bi-parting swing gate operation
Simple connection for secondary operator in bi-parting applications
Selectable shadow/reverse loop function
Magnetic lock power provided
Ports for plug-in loop detectors
Three 115 VAC convenience outlets
Gate tracker reporting output
Built-in reset switch
Built-in power On/Off switch.
Maximum gate width 18-ft. (1/2 HP) or 22-ft. (1 HP)
Maximum gate weight 700 pounds* (1/2 HP) or 800 pounds* (1 HP)
(*Assumes gate swings level and is in good condition with properly adjusted hardware)
Other external factors may affect the performance of the gate operator.)
Swings gate 90 degrees in approximately 12-14 seconds
1/2 or 1 HP continuous-duty motor
115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
Class I, II, III and IV applications
Compliant with UL 325 and 991
(Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator.
