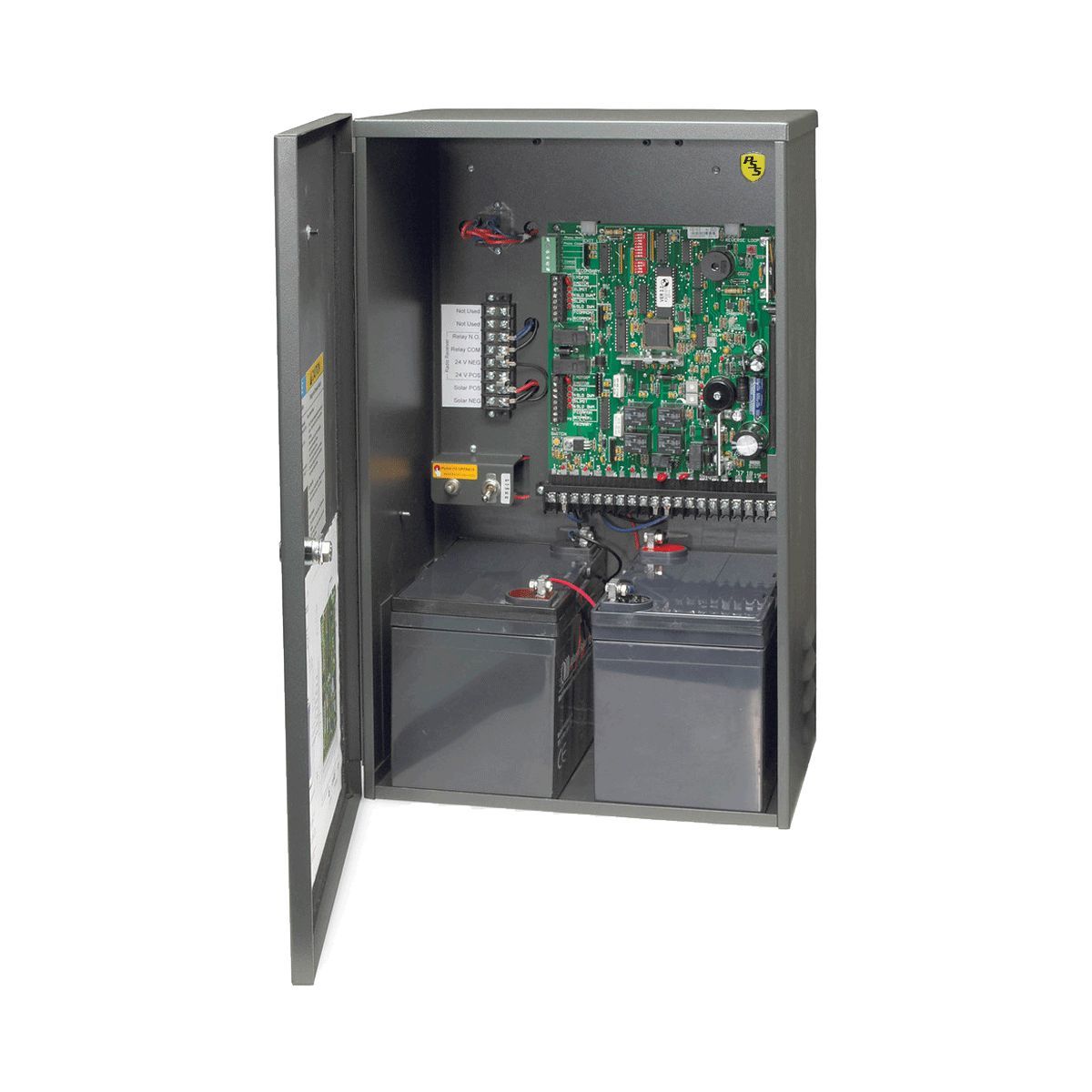

DoorKing 4302-114 Single Gate Solar Control Panel 24VDC (Opener Not Included)

DoorKing 4302-114 Single Gate Solar Control Panel 24VDC

DoorKing

$699.96
SKU: 4302-114

DoorKing 4302-114 Single Gate Solar Control Panel 24VDC

    • Two 18 amp batteries included
    • For single gate
    • 24volt Solar ready (solar panel not included)
    • Used with models 6003, 6004, 6005 and 6400

      The DoorKing 4302-114 Solar Control Panel can power swing gate operators 6003, 6004, 6005 and 6400. Our new 0.0 Amp SBPD (Pat Pend) circuit* insures that battery power is used only when the gate operator is activated. This means there is no use of battery power until the operator is engaged, which provides you with more gate operator cycles per battery charge. This is ideal for remote locations where no power is available.

      Specifications

      Solar Control Box
      • 24 VDC Input and output power
      • Basic control box allows you to provide your own batteries
      • 18 Amp/Hr control box includes two (2) 18 Ah batteries
      • Dimensions: 13"W x 8"D x 21"H
      Solar Panel needed (not included)
      • 24 Volt
      • 10 Watt
