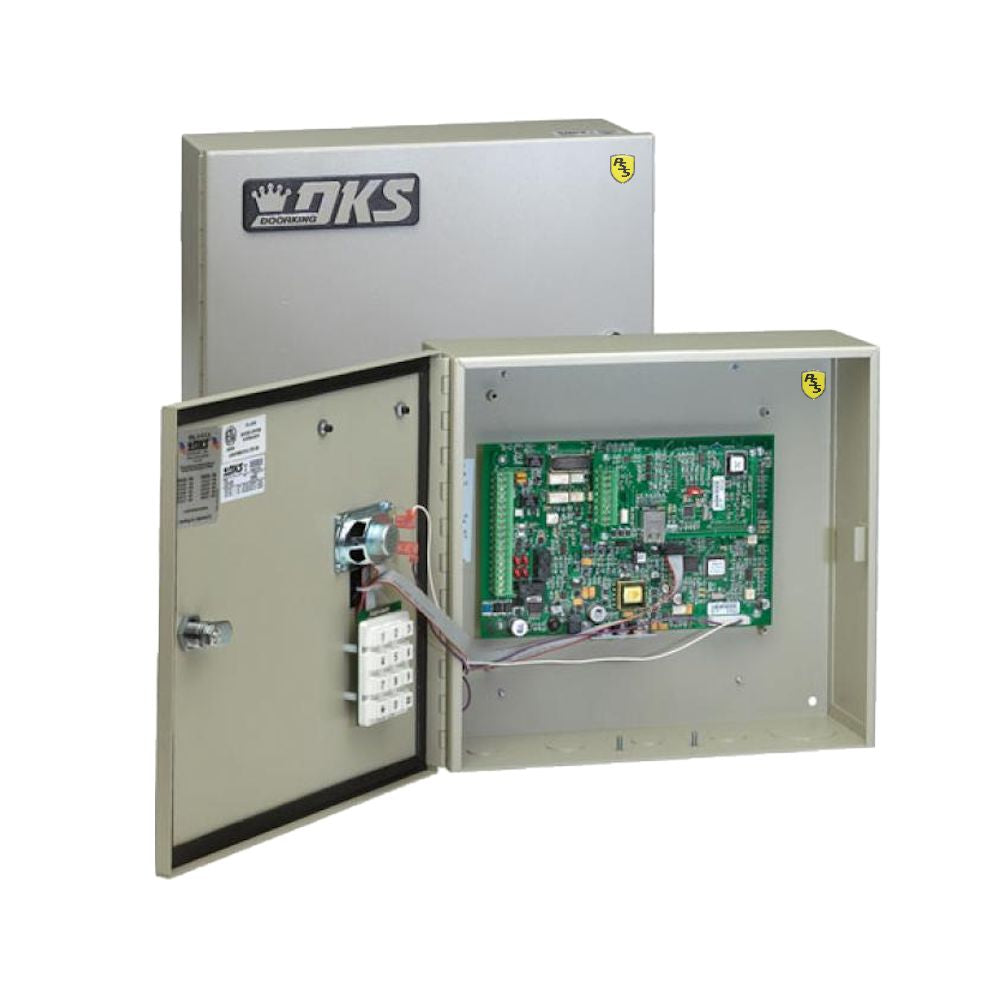

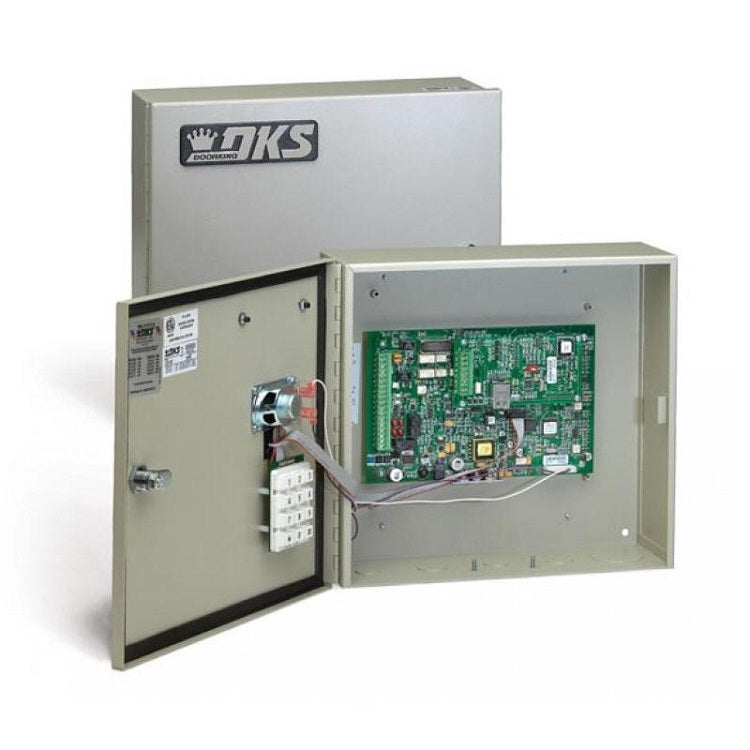

DoorKing 1838-095 Access Plus Controller with 100 Memory

The DoorKing 1838-095 Access Plus is ideally suited for residential and small business applications. The DKS 1838-095 Access Plus can control up to six (6) entry points with card readers, keypads or RF receivers using RS485 communication. Additionally, two (2) auxiliary relays on the main control board can be activated from the PC to control other devices or access control equipment (a gate operator for example).

Features

Access Plus Account Manager software included
Relay board available which allows use of existing 26-bit wiegand devices
Holiday schedule
Four (4) hold open time zones
Schedule un-lock / lock times
Email notifications
Live relay control from your PC
100 device codes (card, keypad, transmitter)
500 event history buffer
10 temporary access codes

Specifications

16 VAC, 20 VA system power (250 ma)
U.L. listed power transformer provided
Ringer equivalence: 0.0 A
Jack type: RJ11C or W
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed
Enclosure is NEMA 4x rated

Options

RF 485 Card Readers, Keypads, RF Controls and Conversion Boards.

CLICK HERE FOR BROCHURE CLICK HERE FOR MANUAL
