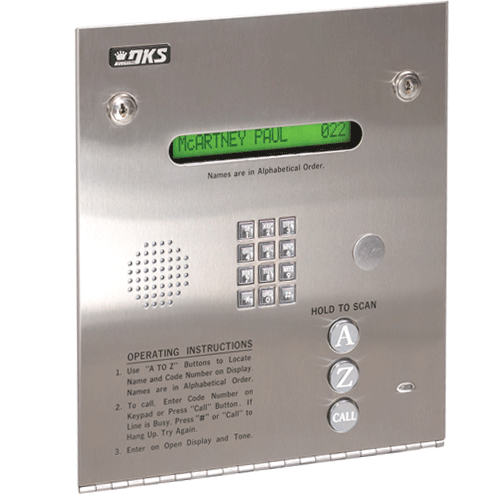

DoorKing 1834-084 Telephone Entry System Flush Mount

Doorking 1834-084 Telephone Entry System Flush Mount

DoorKing

$1,329.96
SKU: 1834-084

DoorKing 1834-084 Telephone Entry System Flush Mount



***This is an indoor unit and is not waterproof. Requires 1814-165 Recess Kit.***

The DoorKing 1834-084 is the ideal telephone entry system for either apartments or gated communities as well as for office buildings or industrial sites who needs separate access control system, or telephone entry only. The DKS 1834-084 features a ½ inch single line LCD screen for easy viewing as well as our “One Touch” call button with the A & Z Scroll buttons which makes it the easiest to use in the market.

Features

  • Remote Account Manager and Transaction Analysis software is included with the system.
  • Large easy to use A and Z scroll buttons.
  • One Touch "CALL" button.
  • Built-in single-line LCD directory display.
  • Programmable directory codes (1-4 digits).
  • 10 and 11-digit dialing capability.
  • Live Streaming.
  • Live transactions.
  • 8000 event transaction buffer.
  • Database import/export capability.
  • LED Lighting illuminates keypad.
  • Built-in clock/calendar.
  • Built-in postal lock provision.

Specifications

  • True Full Duplex Communication.
  • Stores up to 3000 telephone numbers and names.
  • Stores up to 255 area codes.
  • Transaction buffer stores last 8000 events.
  • 4-digit entry codes, one for each telephone number.
  • 2 form "C" dry contact relays.
  • Single-line directory display uses super-twist LCD with 1/2-inch characters.
  • EEPROM memory chip.
  • 16 VAC, 20 VA power transformer supplied.
  • FCC (US): DUF6VT-12874-OT-T
  • DOC (CAN): 1736 4528 A
  • Compliant with UL 294.   ETL listed.
  • Dimensions Surface Mount: 13"H x 11.25"W x 4.75"D.
  • Dimensions Flush Mount: 13.25"H x 12"W x 3.25"D.
  • Dimensions Wall Mount: 15"H x 13.25"W x 3.5"D.
The 1834 Telephone Entry System can be connected for voice and programming by any of these methods:
  • DKS Cellular Option™ – 4G-LTE service (note 1)
  • DKS Internet Options™ – VoIP service (note 2)
  • DKS IM Server Modem™ – POTS Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular Option™ subscription and 1800-080 cellular adapter.  4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection.  1830-186 requires DKS Internet Options™ subscription.  VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using DKS IM Server Modem™ subscription (required).
