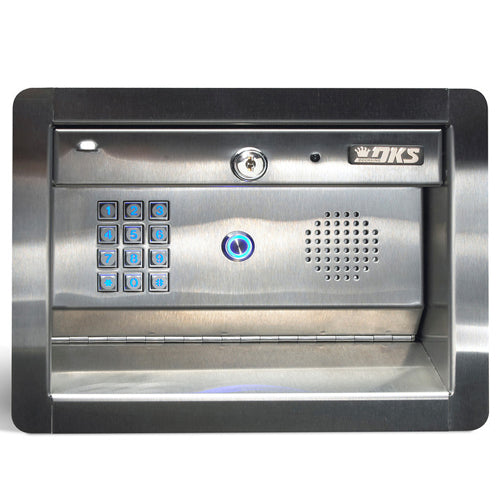

DoorKing 1812-092 Access Plus Flush Mount Telephone Entry System


SKU: doorking-1812-092

1812-092 Access Plus

IP addressable – program from your PC via LAN/WAN or an internet connection or via built-in modem.
Access Plus Account Manager programming software included.
Add up to six (6) card readers, keypads or RF receivers (RS-485).
100 card / transmitter / keypad codes (50 with phone numbers; 50 access codes only).
Up to 30 holidays can be added to access and hold open time zones.
Control access points from your PC. Schedule lock and unlock times, lock or unlock an access point with the click of your mouse.
10 temporary access codes with start and end dates.
500 event transaction buffer.

Email notification of events of your choice. Internet connection required.
Call waiting.
Call forwarding with time zone restrictions.
Unique double ring.
Built-in clock / calendar.
Do-not-disturb feature.
Four “hold open” time zones.
Answer machine bypass feature.
50 5-digit entry codes with time zone restrictions on some codes.
10 Tempory entry codes with start and end dates.
Intercom mode for use with PBX and KSU phone systems.

Camera ready.
Hands free, full duplex digital audio circuit.
Interfaces with a single phone line
27 dial-out phone numbers
Two relays for door or gate control.
ability to control an additional six (6) access points with card readers, keypads or RF controls
Programming Method: System keypad, touch-tone telephone, or from PC.
16 VAC, 20 VA (250 ma) power transformer provided.
FCC (US): DUF6VT-12874-OT-0
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed.

Surface mount dimensions: 6.13"H x 10"W x 5.25"D.
Surface curved mount dimensions: 7.38 "H x 10.88"W x 6"D
Flush mount dimensions: 9.13"H x 11.88"W x 4.5"D.
Wall mount dimensions: 7.38"H x 10.75"W x 3.5"D
