DoorKing 1602-091 Barrier Arm Opener with DC Open

Doorking Barrier Arm Opener - Doorking 1602-091 Barrier Arm Opener with DC Open

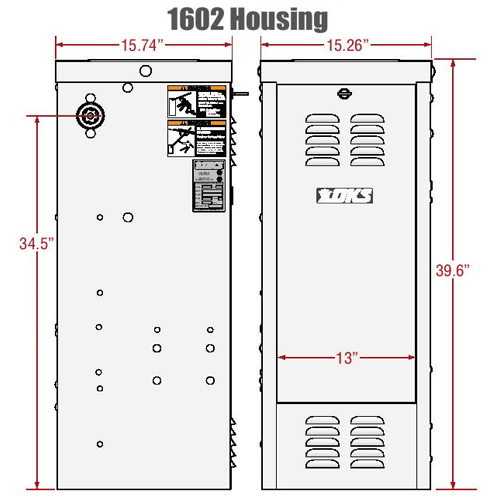

Doorking Barrier Arm Opener - Doorking 1602-091 Barrier Arm Opener with DC Open - dimensions

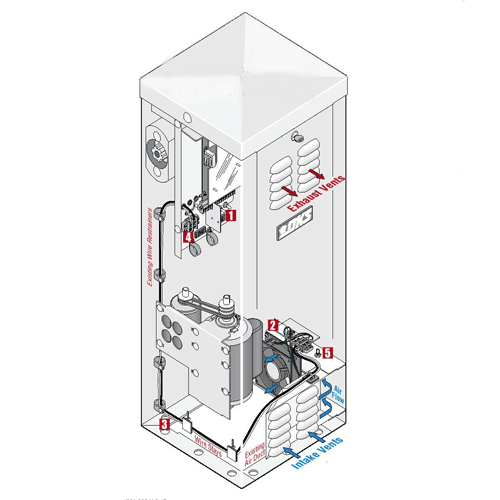

Doorking Barrier Arm Opener - Doorking 1602-091 Barrier Arm Opener with DC Open - operator construction with cooling fan

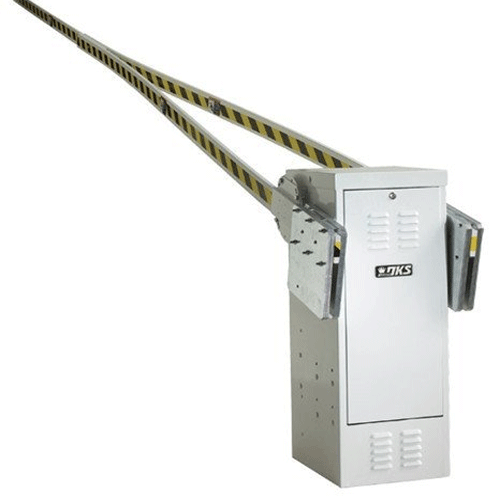

Doorking Barrier Arm Opener - Doorking 1602-091 Barrier Arm Opener with DC Open - operator with arms

DoorKing 1602-091 Barrier Arm Opener with DC Open

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $9,000.00 Sale price $4,649.99 Save 48%
/
Shipping calculated at checkout.

DoorKing 1602-091 Barrier Arm Opener with DC Open

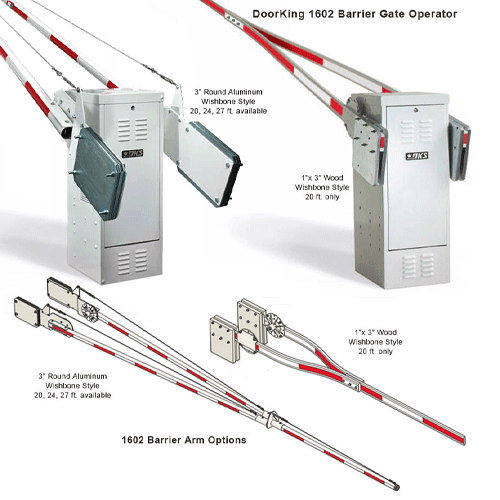

The DoorKing 1602-091 operator is designed for traffic lanes up to 20-feet wide in low use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The DKS 1602-091 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can is equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.  Arm kit is required for this opener, separate purchase required!

Features

  • Magnetic limit control.
  • Ports for plug-in loop detectors.
  • Automatic sequencing inputs for use with slide and swing gate operators.
  • Up input memory buffer.
  • Down memory option.
  • Multiple up commands.
  • Two convenience outlets.
  • 360° gear box rotation.
  • Gate tracker reporting output.
  • Programming switches.
  • Built-in power On/Off switch.
  • Left or right hand mount.

Specifications

  • 1 HP continuous-duty motor.
  • 60:1 gear-box running in a continuous oil bath.
  • 115 Volt
  • Arm rotates 90° in approximately 5.5 seconds.
  • Class III and IV applications.
  • Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D



DoorKing 1602-091 Barrier Arm Opener with DC Open

The DoorKing 1602-091 operator is designed for traffic lanes up to 20-feet wide in low use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The DKS 1602-091 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can is equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.  Arm kit is required for this opener, separate purchase required!

Features

  • Magnetic limit control.
  • Ports for plug-in loop detectors.
  • Automatic sequencing inputs for use with slide and swing gate operators.
  • Up input memory buffer.
  • Down memory option.
  • Multiple up commands.
  • Two convenience outlets.
  • 360° gear box rotation.
  • Gate tracker reporting output.
  • Programming switches.
  • Built-in power On/Off switch.
  • Left or right hand mount.

Specifications

  • 1 HP continuous-duty motor.
  • 60:1 gear-box running in a continuous oil bath.
  • 115 Volt
  • Arm rotates 90° in approximately 5.5 seconds.
  • Class III and IV applications.
  • Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D



This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Recently viewed
See more products from Barrier Arm Gate Openers
Sale
DoorKing 1601-380 Barrier Arm Opener (On Sale)
DoorKing
Sale price $2,429.99 Regular price $5,000.00 Save 51%
DoorKing 1602-090 Barrier Arm Opener
DoorKing 1602-090 Barrier Arm Opener - dimensions
DoorKing 1602-090 Barrier Arm Opener (ARM KIT & HARDWARE REQUIRED!!!)
DoorKing
$4,199.99

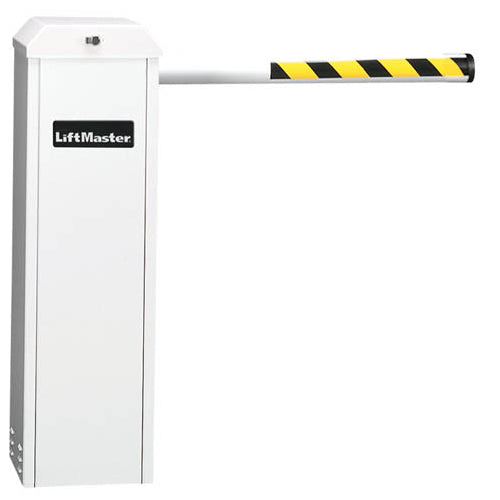

Liftmaster Barrier Arm Operator - LiftMaster MATDCBB3 Mega Arm Tower Barrier Arm Opener Only
