DoorKing 1602-041 Hardware Kit for 20' foot 3-piece Wood Arm Kit

DoorKing 1602-041 Hardware Kit for 20' foot 3-piece Wood Arm Kit SALE


$599.99 $910.80
SKU: 1602-041

DoorKing 1602-041 Hardware Kit for 20' foot 3-piece Wood Arm Kit

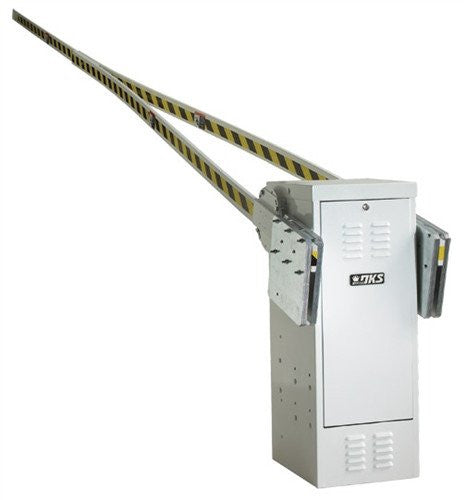

The DoorKing 1602-041 operator is designed for traffic lanes up to 27-feet wide in low use commercial and industrial applications. The DKS 1602-041 operator uses a counter-balanced three-piece wishbone style arm assembly. The DKS 1602-041 operator is designed so that it can be mounted on either the left or right hand side of the roadway. It can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.


  • Magnetic limit control.
  • Ports for plug-in loop detectors.
  • Automatic sequencing inputs for use with slide and swing gate operators.
  • Up input memory buffer.
  • Down memory option.
  • Multiple up commands.
  • Two convenience outlets.
  • Gate tracker reporting output.
  • Programming switches.
  • Built-in power On/Off switch.
  • Left or right hand mount.


  • 1 HP continuous-duty motor.
  • 60:1 gear-box running in a continuous oil bath.
  • 115, 230*, 460* VAC.  (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
  • Arm rotates 90° in approximately 5.5 seconds.
  • Class III and IV applications.
  • Compliant with UL 325 and 991.  ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
  • Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D.


Aluminum arms: 20 Feet, 24 Feet, 27 Feet
Aluminum arms LED Lighted: 20 Feet, 24 Feet, 27 Feet
20-Foot Wood Arm (requires 1602-041 kit)
Loop Logic vehicular / pedestrian safety system.
Plug-in loop detectors.
DC powered convenience open.
Heater kit.
Fan kit.
Surge suppressors.
Manual Crank kit (factory installed option only).
