All-O-Matic SL-90 DC Slide Gate Opener

All-O-Matic SL-90 DC Slide Gate Opener


SKU: sl90dc

All-o-matic SL-90 DC Slide Gate Opener

  • Max gate size: 50ft
  • Max gate weight: 1,600 lbs.

The All-O-Matic sl-90dc is newly redesigned, and has had more features added onto this operator.  Some of these features include a standard mechanical foot pedal and larger gearbox with internal disconnect for a higher gate capacity. It is the same size as its predecessor, but it can handle a slide gate that up to 1600lbs, or 50ft long.  DC operators come with a control board that offers many different features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. Battery backup offers up to two weeks of uninterrupted operation in the event of a power outage.  Brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.


Limited Warranty:  7 Year Residential, 5 Year Commercial

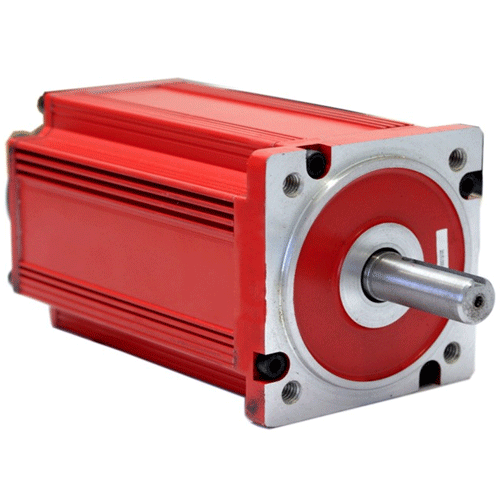

Motor:  24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
Duty Cycle:  Continous
Power Options:  120/220 VAC Single Phase or 12/24V Solar panel

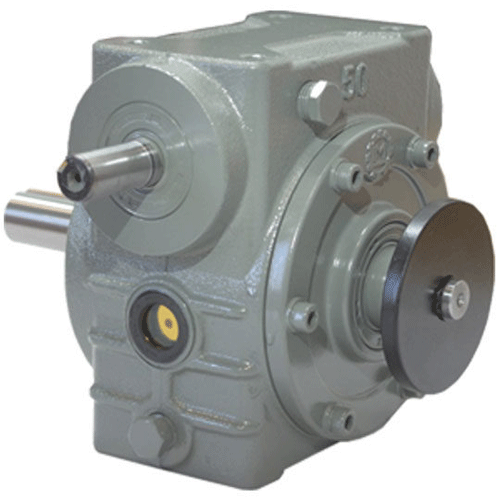

Gear Box Ratio:  20:1 with internal disconnect

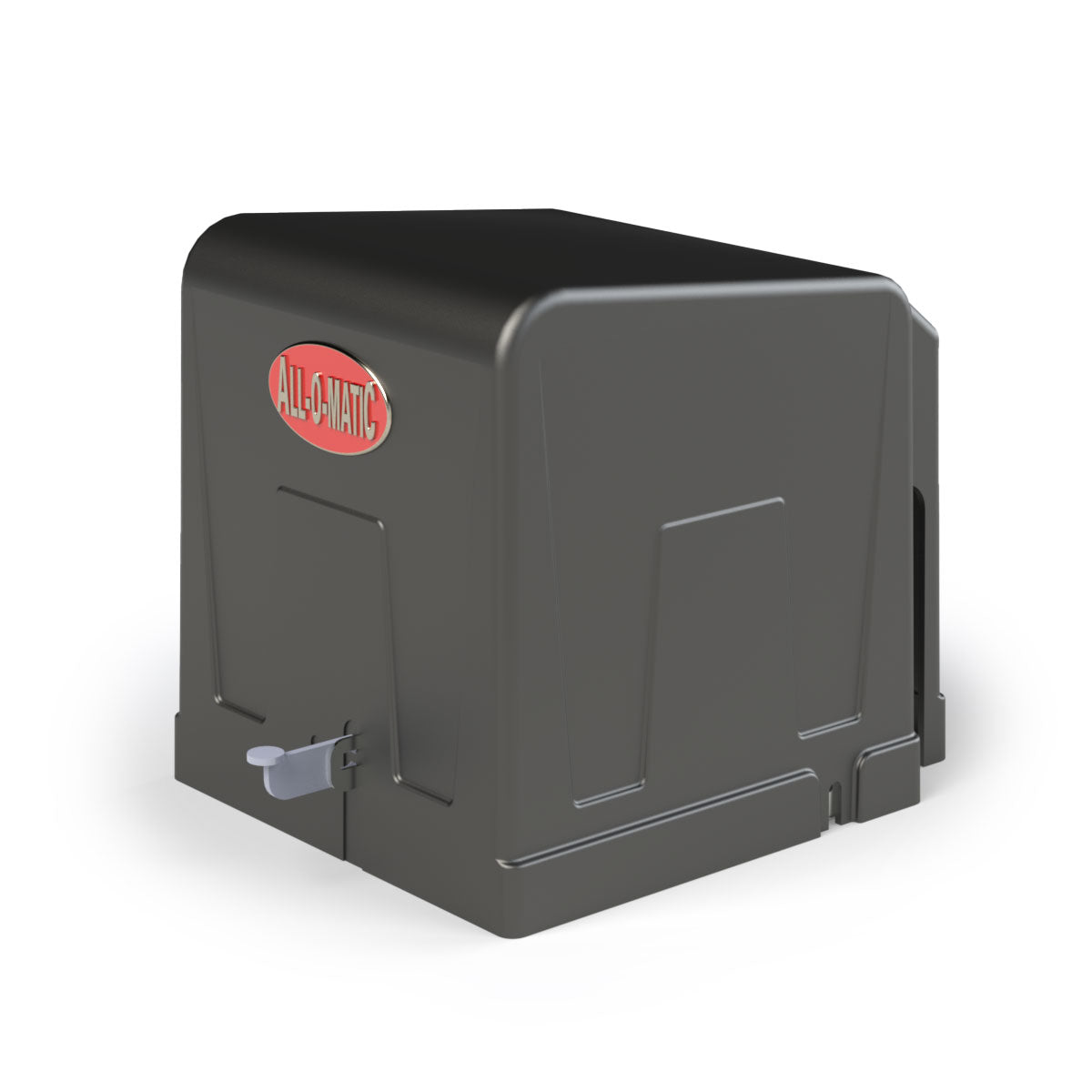

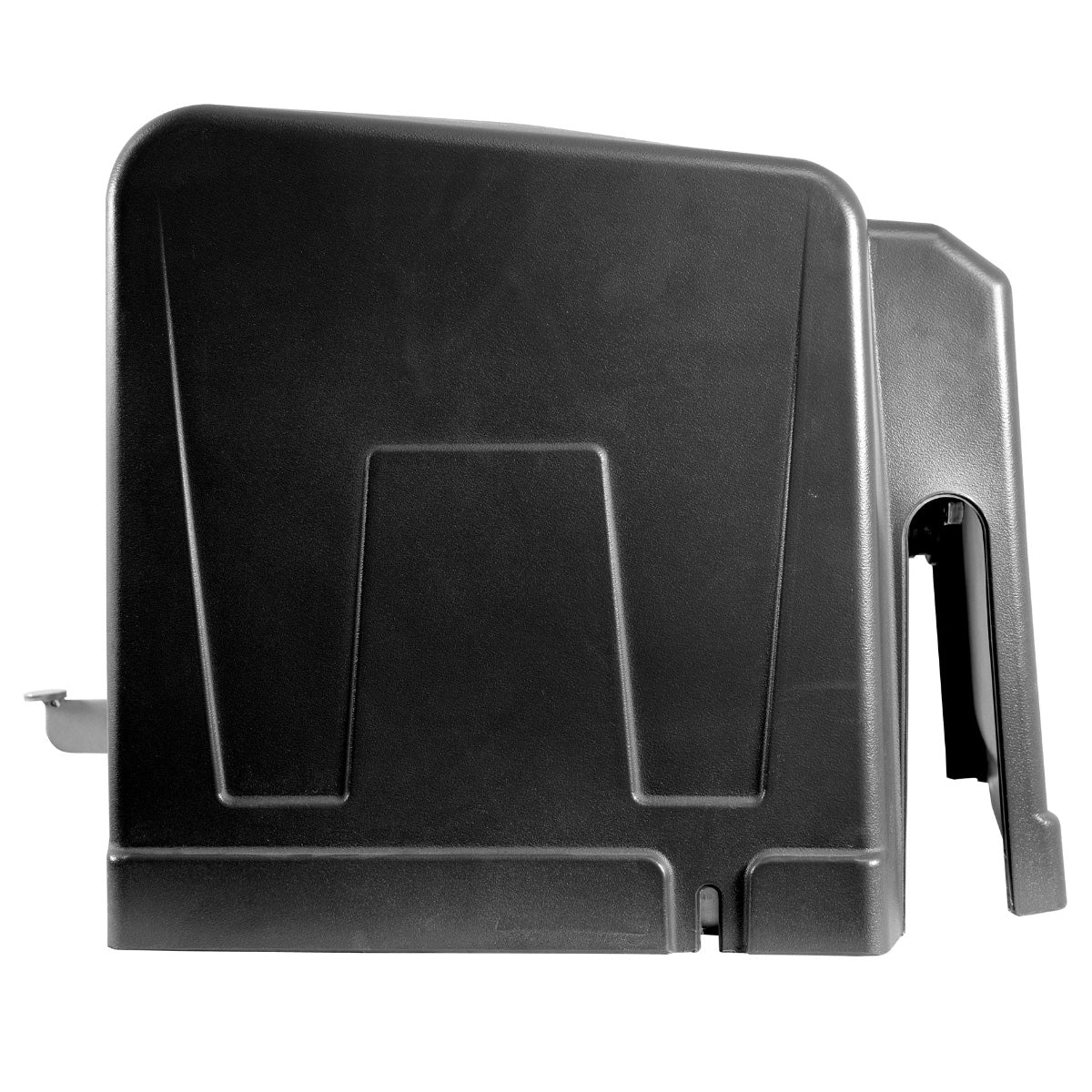

Cover:  Rotationally molded plastic (polyethylene)

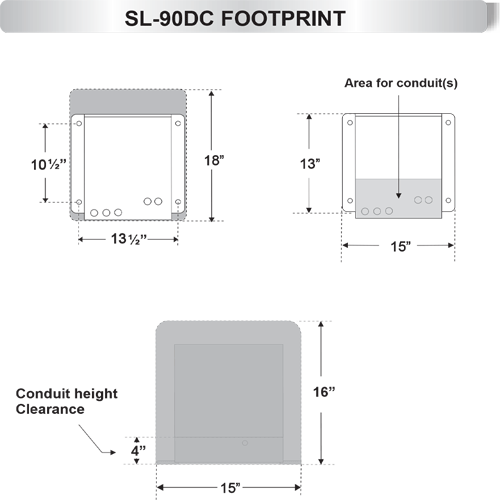

Dimensions W: 15.5" – L: 18.5" – H 16"
Maximum Gate Length:  50 Feet
Maximum Gate Weight:  1,600 lbs
Gate Travel Speed: 12 inches per sec
Emergency Release Options:  Mechanical Foot Pedal Release
Battery Backup:  Integrated, Capable of up to 150 cycles on a 1000lbs Gate Battery: Two 8 Ah Batteries 12VDC
Solar Capabilities:  12VDC or 24VDC Solar Panel Input

Manufacturers Warranty:

The Warrantor warrants All SL-90 DC Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
