Allomatic SL-150 DC Slide Gate Opener 1HP
Allomatic SL-150 DC Slide Gate Operator
- Max gate size: 60ft
- Max gate weight: 4,000 lbs.
- 1 horsepower motor

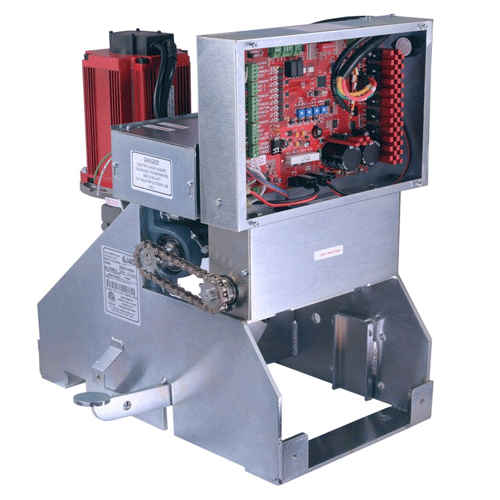

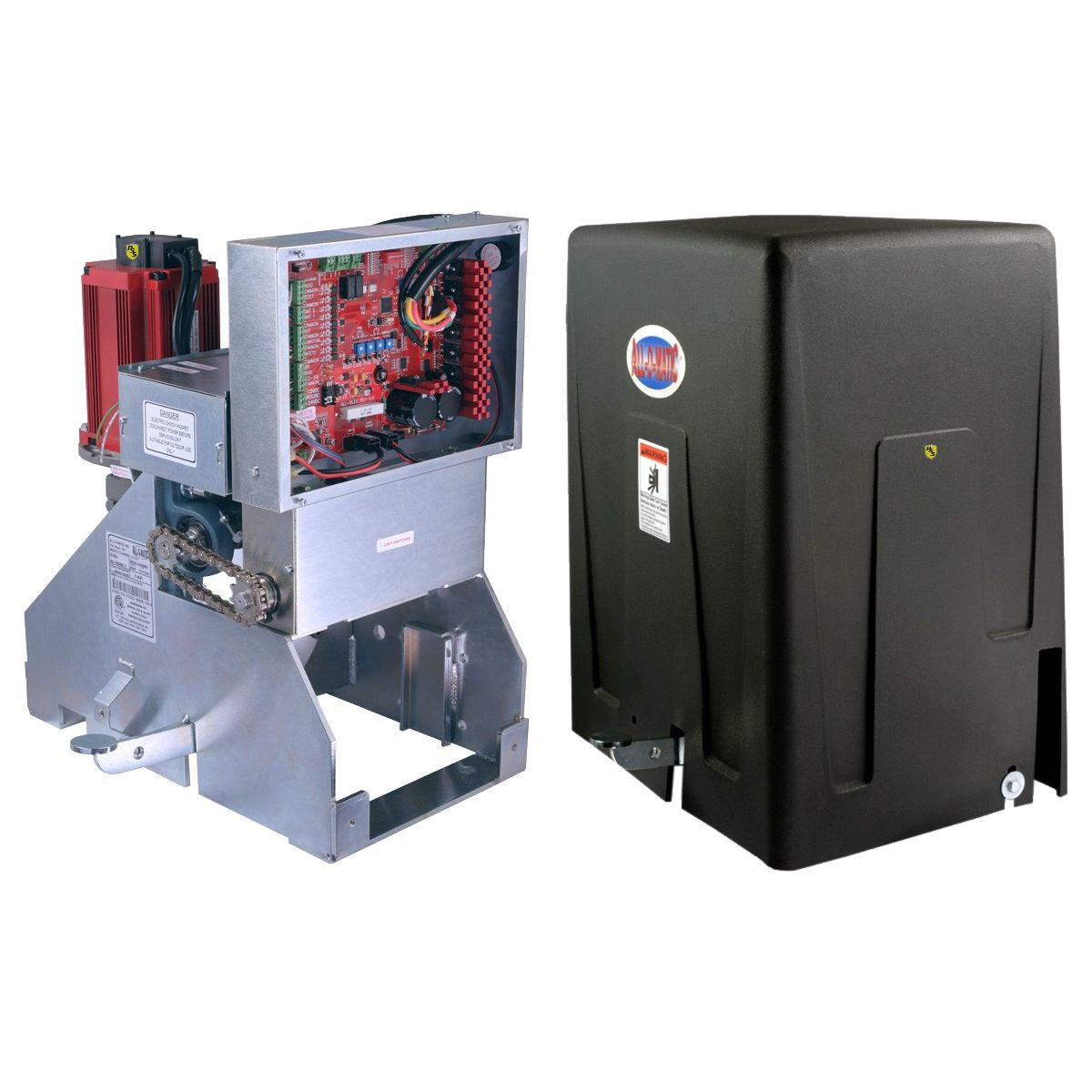

The Allomatic SL-150 DC Slide Gate Opener is designed for heavy traffic at commercial and industrial locations, and can also endure extreme weather positions. The SL-150 DC Slide Gate Operator has a reliable gearbox with a heavy duty frame and a powerful DC motor. Depending on horsepower the gate opener can pull a gate 1500 - 2500 lbs. Allomatic SL-150 DC Slide Gate Operator has a simple and dependable circuit board, and a motor that has been field tested for over 20 years, and come with foot pedal for manual release. This Slide Gate Opener comes with DC battery back up
Warranty: 7 year residential and 5 year commercial

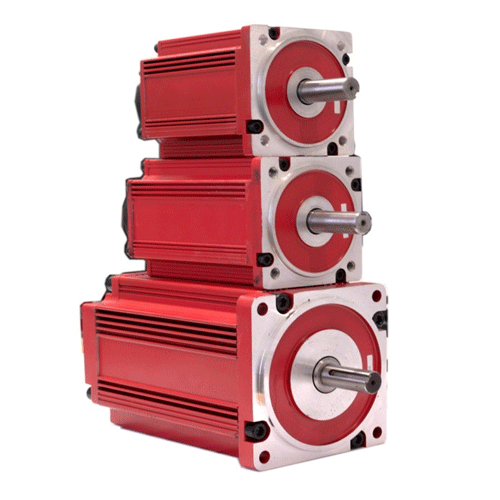

Motor: 24 VDC Brushless Motor - 1 horsepower
Duty Cycle: Continuous
Power Options: 120VAC
Gear Box Ratio: 30:1 w/ Internal Clutch

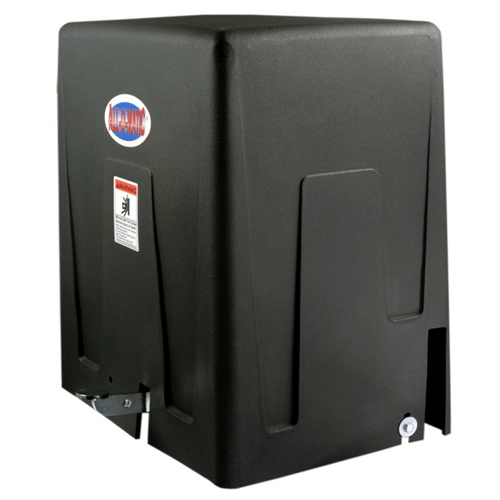

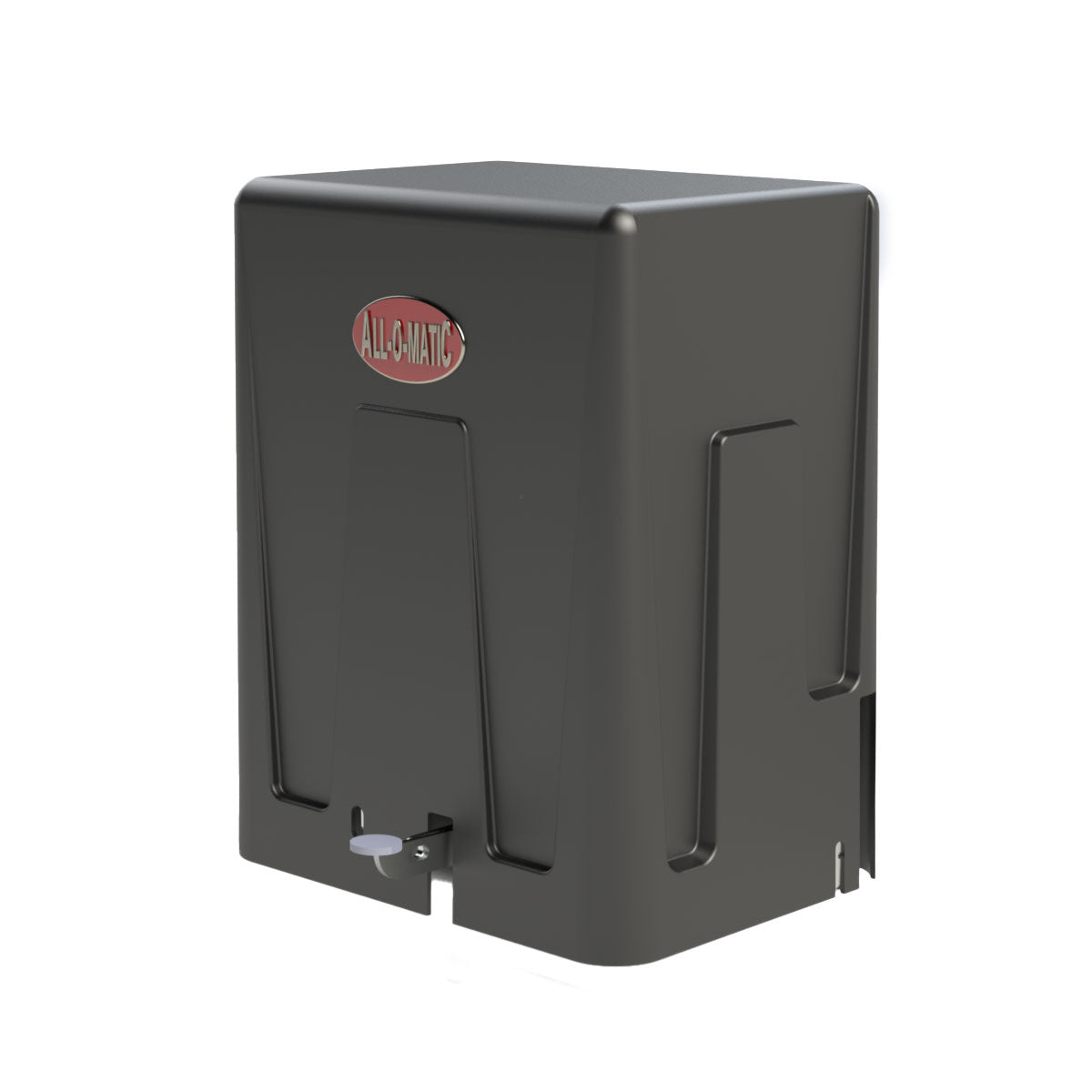

Cover: Rotationally Molded – Indestructible

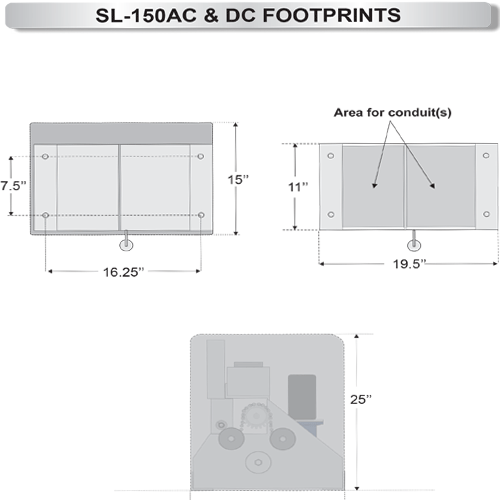

Dimensions: W: 15" - L: 19.5" – H: 25"
Max Gate Length: 60ft
Maximum Gate Weight: 1/2HP 3000lbs, 1HP 4000lbs
Gate Travel Speed: 12 inches per second
Operator weight: 150lbs
Emergency release: Foot pedal
Battery Backup: Integrated Full Time Battery Backup Capable of up to 100 cycles on a 1000lbs Gate Battery: Two 8 Ah Batteries 12VDC Solar Capabilities 12VDC or 24VDC Solar Panel Input
Solar Capabilities:12VDC or 24VDC Solar Panel Input
The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumerâ€™s expense. The warrantor will return the repaired or replaced unit to the customer at the consumerâ€™s expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
