Allomatic SL-150 DC Slide Gate Opener 1/2HP

Allomatic SL-150 DC Slide Gate Opener 1HP

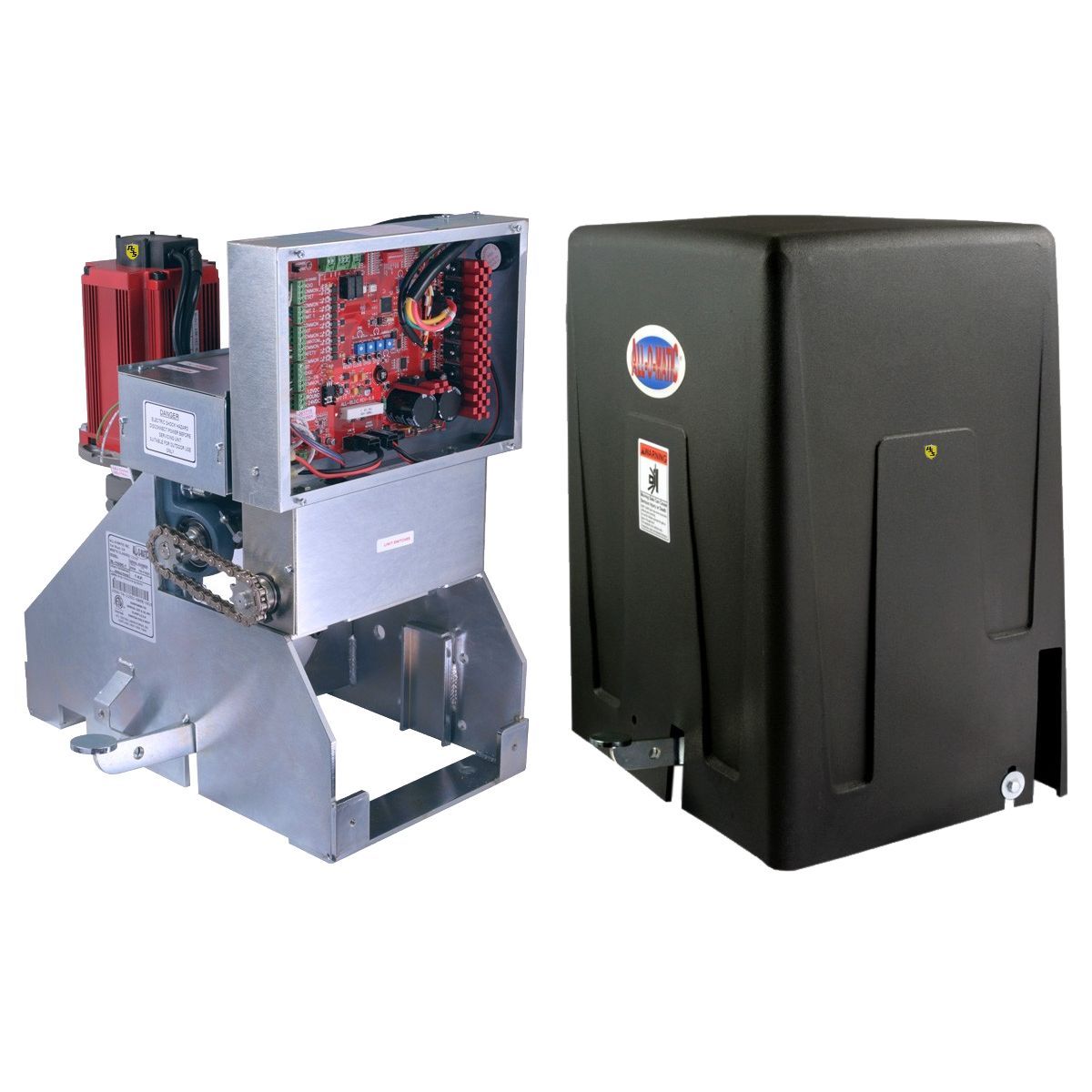

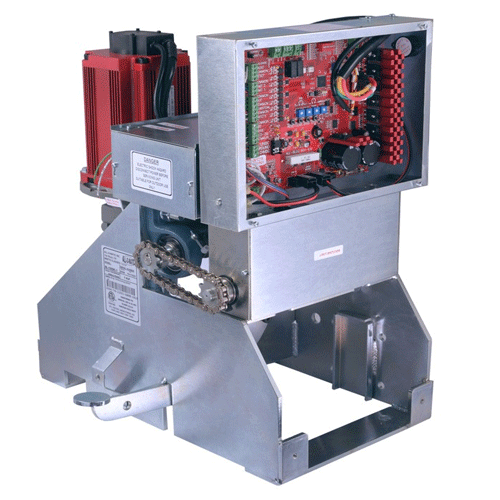

Allomatic SL-150 DC Slide Gate Opener - Motor Construction

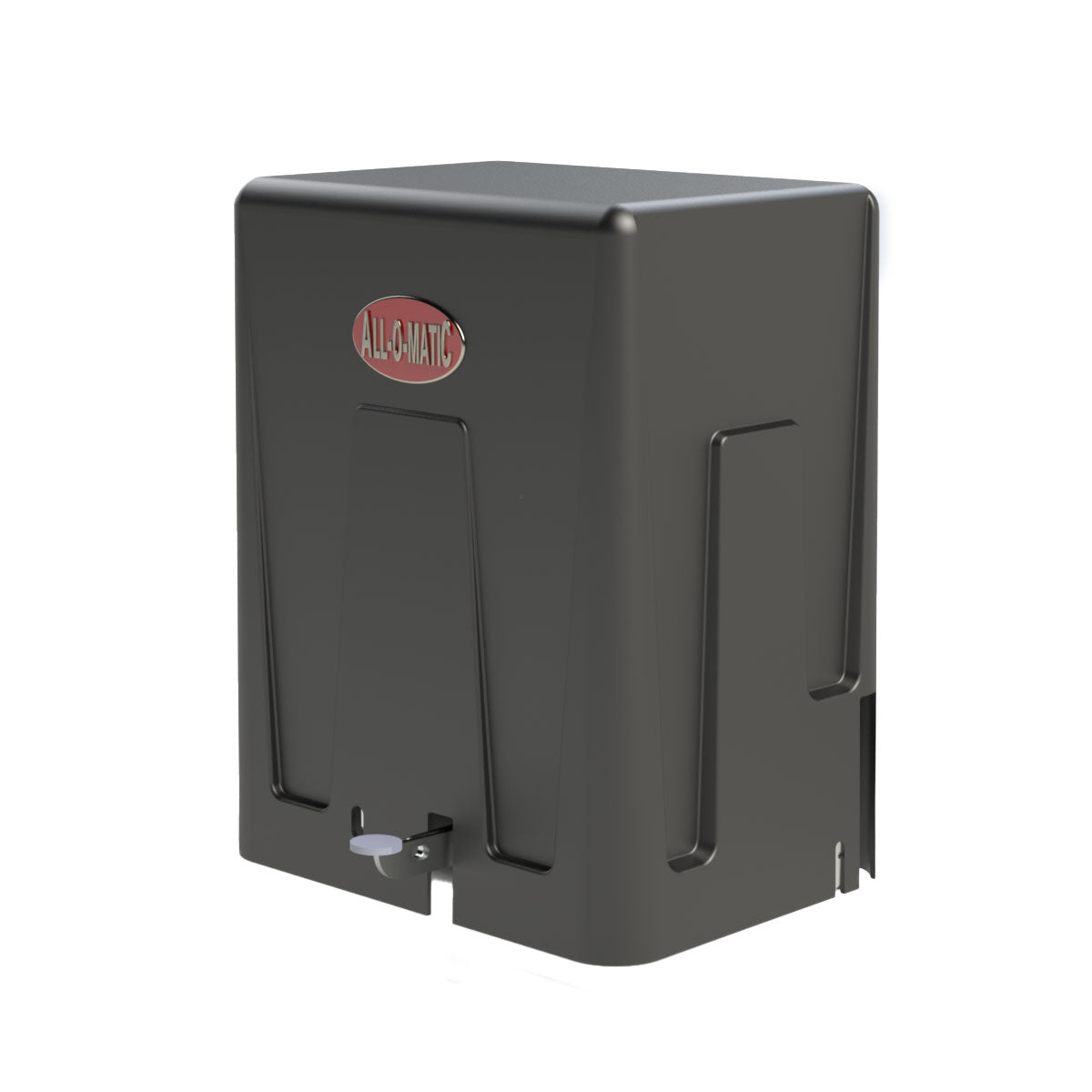

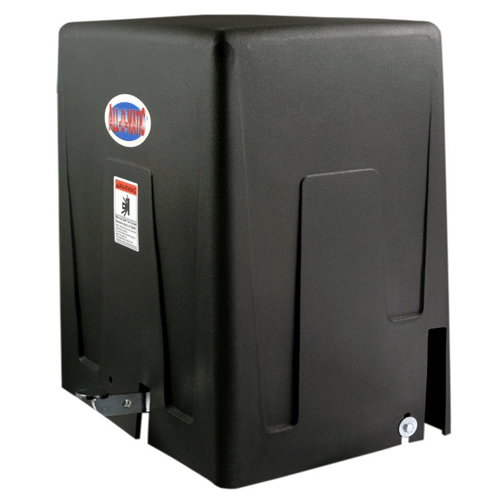

Allomatic SL-150 DC Slide Gate Opener - Cover

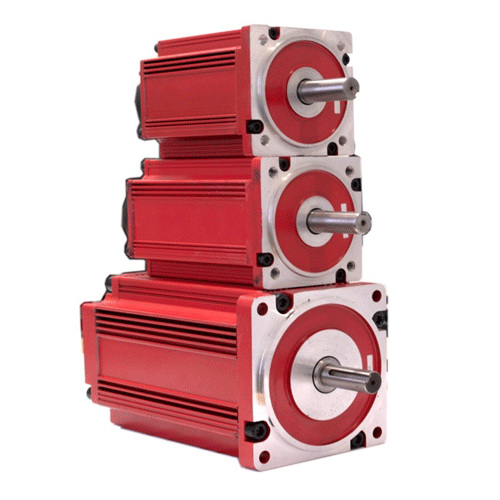

Allomatic SL-150 DC Slide Gate Opener - DC Motor
Allomatic SL-150 DC Slide Gate Opener 1/2HP

Allomatic SL-150 DC Slide Gate Opener 1/2HP

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,999.97
/
Shipping calculated at checkout.

Allomatic SL-150 DC Slide Gate Operator

  • Max gate size: 60ft
  • Max gate weight: 3,000 lbs.
  • 1/2 horsepower motor

The Allomatic SL-150 DC Slide Gate Opener is designed for heavy traffic at commercial and industrial locations, and can also endure extreme weather positions. The SL-150 DC Slide Gate Operator has a reliable gearbox with a heavy duty frame and a powerful DC motor. Depending on horsepower the gate opener can pull a gate 1500 - 2500 lbs. Allomatic SL-150 DC Slide Gate Operator has a simple and dependable circuit board, and a motor that has been field tested for over 20 years, and come with foot pedal for manual release.  This Slide Gate Opener comes with DC battery back up

Specs:

Motor: 24 VDC Brushless Motor - 1/2 horsepower
Duty Cycle: Continuous
Power Options:
120VAC
Gear Box Ratio:
30:1 w/ Internal Clutch
Cover:
Rotationally Molded – Indestructible

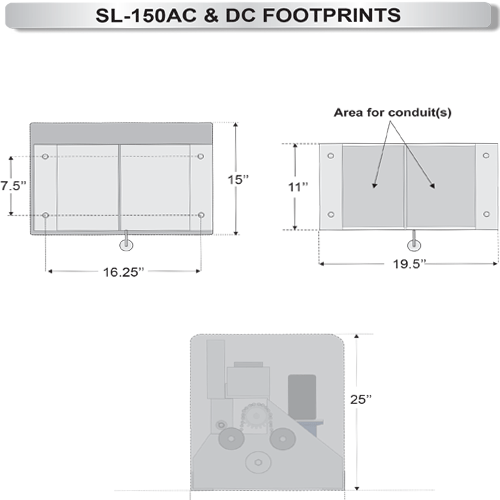

Dimensions:
W: 15" - L: 19.5" – H: 25"
Max Gate Length:
60ft
Maximum Gate Weight:
1/2HP 3000lbs, 1HP 4000lbs
Gate Travel Speed:
12 inches per second
Operator weight:
150lbs
Emergency release:
Foot pedal
Battery BackupIntegrated Full Time Battery Backup Capable of up to 100 cycles on a 1000lbs Gate Battery: Two 8 Ah Batteries 12VDC Solar Capabilities 12VDC or 24VDC Solar Panel Input
Solar Capabilities:12VDC or 24VDC Solar Panel Input




Allomatic SL-150 DC Slide Gate Operator

  • Max gate size: 60ft
  • Max gate weight: 3,000 lbs.
  • 1/2 horsepower motor

The Allomatic SL-150 DC Slide Gate Opener is designed for heavy traffic at commercial and industrial locations, and can also endure extreme weather positions. The SL-150 DC Slide Gate Operator has a reliable gearbox with a heavy duty frame and a powerful DC motor. Depending on horsepower the gate opener can pull a gate 1500 - 2500 lbs. Allomatic SL-150 DC Slide Gate Operator has a simple and dependable circuit board, and a motor that has been field tested for over 20 years, and come with foot pedal for manual release.  This Slide Gate Opener comes with DC battery back up

Specs:

Motor: 24 VDC Brushless Motor - 1/2 horsepower
Duty Cycle: Continuous
Power Options:
120VAC
Gear Box Ratio:
30:1 w/ Internal Clutch
Cover:
Rotationally Molded – Indestructible
Dimensions:
W: 15" - L: 19.5" – H: 25"
Max Gate Length:
60ft
Maximum Gate Weight:
1/2HP 3000lbs, 1HP 4000lbs
Gate Travel Speed:
12 inches per second
Operator weight:
150lbs
Emergency release:
Foot pedal
Battery BackupIntegrated Full Time Battery Backup Capable of up to 100 cycles on a 1000lbs Gate Battery: Two 8 Ah Batteries 12VDC Solar Capabilities 12VDC or 24VDC Solar Panel Input
Solar Capabilities:12VDC or 24VDC Solar Panel Input
