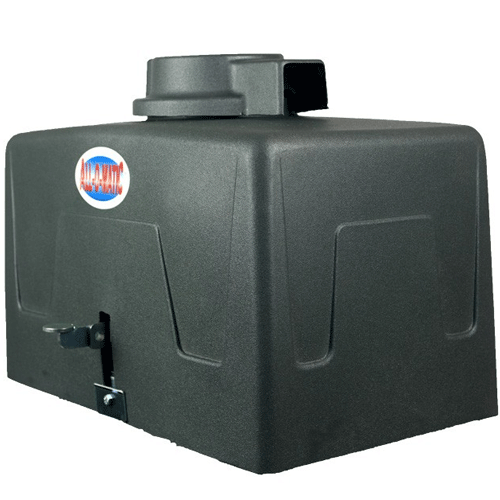

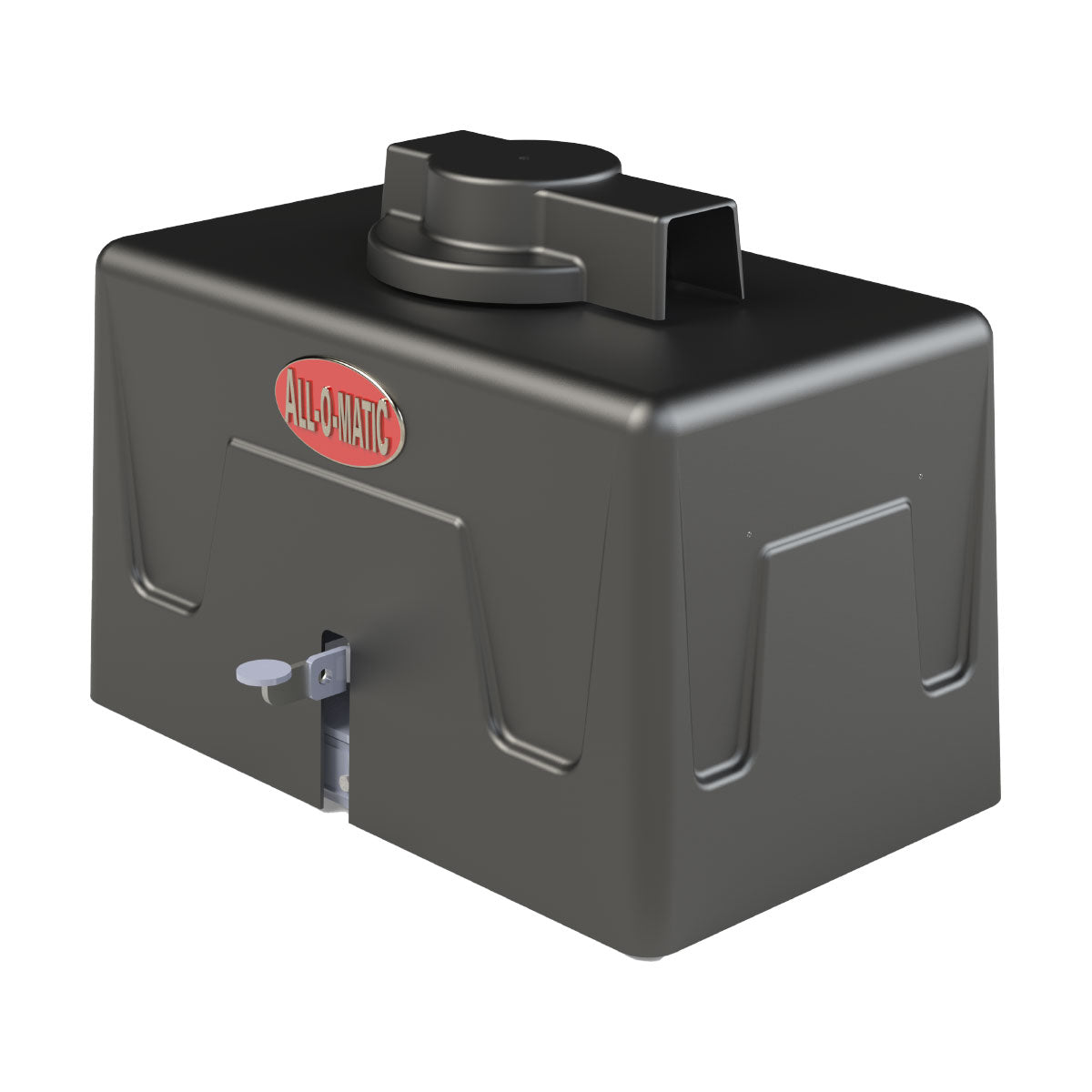

All-O-Matic SW-350 AC Swing Gate Opener


SKU: aom350ac1/2

All-O-Matic SW-350 AC Swing Gate Opener

The All-O-Matic SW-350 AC Swing Gate Operator can be used on gates of up to 20 feet and 1,800 pounds.  The All-O-Matic SW-350 AC has features that include low profile design, heavy duty mechanical foot pedal release, unmatched heavy duty clutch and no bind quick release arm w/ rust proof aluminum.  Those features have helped set All-O-Matic Swing Gate Openers apart from other manufacturers in the industry.  All All-O-Matic Gate Operators are covered by our 5/7 Year Manufacturers Warranty.  AC operators come with the one of the simplest and most dependable control board in the industry and is backwards compatible.  They have more than 20 years of experience field testing their motors in the field. The All-O-Matic SW-350 AC Swing Gate Operator is available in 1/2HP and 1HP options available when you add operator to cart.


Warranty: Full 7 Year Residential, 5 Year Commercial

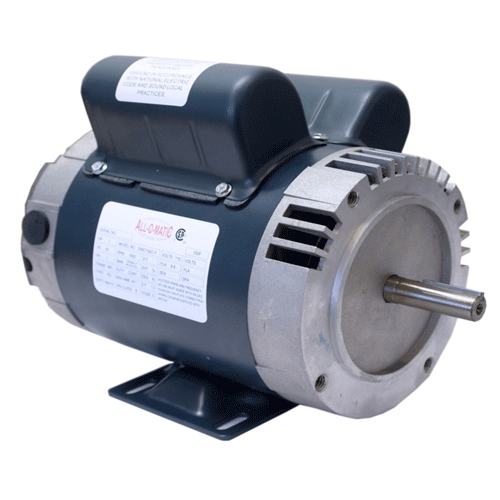

Motor: 24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
Duty Cycle: Continous
Power Options: 120/220 VAC Single Phase

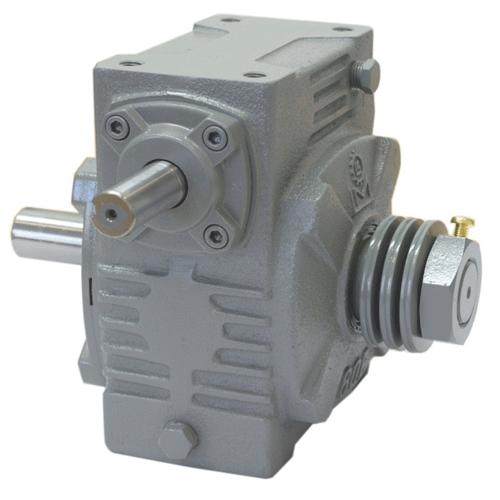

Gear Box Ratio: 60:1 with Internal Clutch
Cover: Rotationally Molded – Indestructible

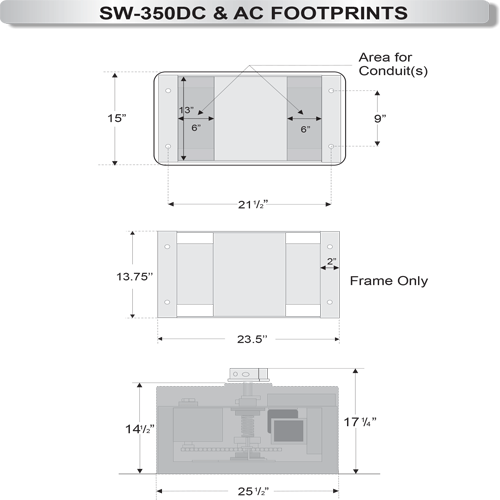

Dimensions: W: 14" - L: 24" – H: 18"
Maximum Gate Length: 22' w/ 1 HP Motor
Maximum Gate Weight: 800-1/2HP Motor, 1200-3/4HP Motor, 1500-1HP Motor
Gate Travel Speed: 180 Degrees in 17 Sec
Operator Weight: 25 lbs

Manufacturers Warranty:

The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
