AAS Acsent T1 Cellular Telephone Entry 16-T1

AAS

$939.97
SKU: aas-acs-t1

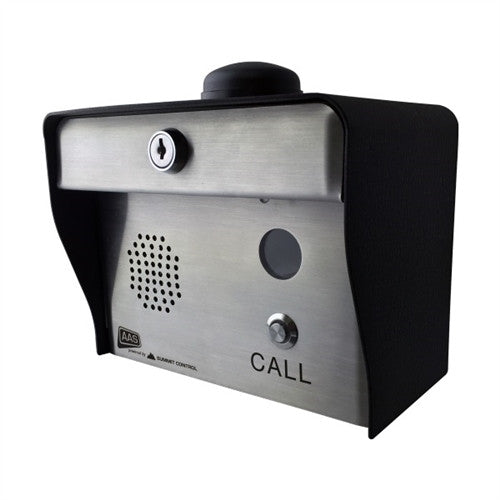

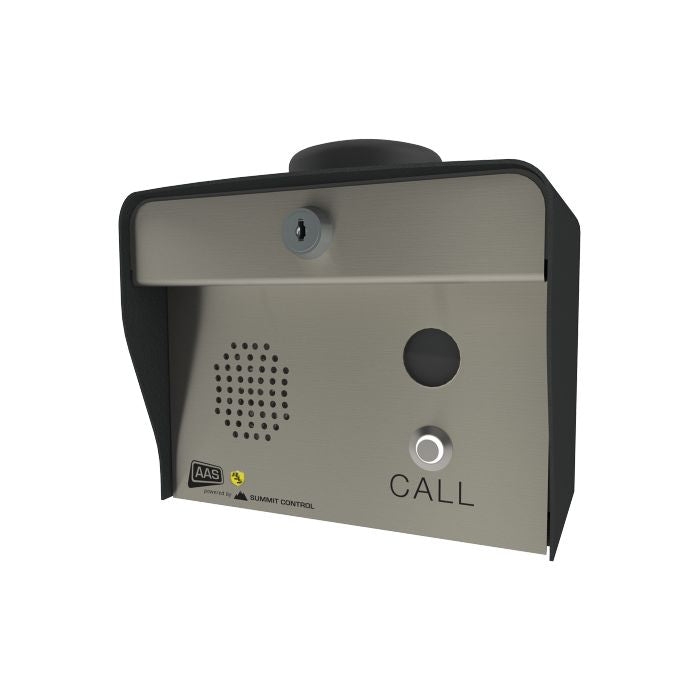

AAS Acsent T1

With a smaller footprint and everything but the keypad, Ascent T1 is a powerful and more secure alternative (no keypad code sharing) to our Ascent X1. Control up to two access points and grant access via app, text, voice, or call button!

Features

  • Control via app, text, voice, or call button
  • Control up to 2 gates or doors
  • Cloud-based access control management
  • Up to 10,000 app, text, and voice users
  • Quick temporary user setup
  • Advanced timers
  • Gate status check
  • Audit trail with detailed reports
  • “Do Not Disturb” mode
  • Intercom with multiple user-defined phone numbers
  • Nightlight and lighted call button


Specs:


    Electrical:

       Input- 12–24 VAC/DC* 12-VAC transformer included
       Current Draw- less than 70 mA @ 12 VDC
                               less than 40 mA @ 24 VDC
                               standby with nightlight
                               less than 90 mA @ 12 VDC
                               less than 60 mA @ 24 VDC with relay latched

     Relay:

        Contact rating:  2 A @ 30 V / .5 A @ 125 V DC Load / AC Load
        Max switching voltage: 125 V / 125 V
        Max carrying current: 2 A / 2 A
        Max Switching power: 60 W / 62.5 VA

      Physical:

         Dimensions: 6-3/4″(H) x 7-3/8″(W) x 5-1/4″(D)
         Operating Temperature: -15 to 175 °F
