Multi-Code 302210 Safety Edge Transmitter

Multi-Code 302210 Safety Rubber Edge Transmitter 300Mhz

Multi-Code 302210 Safety Edge Transmitter

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $102.97
/
Shipping calculated at checkout.

Multi-Code 302210 - Safety Edge Transmitter

The Multi-Code 302210 Gate Safety Edge Transmitter is for adding obstacle sensing for motorized gates or barrier arms. Using a safety edge transmitter is more economical and discrete than the traditional coiled cord connection method. The  Multi-Code 302210 transmitter mounts directly on the gate or barrier arm and wires to a standard exterior safety edge sensor (a Miller gate edge sensor is recommended). If an obstacle is encountered, the sensor will present a closed circuit across the connecting wires and the Multi-Code 302210 will transmit a message to the receiver signaling entrapment to the gate operator. The operator then stops or reverses the movement of the gate.

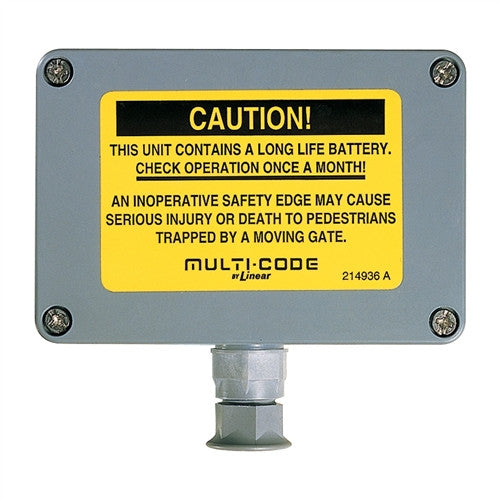

The Multi-Code 302210 transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.

The  Multi-Code 302210 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers

Features

  • Compatible with 300 MHz Multi-Code receivers
  • Safety edge transmitter
  • Activates receiver for stop or reverse entrapment
  • No cables or coiled wires
  • Mounting hardware (4 screws) supplied
  • Power: 9-volt battery
  • Codes: 1,024 (set by dip switches)
  • RF frequency: 300 MHz
  • Dimensions: 4.28" W x 2.875" H x 2.25" D
