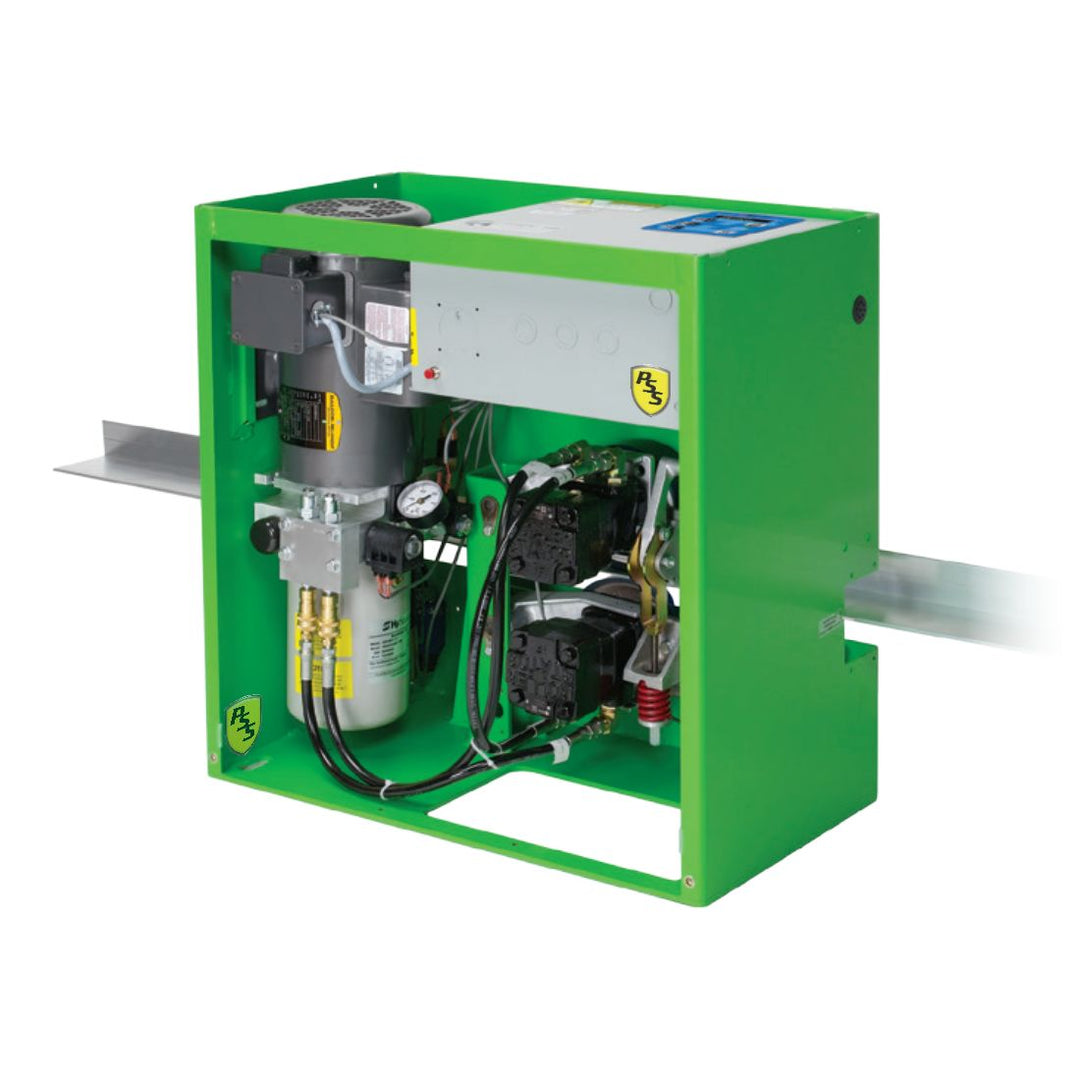

HySecurity SlideDriver 50VF2/3

Name: HySecurity SlideDriver 50VF2/3
Brand: HySecurity
SKU: 222 X3 ST
Price: 13599.97 USD
Availability: OutOfStock

2 horsepower motor

This beast can move a heavy gate smoothly, efficiently and quick, up to 3 ft per second. These operators close gates to a precise point and are extremely easy on your gate hardware. SlideDriver VF operators use a variable frequency drive, 8 inch wheels - both wheels driven, and a high flow rate pump to move gates weighing up to 5,000 lb!! at high speed. Field adjustable Open/Close speeds are 2.2 or 3 ft/ps with an Emergency Fast Operate mode at 3 ft/s. (91 cm/s)

Operator is listed and restricted to UL 325 usage class III, IV due to high speed.

Operator Specifications

Duty Cycle	Continuous
Travel Speed	Field adjustable, 2.2 ft/s (70 cm/s) or 3 ft/s (91 cm/s). Emergency Fast Operate 3 ft/s (91 cm/s)
Gate Length	Limited only by weight
Gate Capacity	up to 5,000 lb (2,268 kg)
Operator HP	2 hp
Drive Type	Hydraulic
Pull Force	300 lb (136 kg)
UPS	Optional 230V AC Power Supply w/HyInverter AC™ provides up to 3,000 ft (914 m) of gate travel after AC power loss.*
Default Single Phase Voltages	208/230V 60/50Hz
Optional Three Phase Voltages	208/230V 60/50Hz or 380/460V 60/50Hz
Temperature Rating	-40° to 158° F (-40° to 70° C) No heater necessary.
Communication	RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory
User Controls	Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character, OLED display or a PC using S.T.A.R.T. software.
Relays	Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
App Class	Usage Class III, IV
Enclosure	n/a
Finish Type	Zinc plated with powder coating
Warranty	5 year

CLICK HERE FOR A BROCHURE CLICK HERE FOR USER MANUAL

***Custom Made; Call For Price and Availability***
